Model
TR-570

Item specifics

Power
AC220V/50HZ,
Application
Automatic Tube Cutting Machine
Feature
Stable Performance
Cutting Diameter
ø4-ø50mm

Review

Description

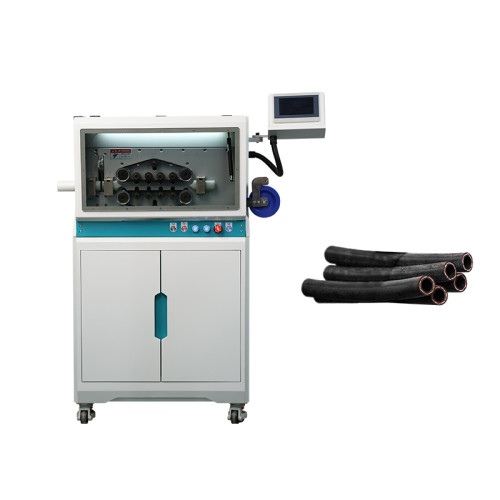

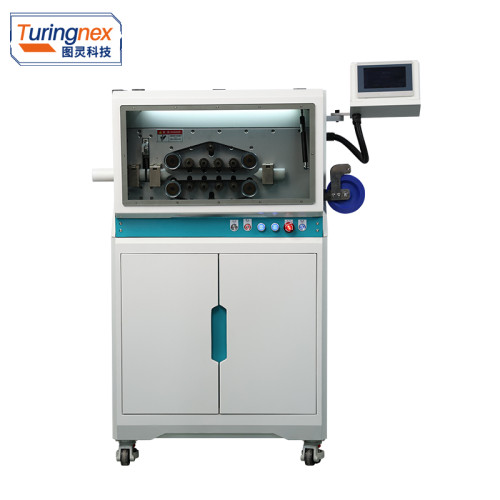

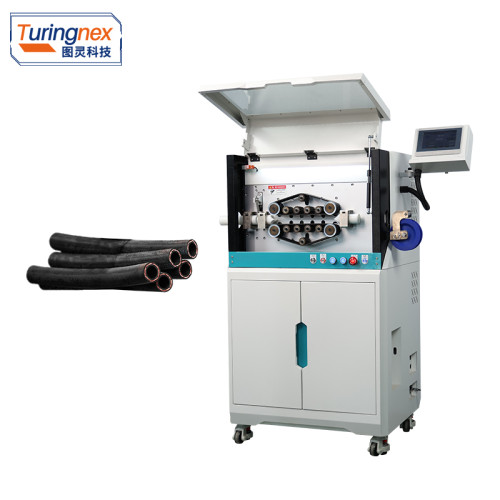

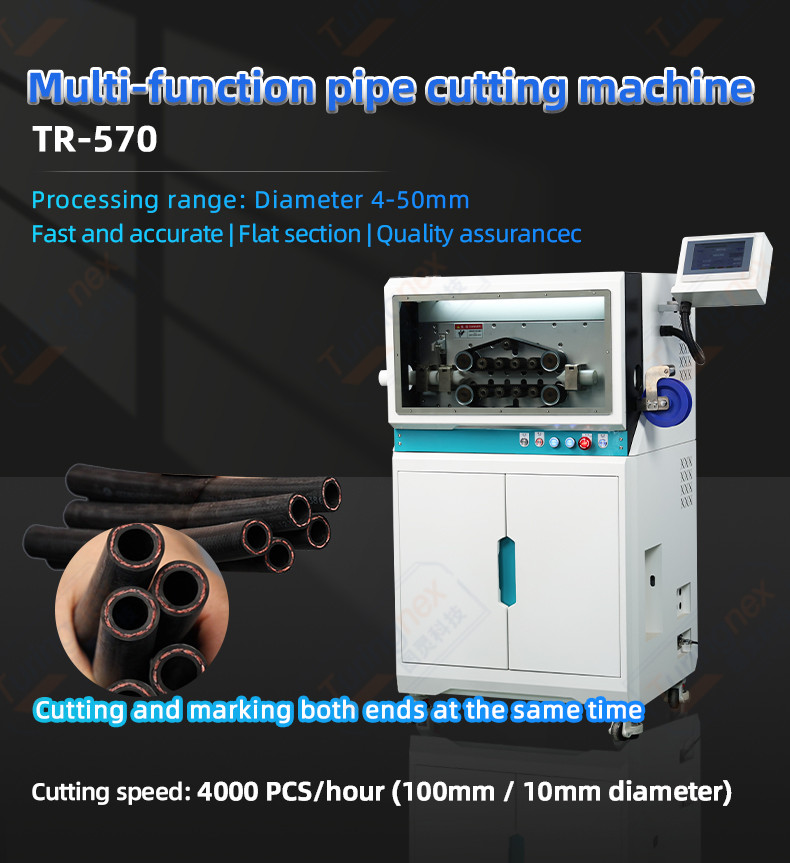

TR-570 Multi-functional Pipe Cutting Machine

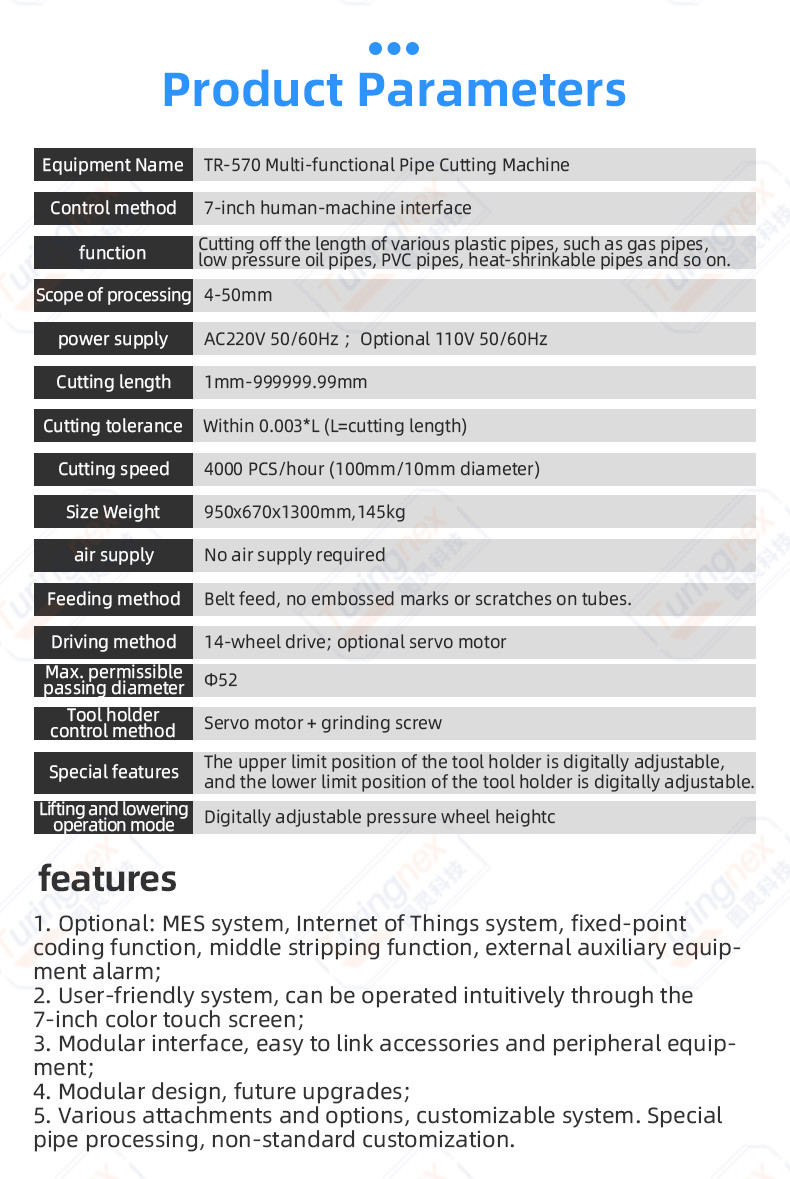

Display: 7-inch man-machine interface

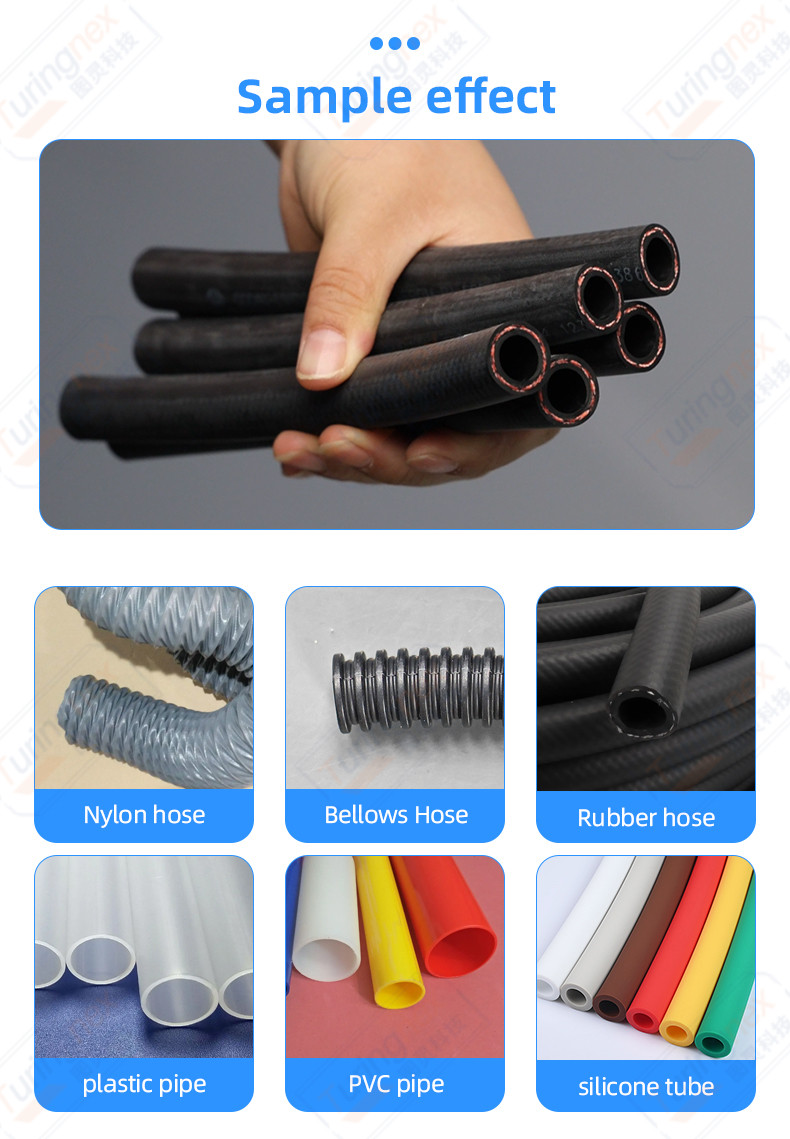

Functions: 1, gas pipe / low-pressure oil pipe / PVC pipe / heat-shrinkable pipe, and other kinds of plastic tubing cut off at a fixed length.

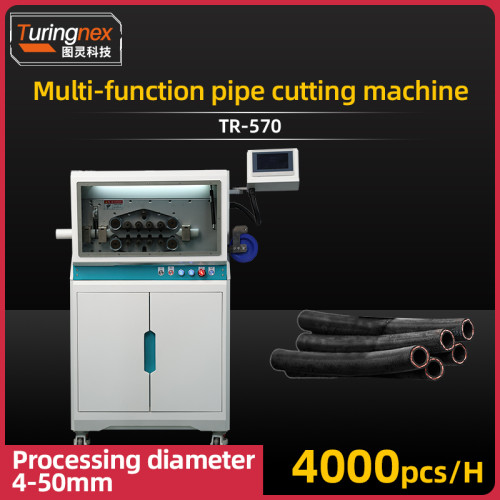

Processing range: 4-50mm
Cutting length: 1mm-999999.99mm
Cutting tolerance: within 0.003*L (L=cutting length)
Allowed to pass the maximum diameter: Φ52

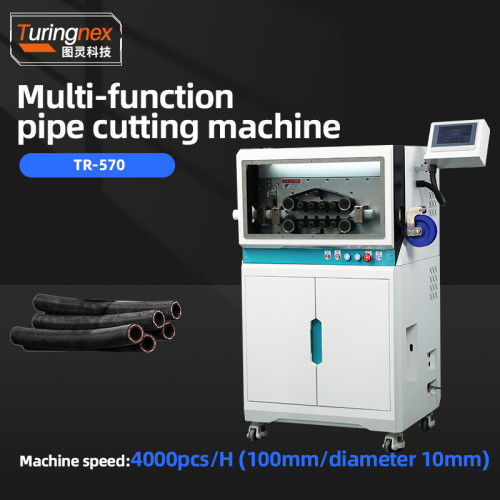

Productivity: 4000 PCS/hour (100mm/diameter 10mm)

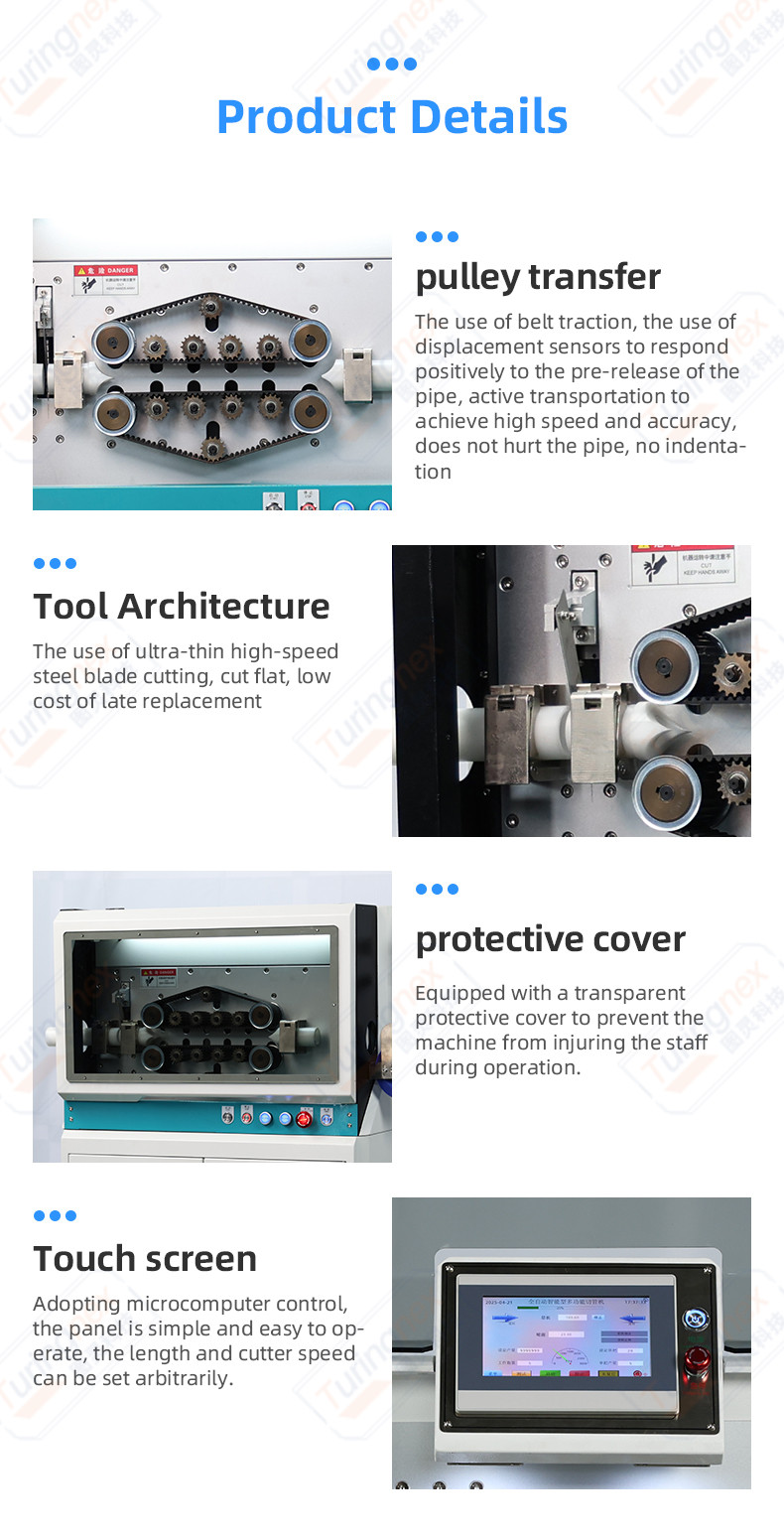

Driving mode: 14-wheel drive; servo motor can be optionally equipped
Feeding mode: belt feeding, no embossed mark and no scratches of the pipe.
Knife holder control mode: servo motor + grinding screw
Special function of the model: the upper limit position of the knife holder is digitally adjustable, the lower limit position of the knife holder is digitally adjustable
Lifting and lowering operation mode: digitally adjusting the height of the press wheel
Power supply: AC220V 50/60Hz; optional 110V 50/60Hz
Air source: no need of air source
Dimension: 950*670*1300 (LWH)
Net weight: 145kg
Translated with DeepL.com (free version)

features
1. Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary equipment alarm;
2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;
3. Modular interface, easy to link accessories and peripheral equipment;
4. Modular design, future upgrades;
5. Various attachments and options, customizable system. Special pipe processing, non-standard customization.
