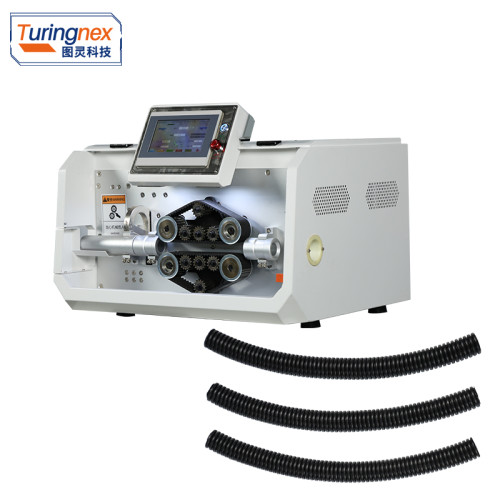

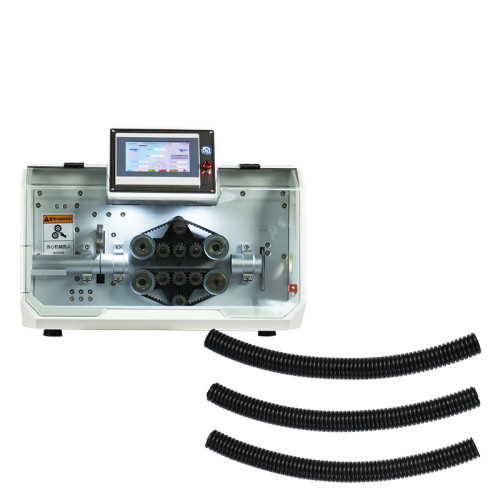

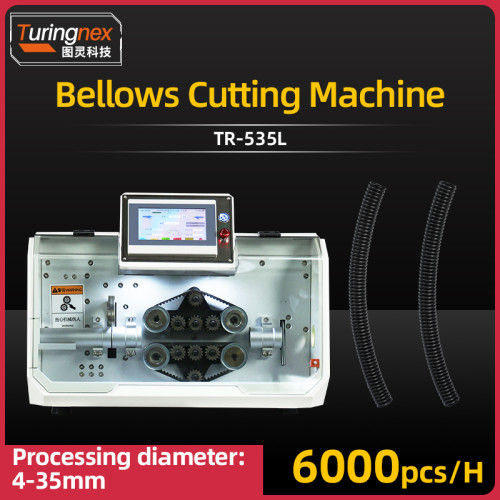

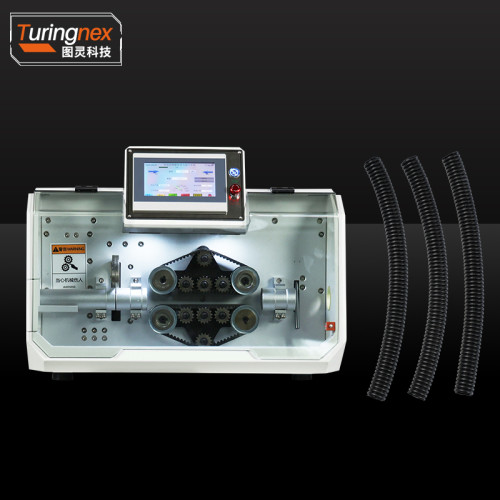

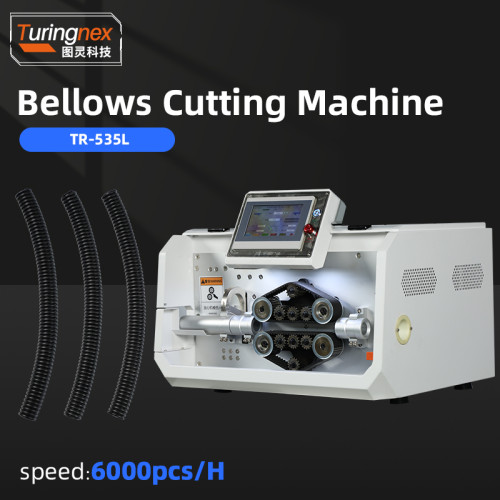

TR-535L Bellows Cutting Machine

Control: 7-inch man-machine interface

Function: corrugated pipe/PVC pipe/heat-shrinkable pipe, such as thin-walled pipe length cutting

Processing range: 4-35mm (φ35-50MM can be customized)

Power supply: AC220V50/60Hz; optional 110V 50/60Hz

Cutting length: 1mm-999999.99mm

Cutting Error: 0.005*L or less (L = cutting length) Cutting speed: 6000pcs/H Size Weight: 680x605x520mm, 70KG Air source: no air source Feeding method: belt feeding, pipe without embossing scratch (L=cutting length)

Cutting speed: 6000pcs/H

Dimensions and weight: 680x605x520mm, 70KG

Air source: no need of air source

Feeding method: belt feeding, no embossing and scratching of pipes

Driving method: 10-wheel drive; servo motors optional
