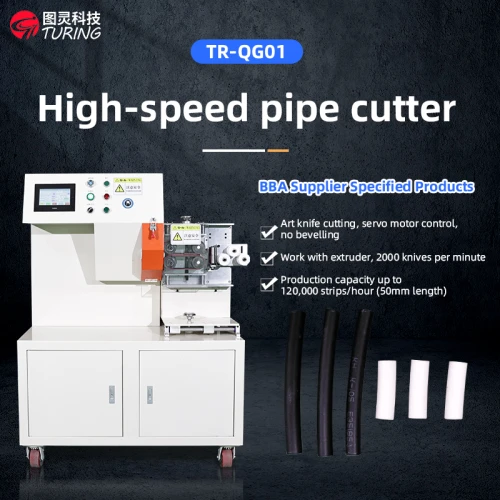

TR-QG01 Ultra-high speed automatic pipe cutting machine
- Model
- TR-QG01
Item specifics
- Power
- AC220V/50HZ,
- Application
- Automatic Tube Cutting Machine
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Coco 0086-18666170785
Review
Description

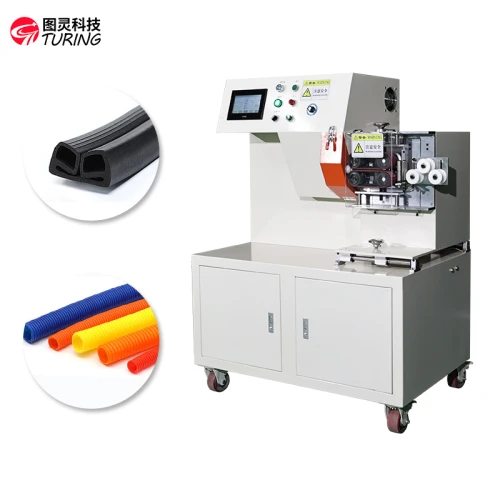

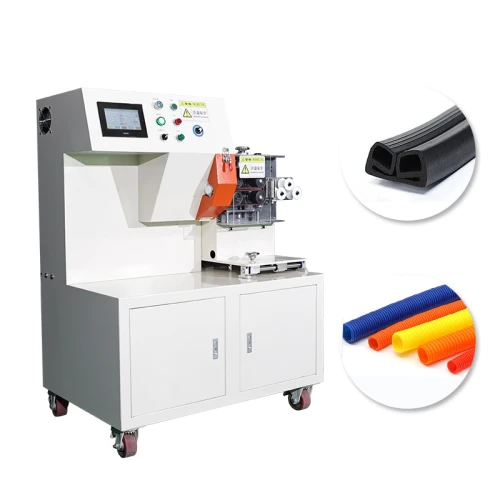

TR-QG01 Ultra-high speed automatic pipe cutting machine
Input Voltage：220V-AC
frequency：50/60Hz
power：2500W
monitor：7-inch colour TFT
Equipment Traction
Efficiency：90 metres/minute
operating method：proactive
System control method：PLC/Touch Screen
Equipment Tubing Compatibility Range：Outer diameter Φ2.5/Φ25 (optional mould cover)
Cutting material：PVC,PE,TPE,PU,Silicone,Heat Shrinkable Tube,Corrugated Tube
all soft materials (special tubing need to increase the auxiliary device)
Pipe wall thickness requirements：0.5mm or more
operating
temperature：0℃-50℃
Storage temperature：-20℃-60℃
Operating humidity：10%RH~90%RH
(no condensation)
anti-interference
capability：Interference voltage:1500Vp-p Pulse period:1us Duration:1min.
air：Non-corrosive air.
Cooling method：Forced air cooling
size：1070x700x1350mm
weight：200kg
BBASupplierSpecified Products
Art knife cutting, servo motor controlno bevelling
Work with extruder,2000 knives per minute
Production capacity up to120,000 strips/hour (50mm length)
Product Description
1. Industrial automation PLC, human-machine interface control, simple operation, stablework, high efficiency;
2. Can be directly connected to the extruder, speed synchronous frequency conversionadjustment,save labour
3. Capacity up to 50mm fixed length 120,000 strips/hour;
4. Equipment compatibility, through the replacement of die sets can achieve a variety ofspecifications pipe cutting.
Equipment features
1. The whole series is equipped withhigh-power servo motors as standardadopting electronic cam closed-loop controltechnology
to achieve high-speed,high-precision cutting, good productconsistency, and the tolerance range can becontrolled at about +1mm.
2. According to the customer's demand, we canset the output alarm prompts to realise theoperation of one person and many machines
which greatly saves the cost of manpower.
3. The cutting tool adopts the common art knifeblade on the market, with fast replacementspeed and small hardware loss,
which issimpler and more practicalthan the traditionaltool
