TR-535FP Fly cut pipe cutting machine (with dissecting function)
- Model
- TR-535FP
Item specifics
- Power
- AC220V/50HZ,
- Application
- Automatic Tube Cutting Machine
- Feature
- Stable Performance
- Warranty
- 1year
Review
Description

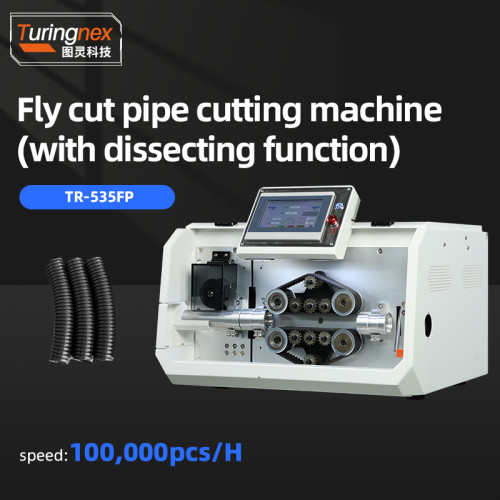

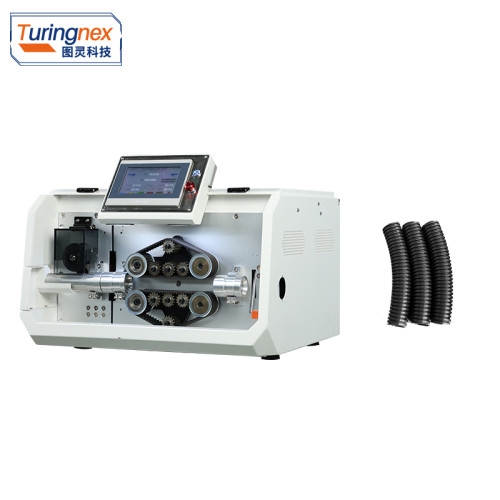

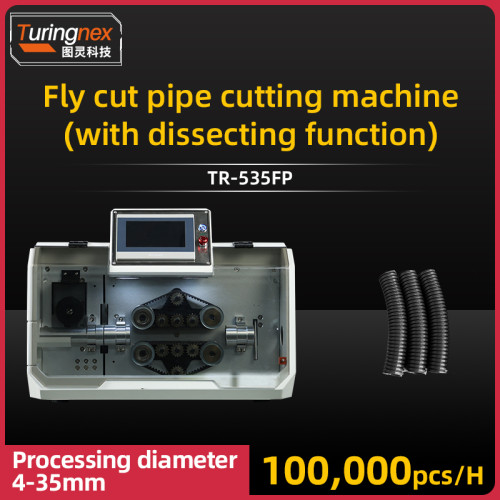

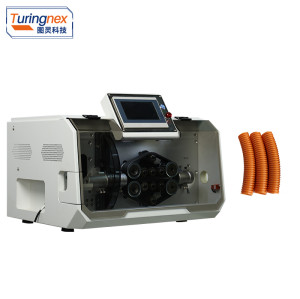

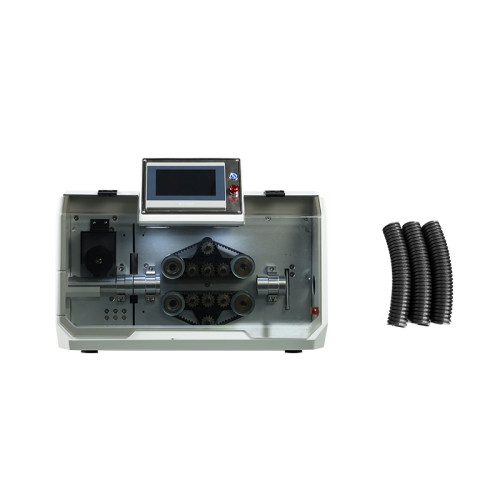

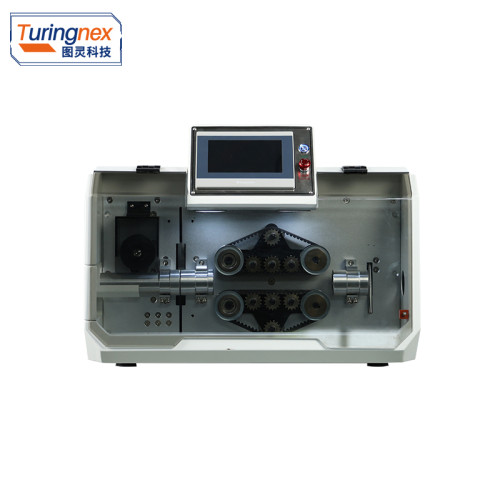

TR-535FPFly cut pipe cutting machine (with dissecting function)
Display: 7-inch man-machine interface

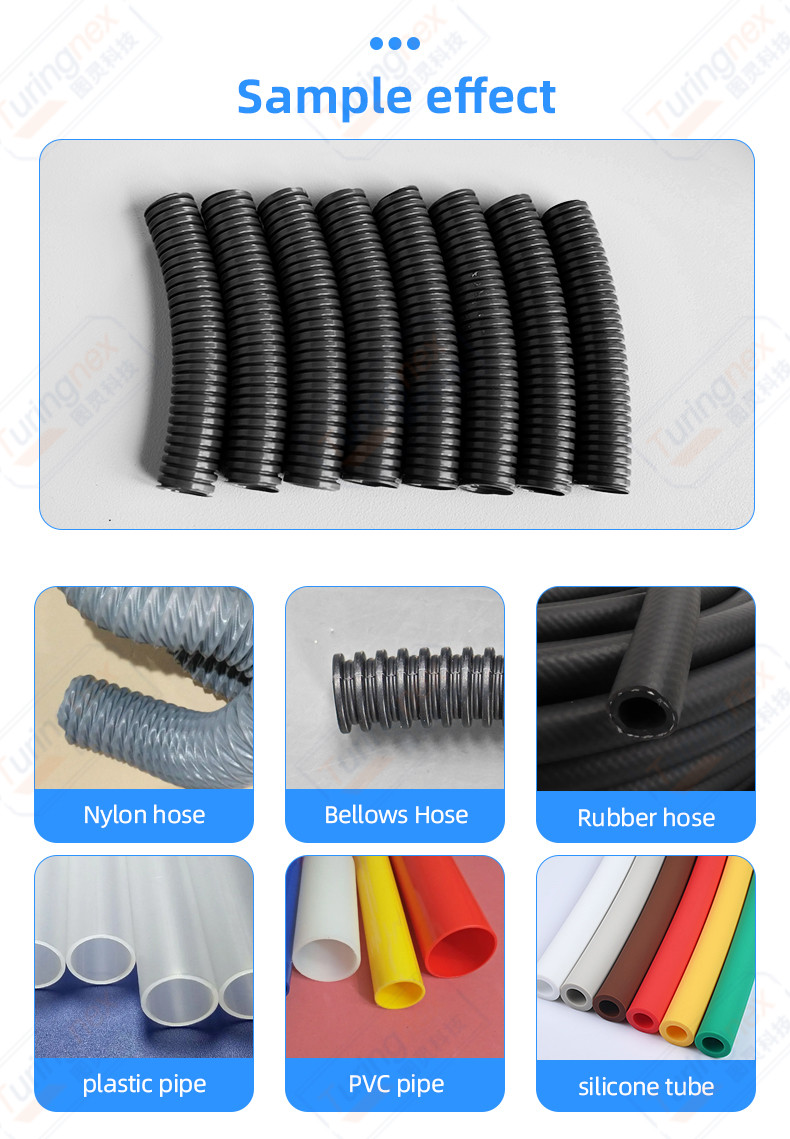

Functions: 1, corrugated pipe, PVC pipe, such as thin-walled pipe fixed length cutting and splitting; high-speed fly cutting;
2, splitting function: continuous splitting
Processing range: 4-35mm
Cutting length: 1mm-99,999,999.99mm
Cutting tolerance: 0.005 * L within (L = cutting length)
Productivity (times / hour): 100,000 / hour (according to the length and size of the pipe) (depending on the length and size of the tube)
Driving mode: 10-wheel drive; optional servo motor
Feeding mode: belt feeding, no embossing and scratching of the tube.
Lifting operation mode: digital adjustment of the height of the pressure wheel
Slitting power mode: servo motor
Slitting speed adjustment: touch screen stepless speed adjustment
Slitting adjustment mode: touch screen digital adjustment
Slitter material: tungsten steel
Power supply: AC220V 50/60Hz; optional 110V 50/60Hz
Air supply: no air supply needed
Dimensions (L*W*H): 680*605*520mm
Net weight: 80kg
