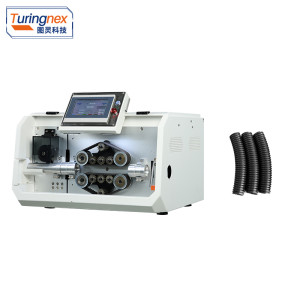

TR-583L Rotary Knife Pipe Cutting Machine
TR-583L Rotary Knife Pipe Cutting Machine
TR-583L Rotary Knife Pipe Cutting Machine
TR-583L Rotary Knife Pipe Cutting Machine
TR-583L Rotary Knife Pipe Cutting Machine
TR-583L Rotary Knife Pipe Cutting Machine

TR-583L Rotary Knife Pipe Cutting Machine

Model
TR-583L

Item specifics

Power
AC220V/50HZ,
Application
Automatic Tube Cutting Machine
Feature
Stable Performance
Cutting Diameter
ø10-ø50mm

Review

Description

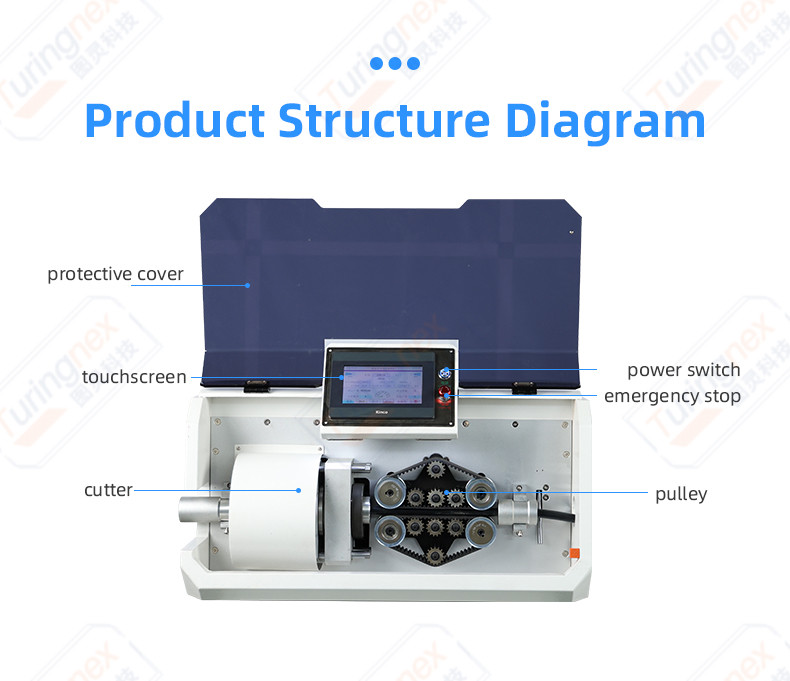

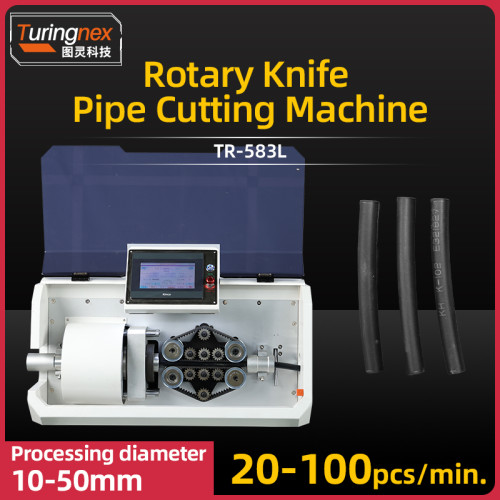

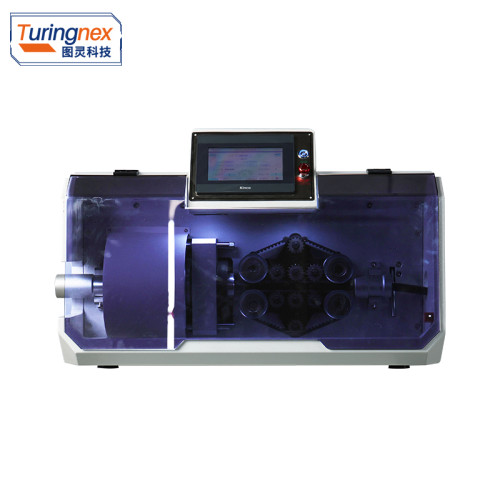

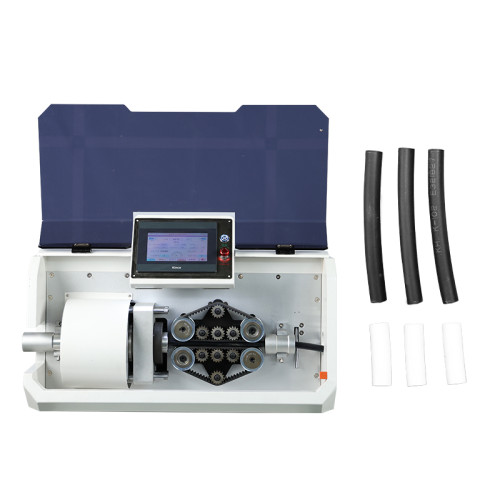

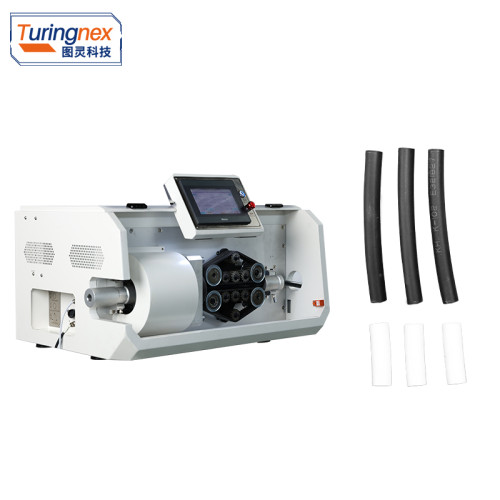

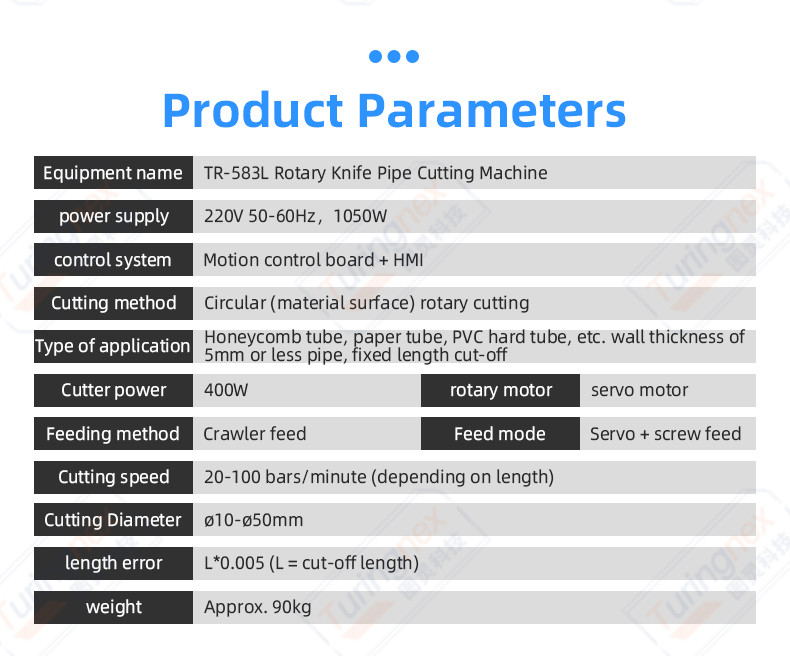

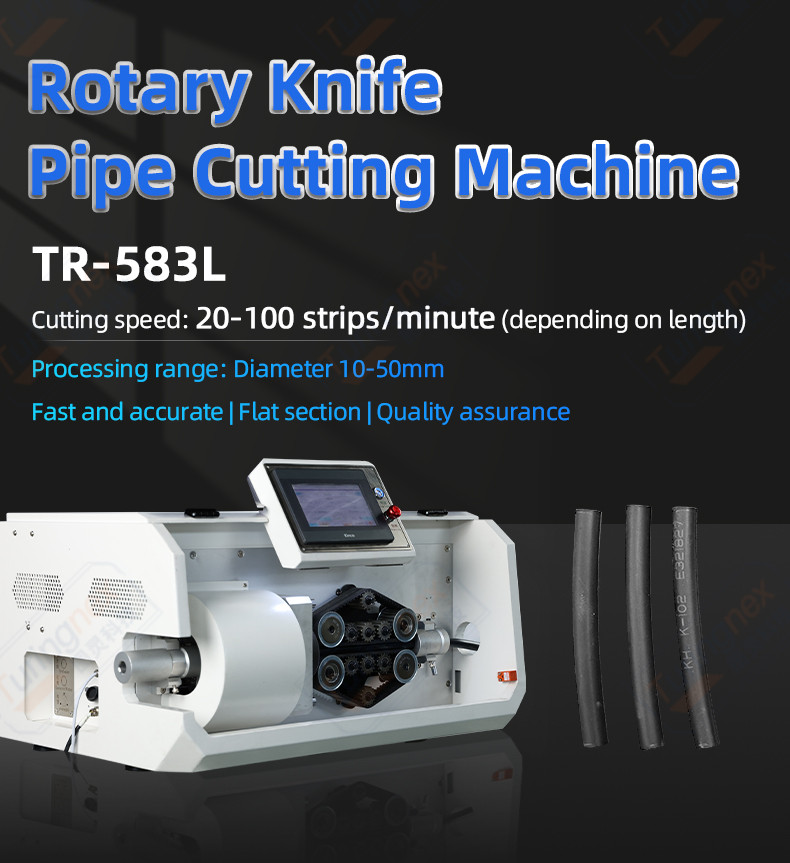

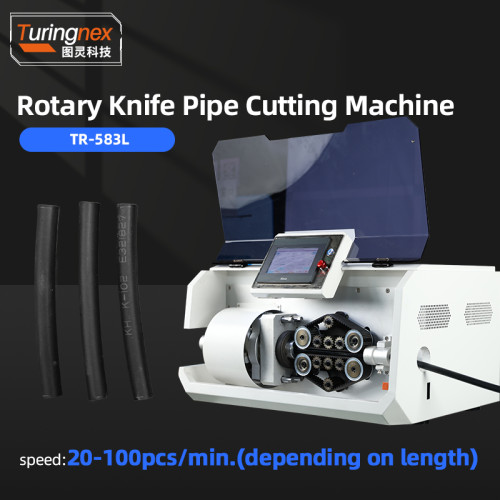

TR-583L Rotary Knife Pipe Cutting Machine
Control system: motion control board plus human-machine interface
Cutting mode: circumference (material surface) rotary cutting

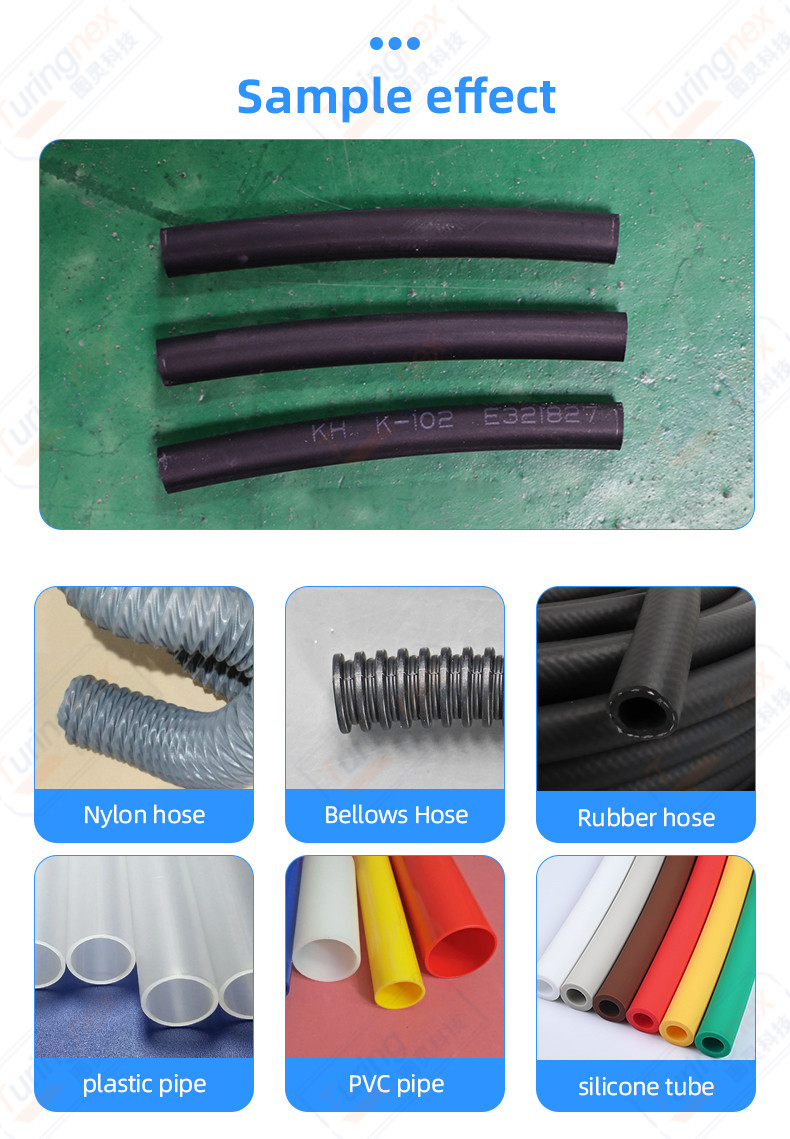

Applicable types: honeycomb pipe, paper pipe, PVC hard pipe, .... Wall thickness of 5mm or less pipe, fixed-length cutting
Cutting power: 400W
Rotary motor: servo motor

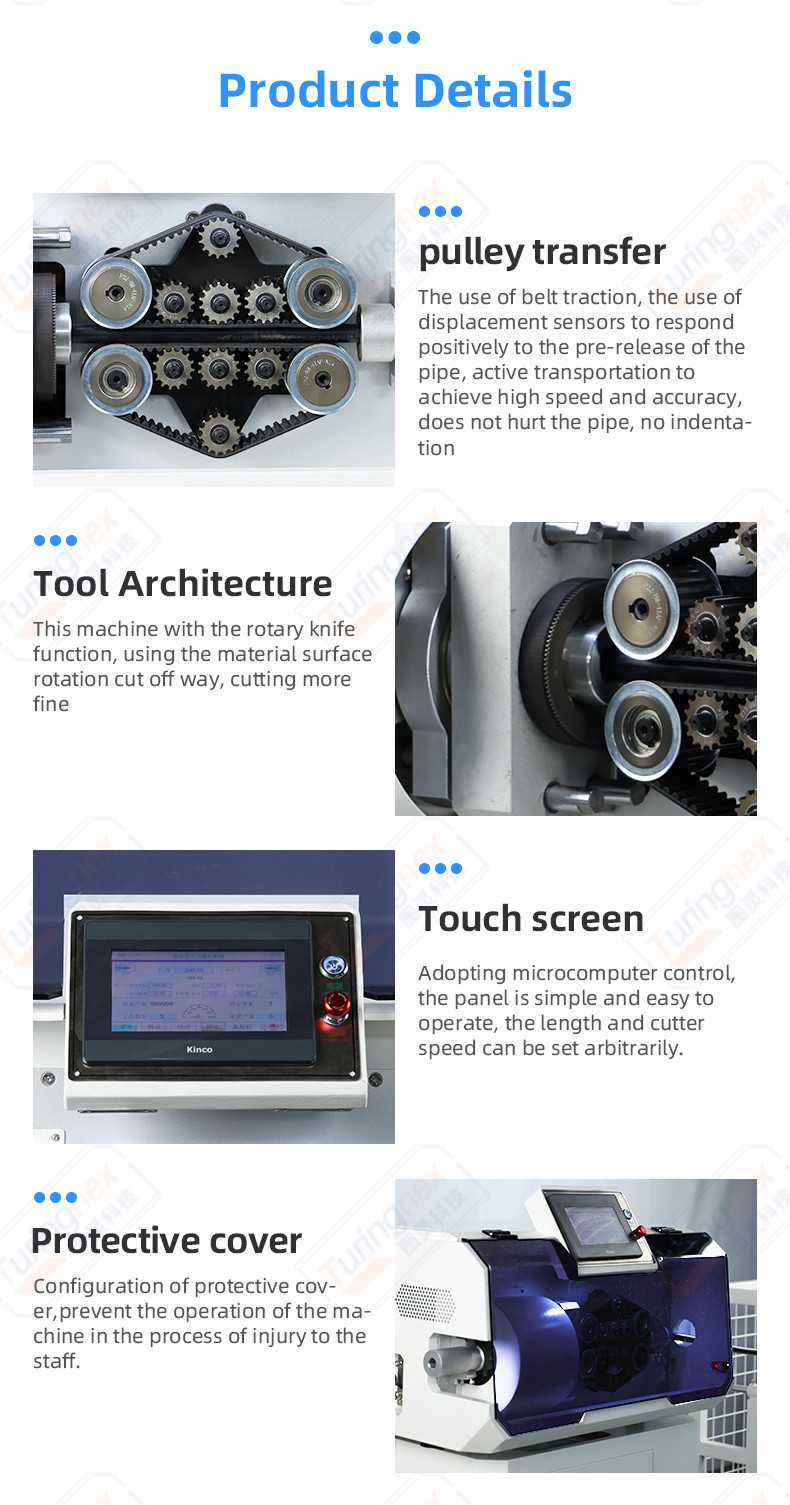

Feeding mode: crawler feeding
Knife feeding mode: servo plus screw feed
Power: 220V 50-60HZ
Air pressure: no need to
Power: 1050W
Cutting diameter: ø10-ø50mm
Length error: L*0.005 (L=cutting length)
Speed: 20-100 strips/min (depending on length) Weight: about 90Kg Speed: 20-100 strips/minute (depending on the length)
Weight: about 90Kg
