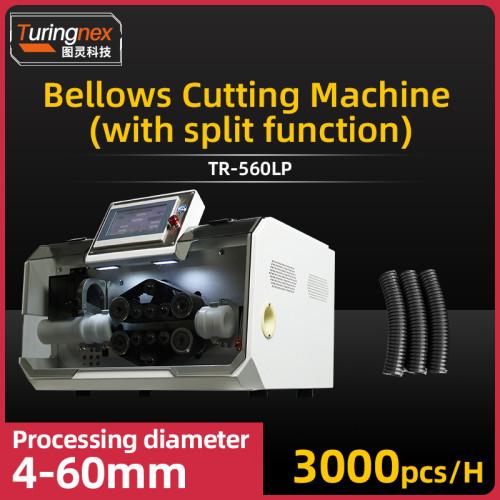

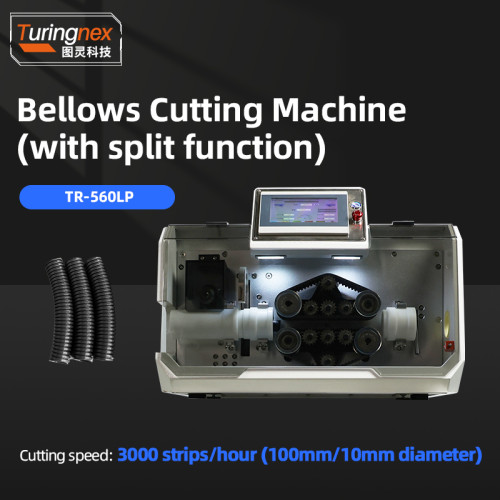

TR-560LP Bellows Cutting Machine (with split function)

Display: 7-inch man-machine interface

Functions: 1, corrugated pipe / PVC pipe / heat-shrinkable tube, such as thin-walled pipe length cutting and splitting; 2, cut open function: can be any position cut open, any length cut open, continuous cut open

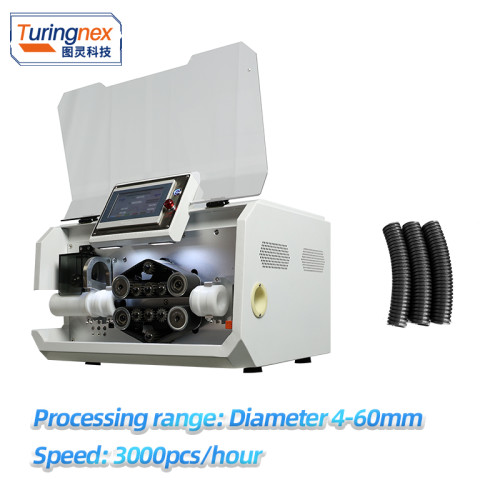

Processing range: 4-60mm

Cutting length: 1mm-99,999,999.99mm

Cutting tolerance: 0.005 * L within (L = cutting length)

Productivity (times / hour): 100,000 / hour (according to the length and size of the pipe) (depending on the length and size of the tube)

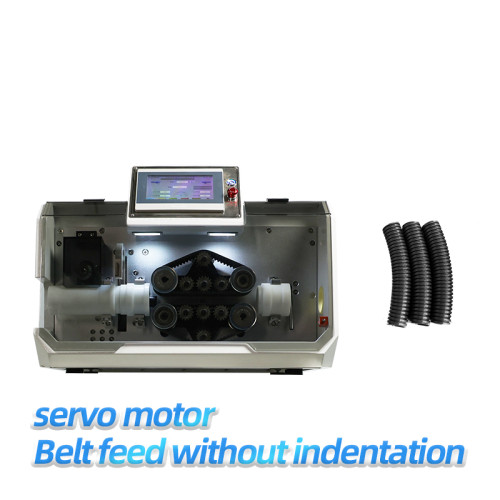

Driving mode: 10-wheel drive; optional servo motor

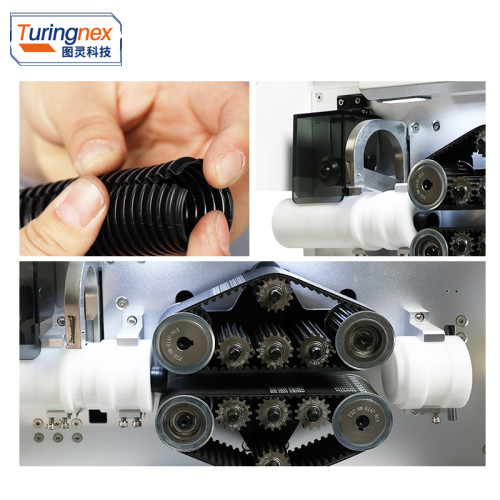

Feeding mode: belt feeding, no embossing and scratching of the tube.

Lifting operation mode: digital adjustment of the height of the pressure wheel

Slitting power mode: servo motor

Slitting speed adjustment: touch screen stepless speed adjustment

Slitting adjustment mode: Screw + Stepper Motor Digital Adjustment

Split position:1. Arbitrary position. 2. Arbitrary length. 3, Continuous dissections.

Power supply: AC220V 50/60Hz; optional 110V 50/60Hz

Air supply: no air supply needed

Dimensions (L*W*H):680x480x550mm

Net weight: 90kg
