TR-535F Fly cut pipe cutting machine
- Model
- TR-535F
Item specifics
- Power
- AC220V/50HZ,
- Application
- Automatic Tube Cutting Machine
- Feature
- Stable Performance
- Warranty
- 1year
Review
Description

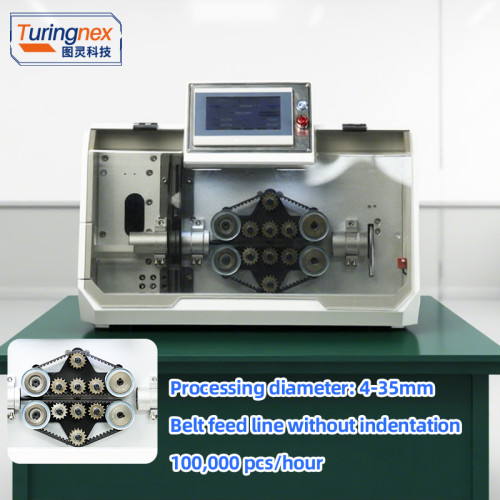

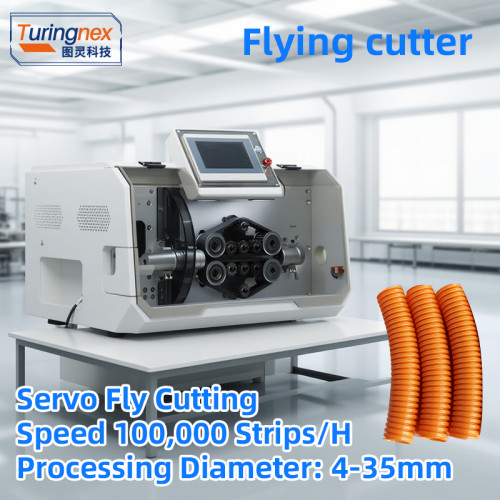

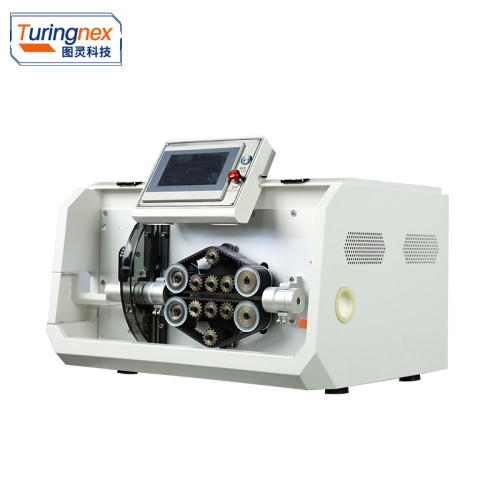

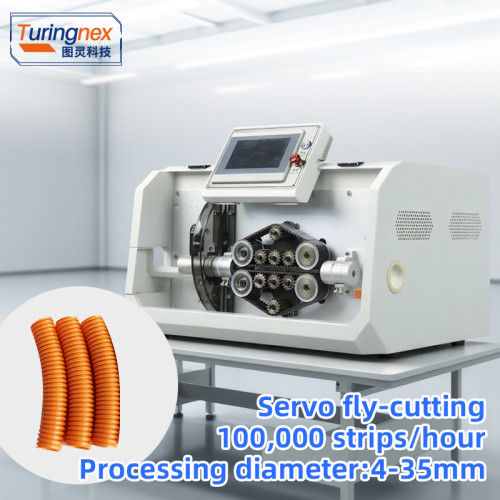

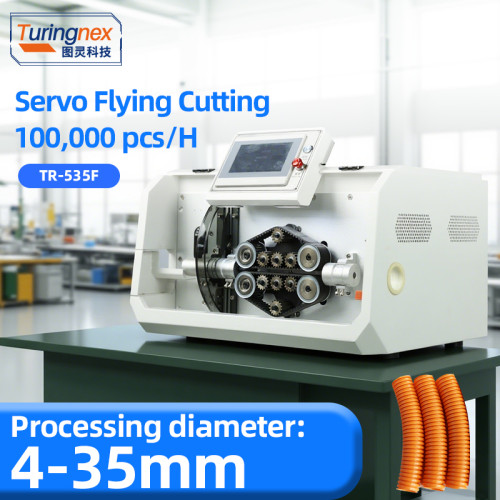

TR-535F Fly cut pipe cutting machine
Display: 7-inch man-machine interface
Functions: corrugated pipe/PVC pipe/heat-shrinkable pipe, and other thin-walled pipe cutting at fixed length; high-speed fly cutting;
Processing range: 4-35mm
Cutting length: 1mm-99,999,999.99mm
Cutting tolerance: 0.005*L or less (L=cutting length)
Productivity (times/hour): 100,000 strips/hour (according to the length of the pipe, the size depends on)
Driving mode : 10-wheel drive; optional servo motor
Feeding method: belt feeding, no embossing and scratching of the tube.
Lifting operation mode: digital adjustment of the height of the press wheel
Power supply: AC220V 50/60Hz; optional 110V 50/60Hz
Air source: no air source required
Dimensions (L*W*H): 680*605*520mm
Net weight: 75kg
