TR-560L Bellows Cutting Machine
TR-560L Bellows Cutting Machine
TR-560L Bellows Cutting Machine
TR-560L Bellows Cutting Machine
TR-560L Bellows Cutting Machine
TR-560L Bellows Cutting Machine

TR-560L Bellows Cutting Machine

Model
TR-560L

Item specifics

Power
AC220V/50HZ,
Application
Automatic Tube Cutting Machine
Feature
Stable Performance
Warranty
1year

Review

Description

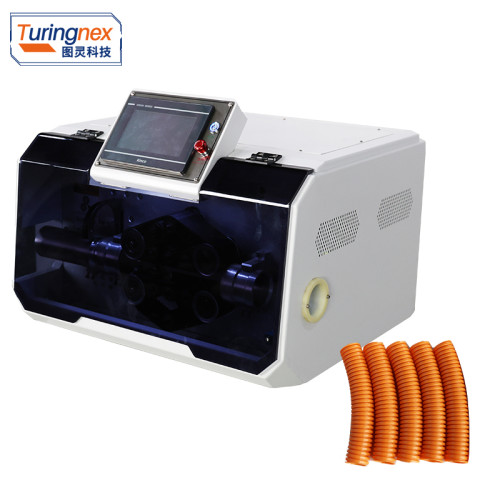

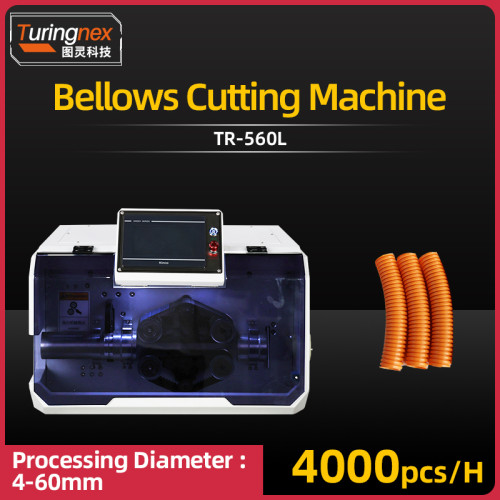

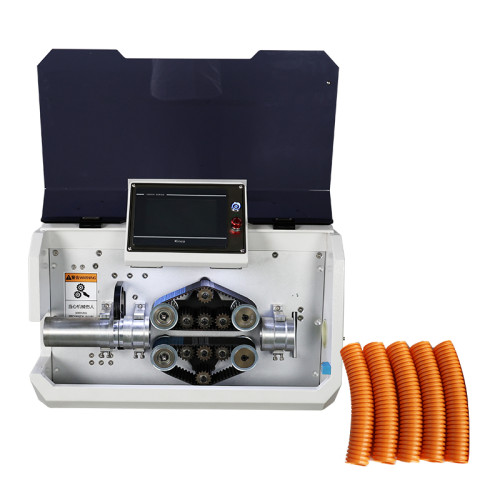

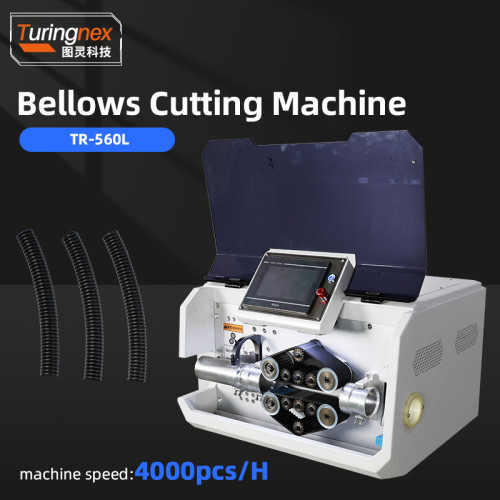

TR-560L Bellows Cutting Machine
Control: 7-inch man-machine interface

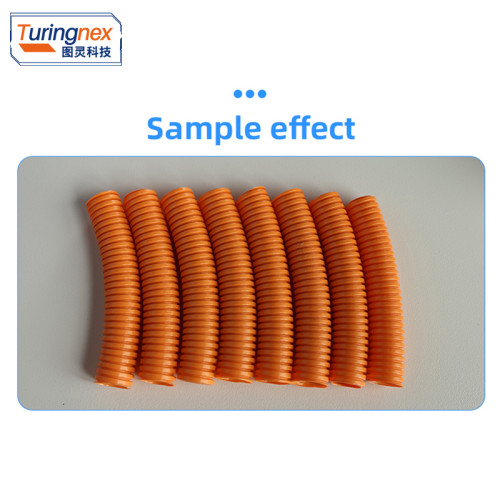

Function: corrugated pipe/PVC pipe/heat-shrinkable pipe, such as thin-walled pipe length cutting
Processing range: 4-60mm
Power supply: AC220V50/60Hz; optional 110V 50/60Hz
Cutting length: 1mm-999999.99mm
Cutting Error: Within 0.005*L (L=cutting length)
Air source: 0.5-0.7Mpa
Feeding method: Belt feed, no embossed marks or scratches on tubes.
Cutting speed: 4000pcs/H
Dimensions and weight: 680x605x520mm, 80KG
Driving method: 10-wheel drive; servo motors optional
