Model
TR-603Z

Item specifics

Power
AC220/110V/60HZ/50HZ
Name
wire cutting machine
Cutting length
1-999999.99mm
Scope of processing
0.75-30mm²
Contact
CoCo +86 18666170785

Review

Description

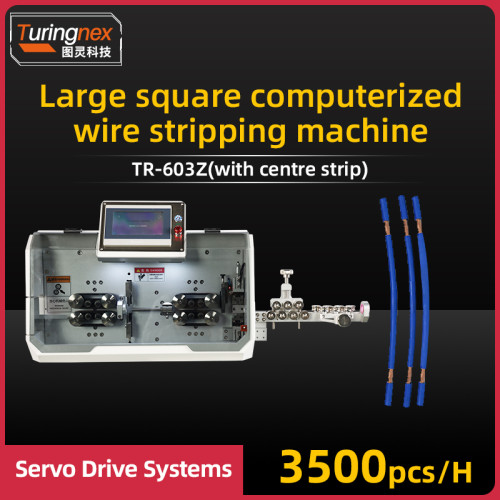

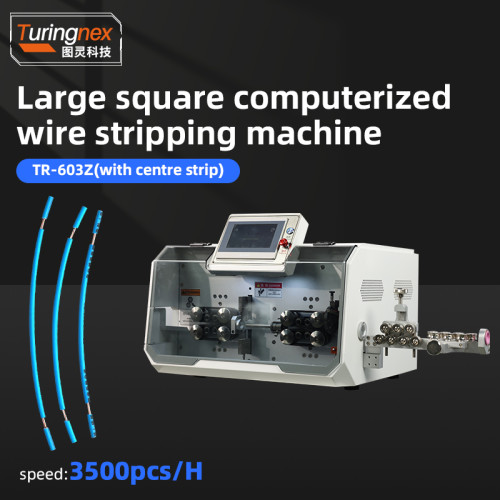

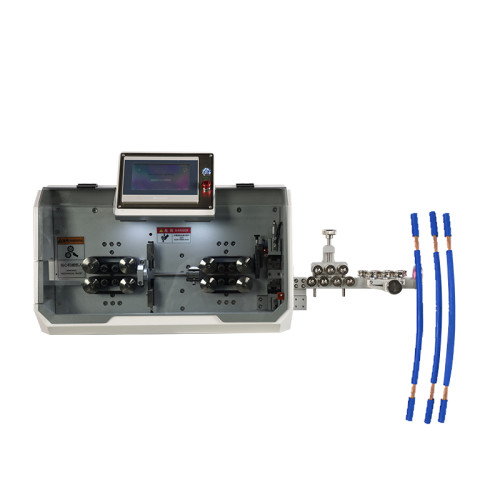

TR-603Z Large Square Computerized Wire Stripping Machine

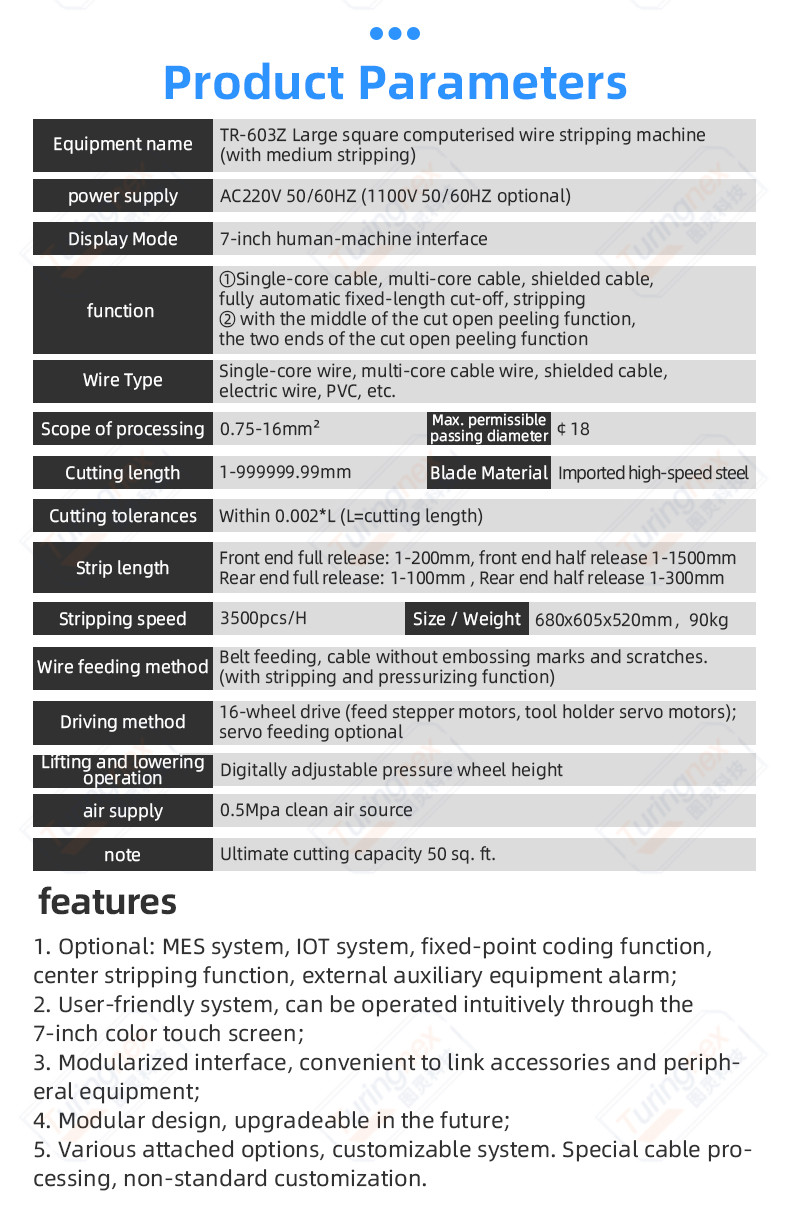

Power supply: AC220V 50/60HZ (optional 1100V 50/60HZ)
Display: 7-inch man-machine interface

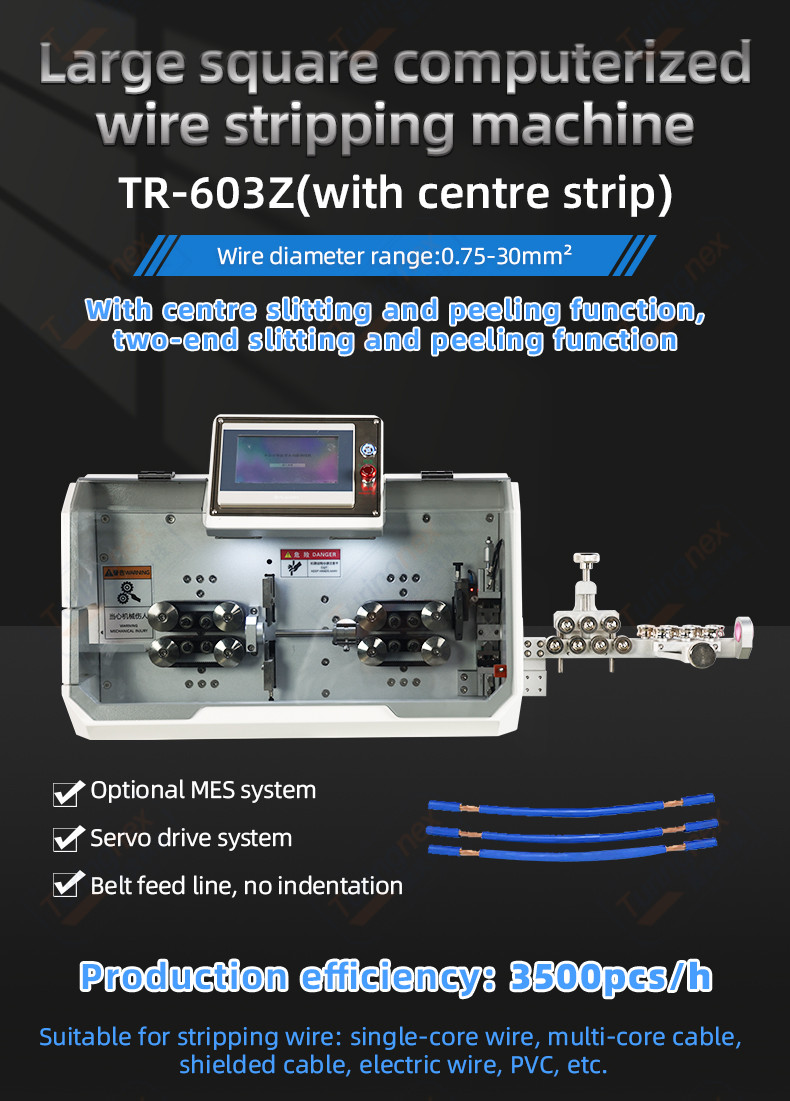

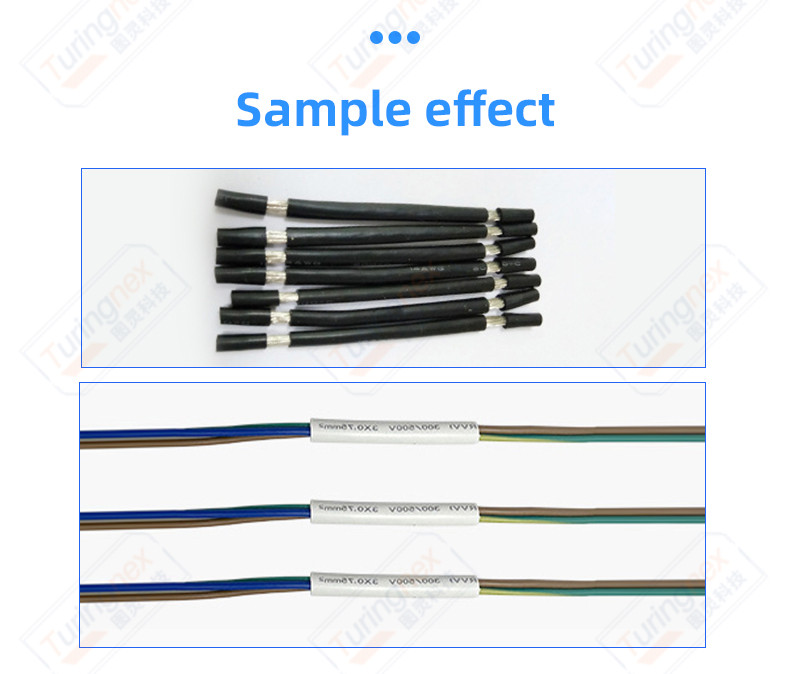

Functions: ① single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting, stripping
 ② with the middle of the cut open stripping function, the two ends of the cut open stripping function
Type of conductor: single-core wire, multi-core cable, shielded cables, wires, PVC, etc.
Processing range: 0.75- 30mm² Cutting length: 1-999999.99mm Cutting tolerance: 0.002*L or less (L=cutting length) 30mm²
Cutting length: 1-999999.99mm
Cutting tolerance: 0.002*L or less (L=cutting length)
Stripping length: front end fully stripped: 1-200mm, front end half stripped 1-1500mm
 Rear end fully stripped: 1-100mm, rear end half stripped 1-300mm
Stripping speed: 3500PCS/hour (according to the length of the wire, the size of the wire to be determined)
Feed wire Method: Belt feeding, no embossed marks and scratches on the cables. (with stripping and pressurising function)
Driving method: 24 wheels drive (feeding stepping motor, knife holder servo motor)
Lifting operation method: digital adjustment of the height of the pressure wheel
Dimensions and weight: 680x605x520mm, 90kg
Allowable through the maximum diameter: 18mm
Blade material: imported high-speed steel
Air source: 0.5Mpa clean air source

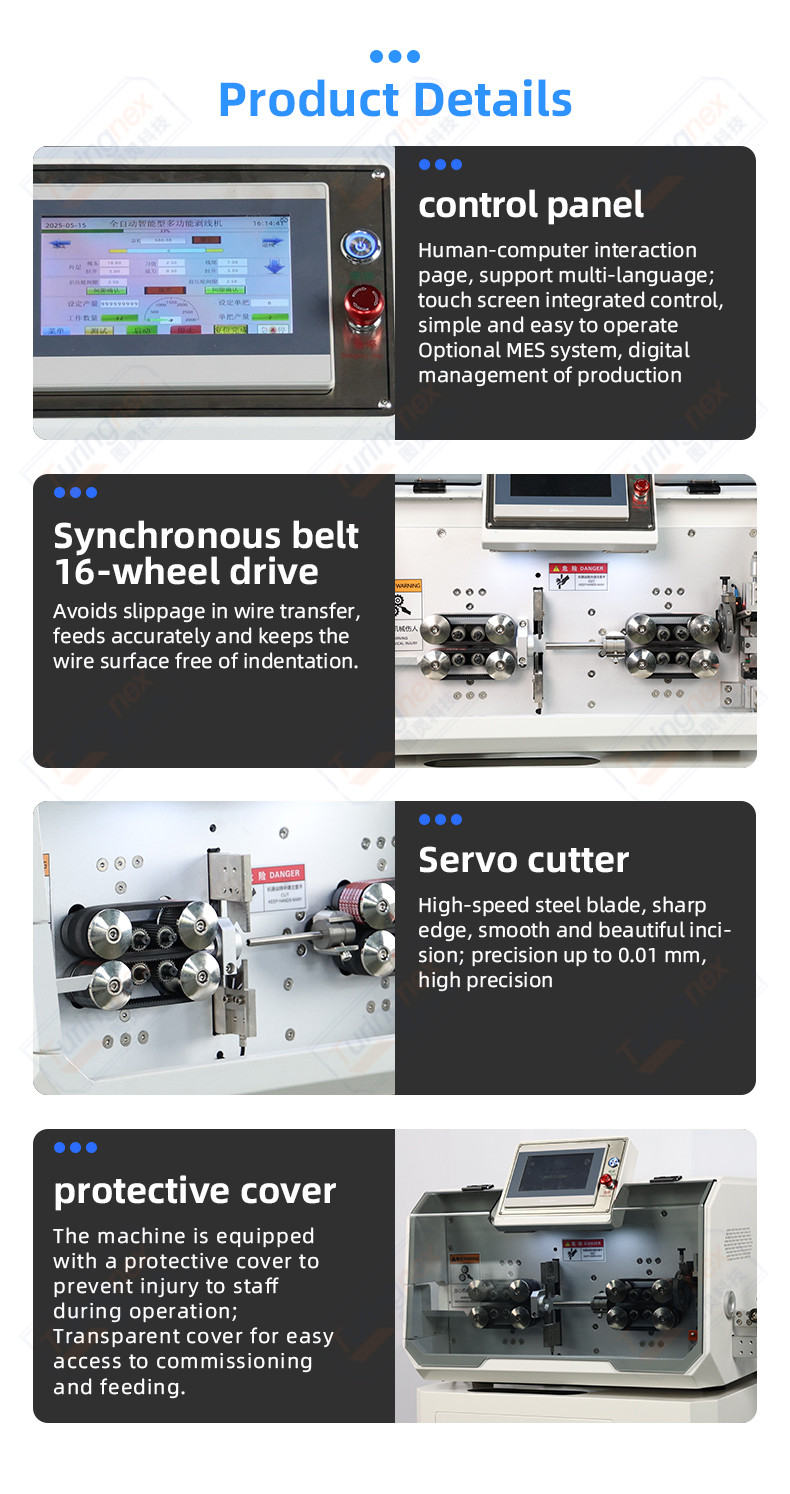

features
1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;
2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;
3. Modularized interface, convenient to link accessories and peripheral equipment;
4. Modular design, upgradeable in the future;
5. Various attached options, customizable system. Special cable processing, non-standard customization.
