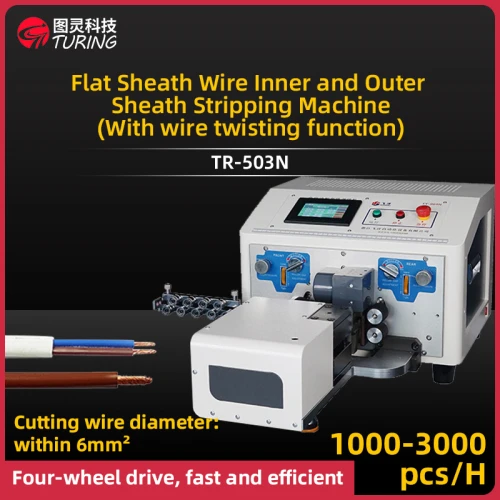

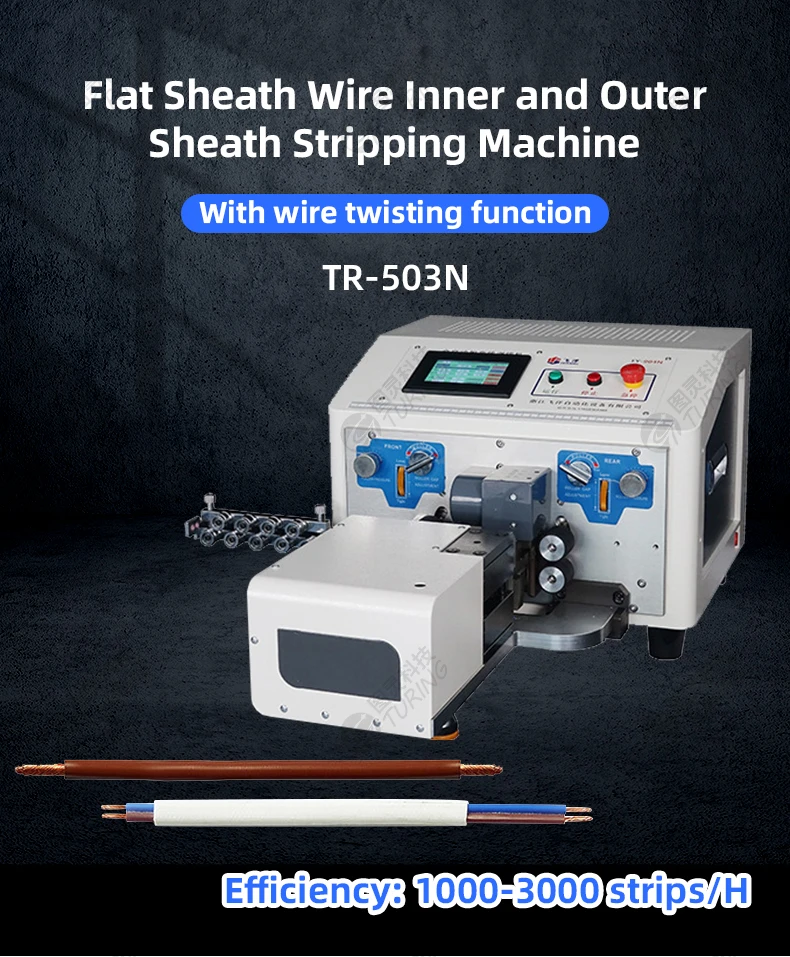

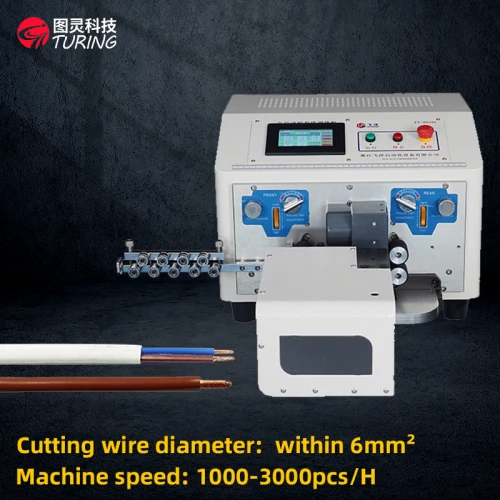

TR-503N flat sheathed wire inner and outer belt twisting computer wire stripping machine
- Model
- TR-503N
Item specifics
- Power
- AC220V/50HZ,
- Name
- wire stripping machine
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Lily 0086-13715588365
Review
Description

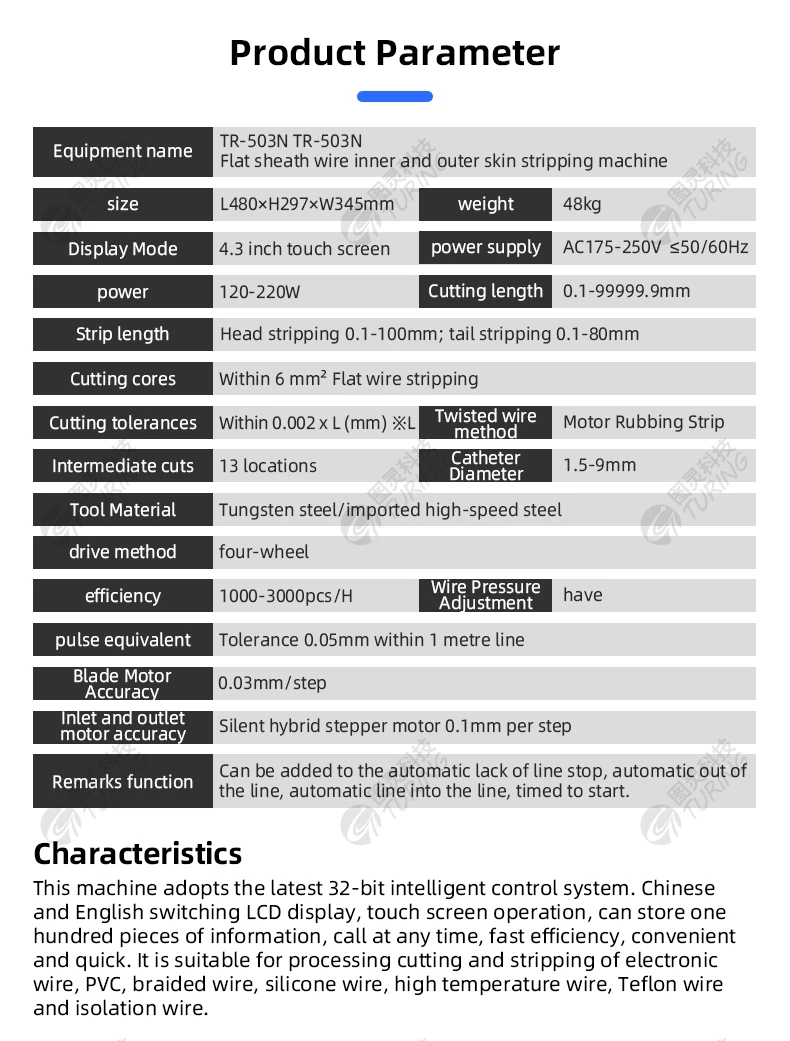

TR-503N flat sheathed wire inner and outer belt twisting computer wire stripping machine
size & weight：L480×H297×W345mm，48kg
Display Mode：4.3 inch touch screen
power supply：AC175-250V ≤50/60Hz
power：120-220W
Cutting length：0.1-99999.9mm
Strip length：Head stripping 0.1-100mm; tail stripping 0.1-80mm
Cutting cores：Within 6 mm² Flat wire stripping
Cutting tolerances：Within 0.002 x L (mm) ※L
Twisted wire method：Motor Rubbing Strip
Intermediate cuts：13 locations
Catheter Diameter：1.5-9mm

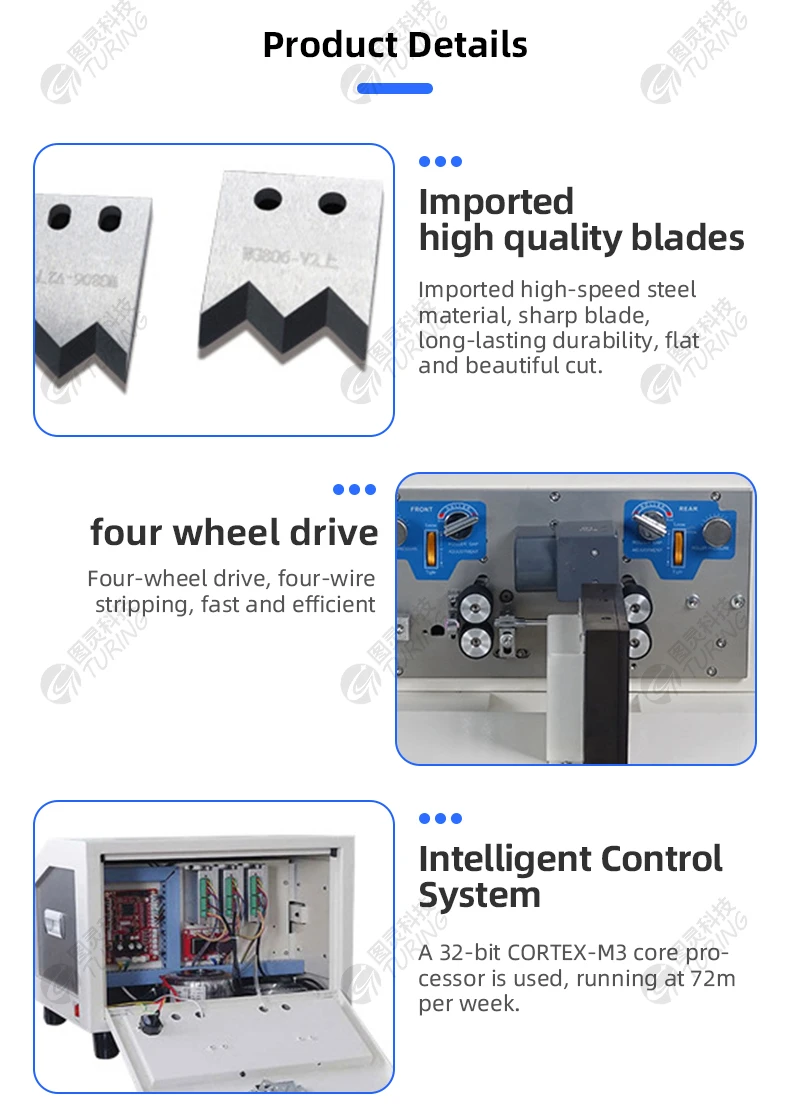

Tool Material：Tungsten steel/imported high-speed steel
drive method：four-wheel
efficiency：1000-3000pcs/H
Wire Pressure Adjustment：have
pulse equivalent：Tolerance 0.05mm within 1 metre line
Blade Motor Accuracy：0.03mm/step
Inlet and outlet motor accuracy：Silent hybrid stepper motor 0.1mm per step
Remarks function：Can be added to the automatic lack of line stop,automatic out of the line, automatic line into the line, timed to start.
Characteristics

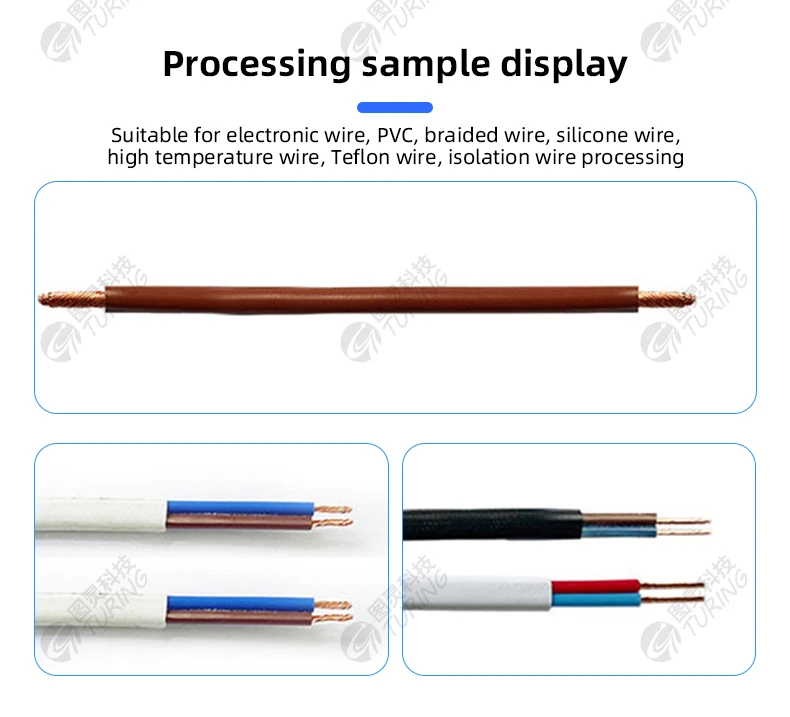

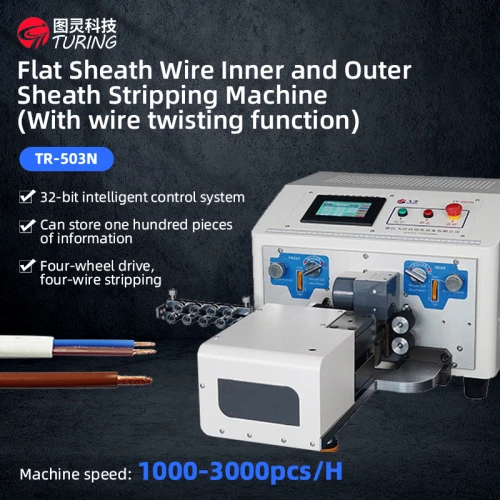

This machine adopts the latest 32-bit intelligent control system. Chineseand English switching LcD display, touch screen operation, can store onehundred pieces of information, call at any time, fast efficiency, convenientand quick. lt is suitable for processing cutting and stripping of electronicwire, PVc, braided wire, silicone wire, high temperature wire, Teflon wire and isolation wire.
