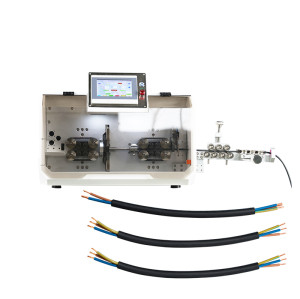

TR-880H fully automatic sheathed core wire integrated machine
- Model
- TR-880H
Item specifics
- Power
- AC220V/50HZ,
- Name
- wire stripping machine
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Coco 0086-18666170785
Review
Description
TR-880H fully automatic sheathed core wire integrated machine
Display Mode:10 inch LCD touch screen
Rating power:0.75kW
Size&weight:945x615x1270mm,248kg
Power supply:AC220V/110V 50/60Hz
Pneumatic:0.4~0.6Mpa
Cutting length:0.1-100000mm
Core processing:Inner core wire 1-6 pcs
Length accuracy:±（0.2+0.002L）mm
Processing Diameter:2-15 OD/10 or more customised
Wire Type:Multi-core round sheathed wire, flat sheathed wire
Core wire stripping length:Multi-core round sheathed wire, flat sheathed wire
Outer skin peeling length:Wire head: front 200mm; wire tail: back end 150mm
Drive method:Belt feed, eight-wheel drive, precision servo motor drive
Characteristics
1. This machine is mainly for round sheathed cable, flat sheathed cable peeling corewire processing, can achieve automatic cut off the tail, peeling the outer skin, peel-ing the inner core skin function.
2. Adopting belt wheel to feed the wire, large contact area, high precision, no sur-face indentation.
3. Adopt servo drive, subdividing way to control the length, small error.
4. Display mode: touch screen interface, 10-inch touch screen, Chinese and Englishcan be switched.
5.Operation mode: it can realise semi-automatic manual operation of length mea.surement, cutting, multi-layer peeling, middle peeling and automatic note produc-tion, which is easy to operate, thus greatlyimproving the efficiency;
6. The machine is powerful, reserved for a number of ports, for supporting someauxiliary equipment input and output devices.
7. Auxiliary equipment: automatic wire feeder, take-up machine, robot, windingmachine and so on.
