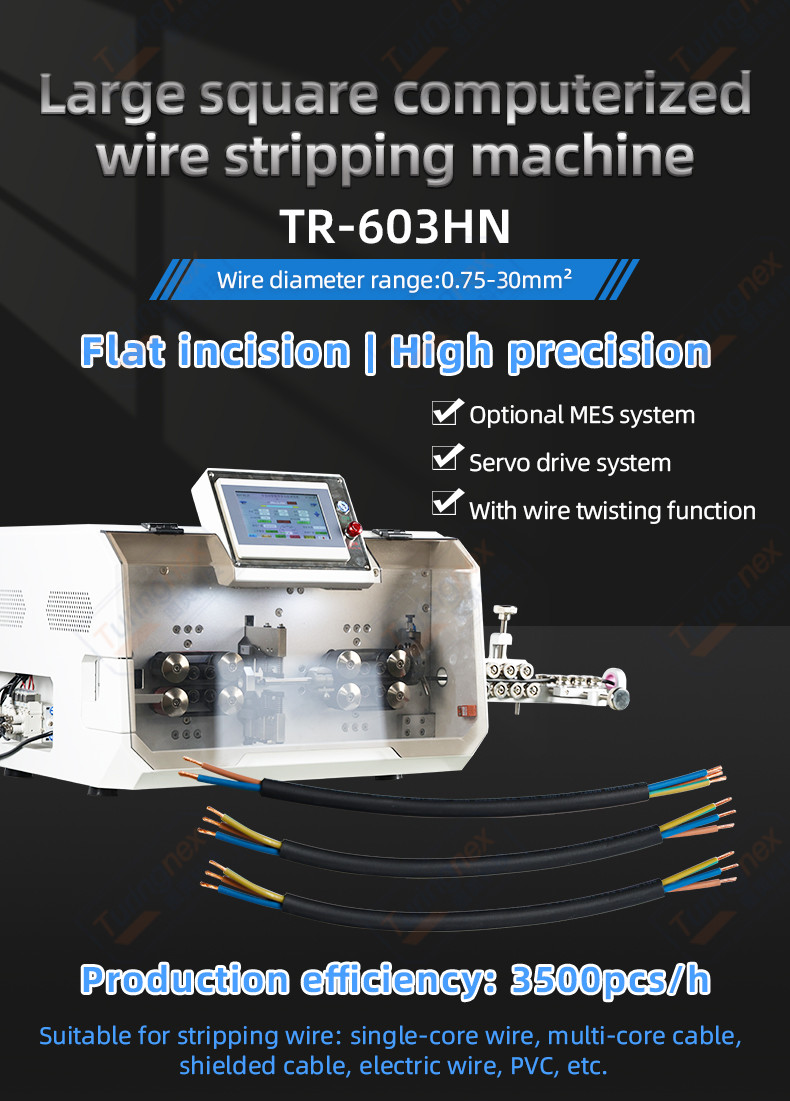

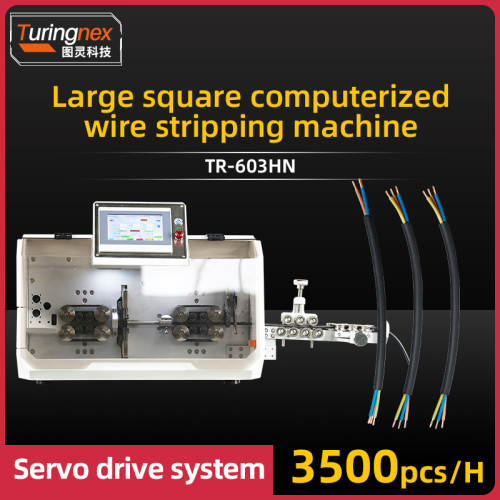

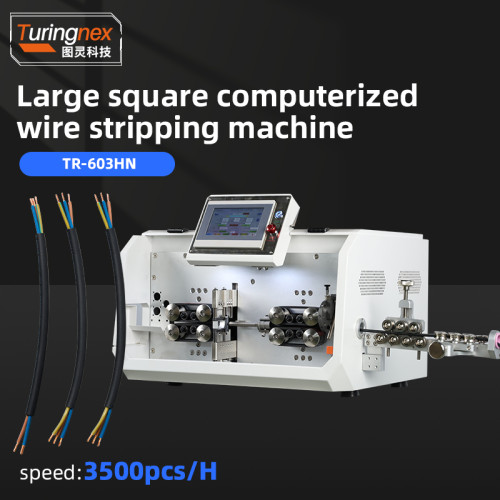

TR-603HN Large Square Computerized Wire Stripping Machine
- Model
- TR-603HN
Item specifics
- Power
- AC220/110V/60HZ/50HZ
- Name
- wire cutting machine
- Cutting length
- 1-999999.99mm
- Scope of processing
- 0.75-30mm²
- Contact
- CoCo +86 18666170785
Review
Description

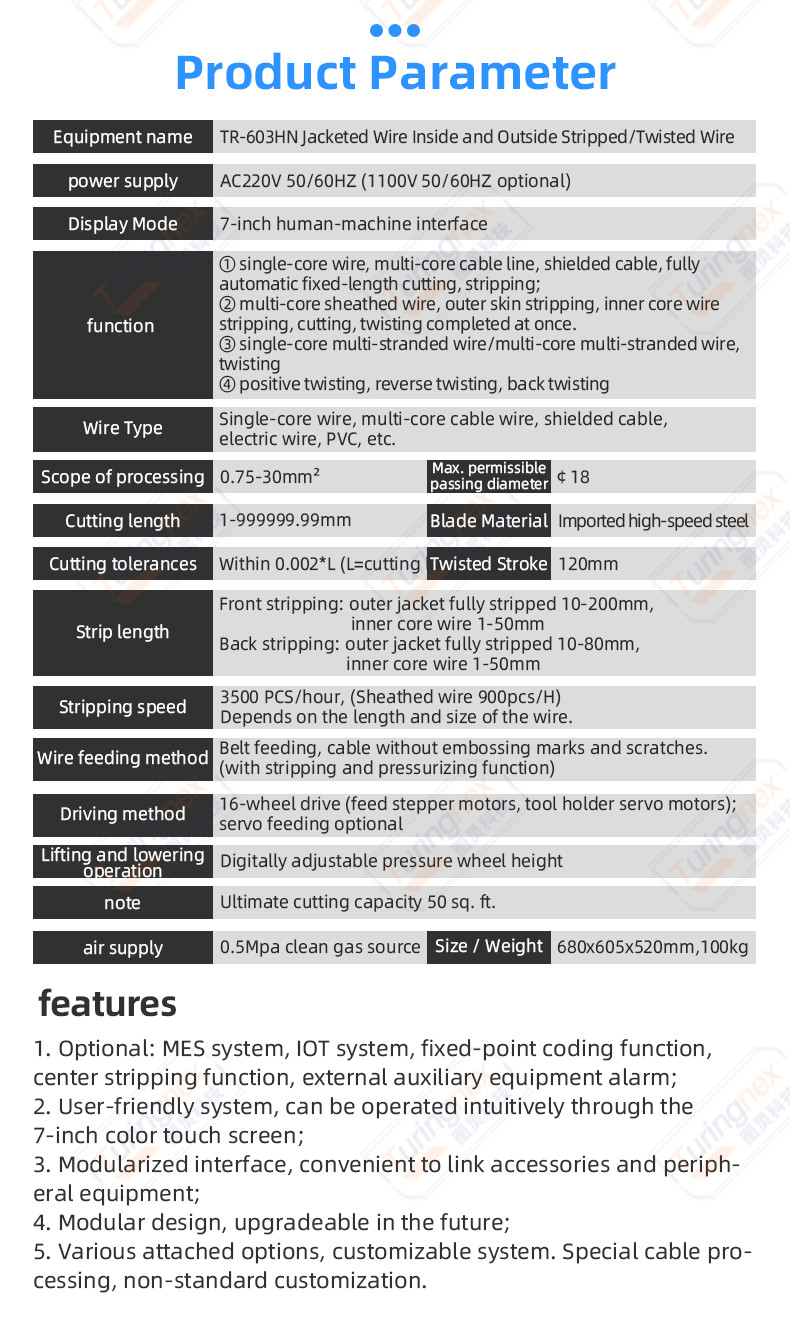

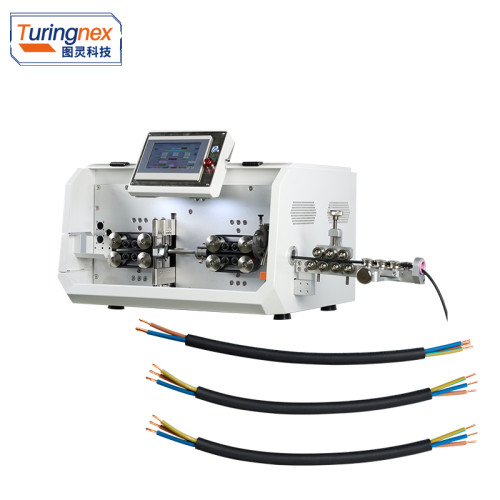

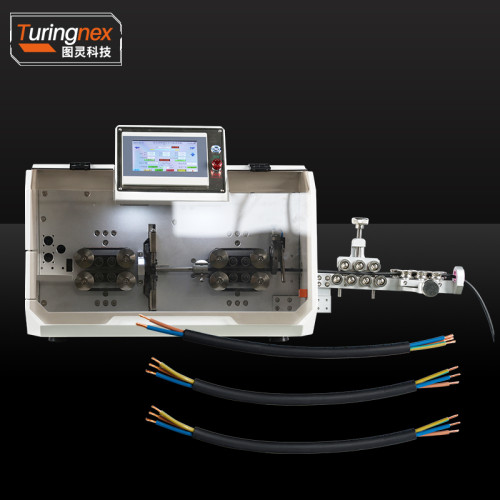

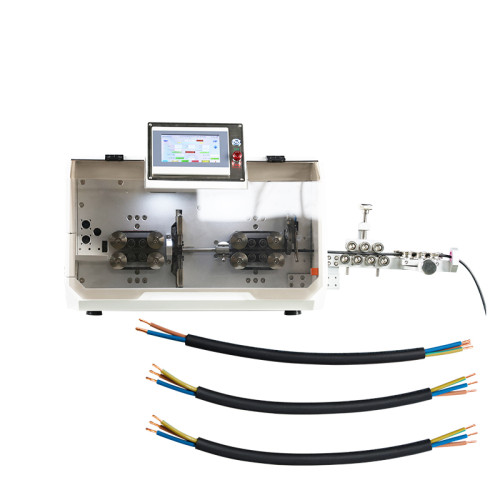

TR-603HN Large Square Computerized Wire Stripping Machine
power supply：AC220V 50/60HZ (1100V 50/60HZ optional)
Display Mode：7-inch human-machine interface
Size / Weight：680x605x520mm,100kg
function ：① single-core wire, multi-core cable line, shielded cable, fully automatic fixed-length cutting, stripping;

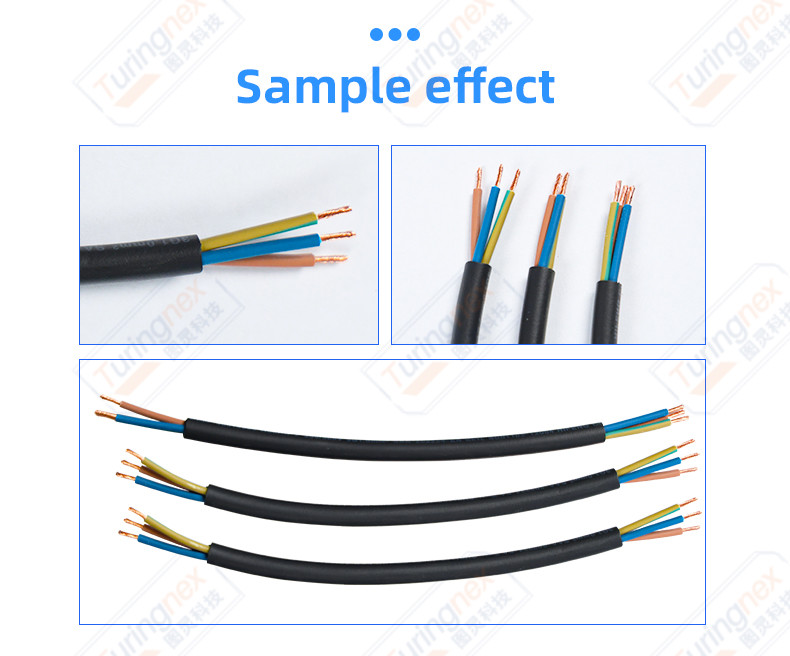

② multi-core sheathed wire, outer skin stripping, inner core wire stripping, cutting, twisting completed at once.
③ single-core multi-stranded wire/multi-core multi-stranded wire, twisting
④ positive twisting, reverse twisting, back twisting
Wire Type：Single-core wire, multi-core cable wire, shielded cable,
electric wire, PVC, etc.
Scope of processing：0.75-30mm²
Max. permissible passing diameter：￠18
Cutting length：1-999999.99mm

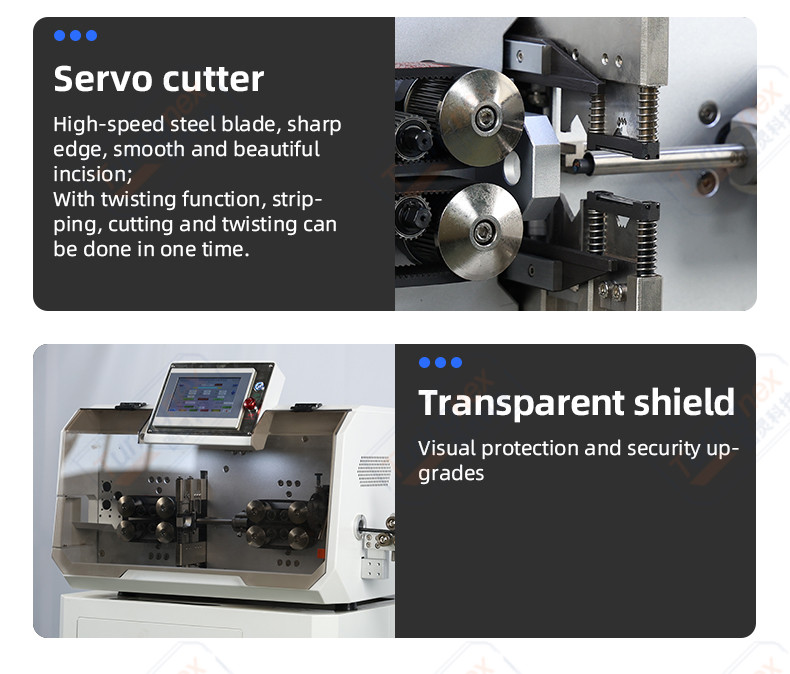

Blade Material：Imported high-speed steel
Cutting tolerances：Within 0.002*L (L=cutting length)
Twisted Wire Stroke：120mm
Strip length：Front stripping: outer jacket fully stripped 10-200mm, inner core wire 1-50mm；
Back stripping: outer jacket fully stripped 10-80mm, inner core wire 1-50mm
Stripping speed：3500 PCS/hour, (Sheathed wire 900pcs/H) Depends on the length and size of the wire.

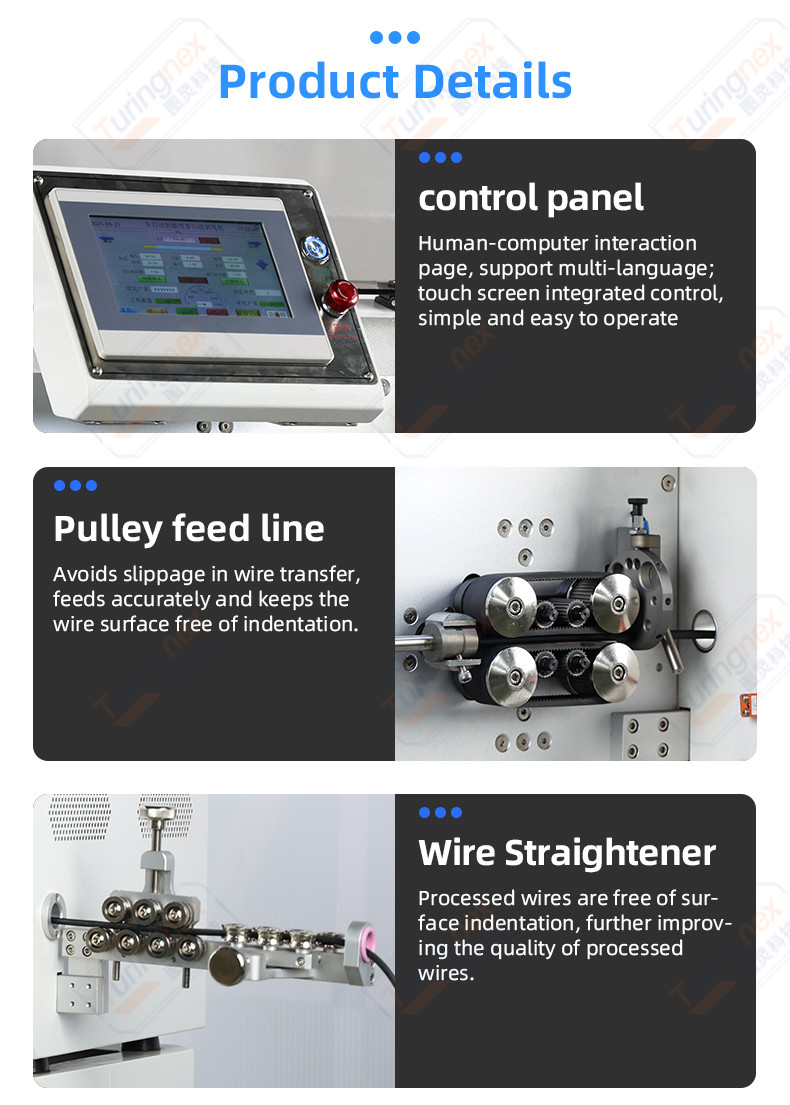

Wire feeding method：Belt feeding, cable without embossing marks and scratches.
(with stripping and pressurizing function)
Driving method：16-wheel drive (feed stepper motors, tool holder servo motors);
servo feeding
optional
Lifting and lowering operation：Digitally adjustable pressure wheel height
note：Ultimate cutting capacity 50 sq. ft.
air supply：0.5Mpa clean gas source
features
1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;
2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;
3. Modularized interface, convenient to link accessories and peripheral equipment;
4. Modular design, upgradeable in the future;
5. Various attached options, customizable system. Special cable processing, non-standard customization.
