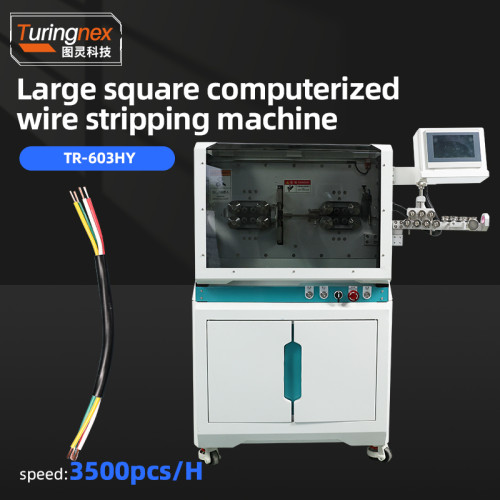

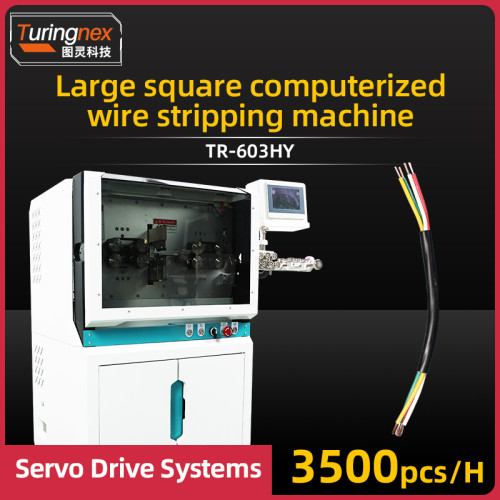

TR-603HY Large Square Computerized Wire Stripping Machine
- Model
- TR-603HY
Item specifics
- Power
- AC220/110V/60HZ/50HZ
- Name
- wire cutting machine
- Cutting length
- 1-999999.99mm
- Scope of processing
- 0.75-30mm²
- Contact
- CoCo +86 18666170785
Review
Description

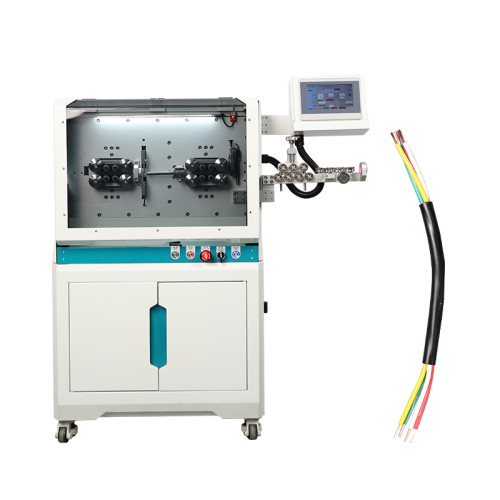

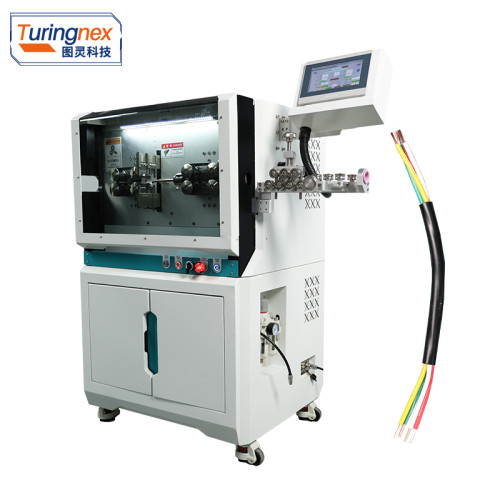

TR-603Y Large Square Computerized Wire Stripping Machine
Size and weight: 707x590x1140mm, 140kg
Display: 7-inch human-machine interface

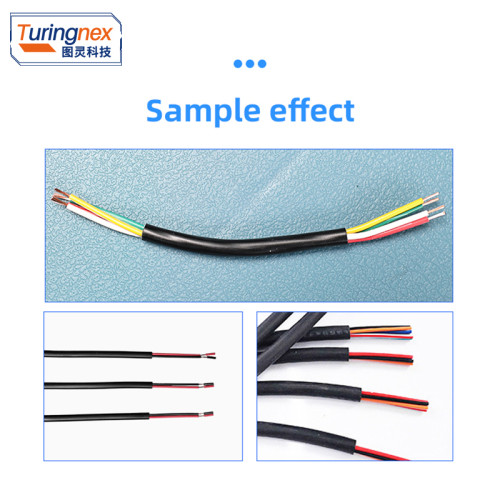

Functions: ① single-core wire, multi-core cable wire, shielded cable, automatic fixed-length cutting, stripping;
② multi-core sheathed wire, outer skin stripping, inner core wire stripping, cutting off in one go.
Wire type: single-core wire, multi-core cable wire, sheathed wire, electric wire, PVC, etc.
Processing range: 0.75-30mm²
Cutting length: 1-999999.99mm
Cutting tolerance: 0.002*L or less (L=cutting length)
Stripping length: front stripping: outer sheathing fully stripped 10-200mm, inner core wire 1-50mm
Back stripping: outer sheathing fully stripped 10-80mm, inner core wire 1-50mm
Stripping speed: 3500 PCS/hour, (sheathed wire 900pcs/H) depending on the length and size of the wire
Feeding method: Belt feeding, no embossing and scratching on the cable. (with stripping pressurisation function)
Driving method: 16 wheel drive (feeding stepping motor, knife holder servo motor); optional servo feeding
Lifting operation: digital adjustment of the height of the pressure wheel
Allowed to pass through the maximum diameter: ¢ 18
Blade material: imported high-speed steel
Air source: 0.5Mpa clean air source
Remarks: Limit cut-off capacity 50 sq. ft.
features
1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;
2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;
3. Modularized interface, convenient to link accessories and peripheral equipment;
4. Modular design, upgradeable in the future;
5. Various attached options, customizable system. Special cable processing, non-standard customization.
