TR-615 Large Square Computerized Wire Stripping Machine
- Model
- TR-615
Item specifics
- Power
- AC220/110V/60HZ/50HZ
- Name
- wire cutting machine
- Cutting length
- 1-999999.99mm
- Scope of processing
- 2.5-150mm²
- Contact
- CoCo +86 18666170785
Review
Description

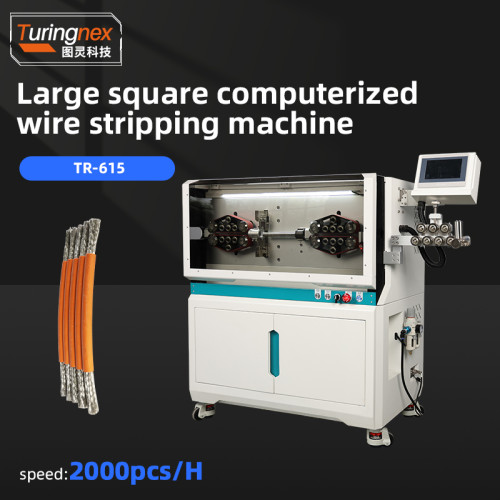

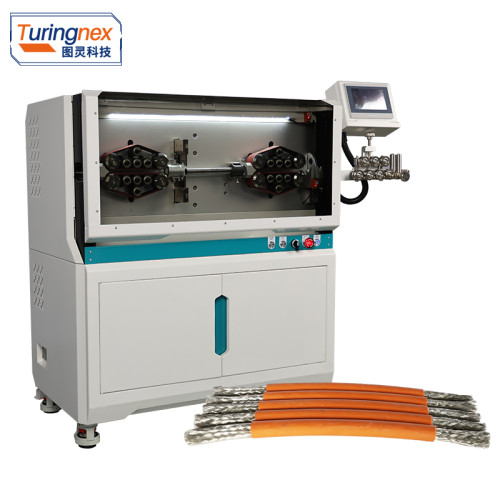

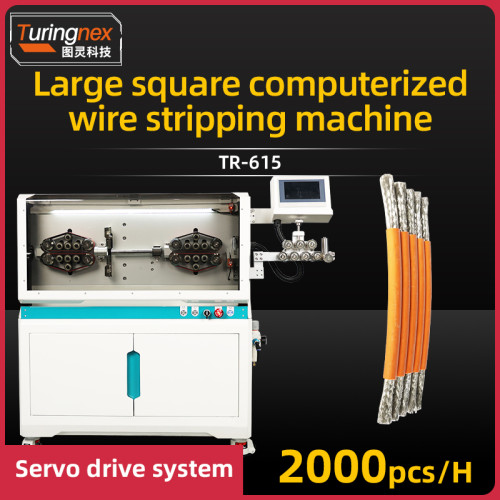

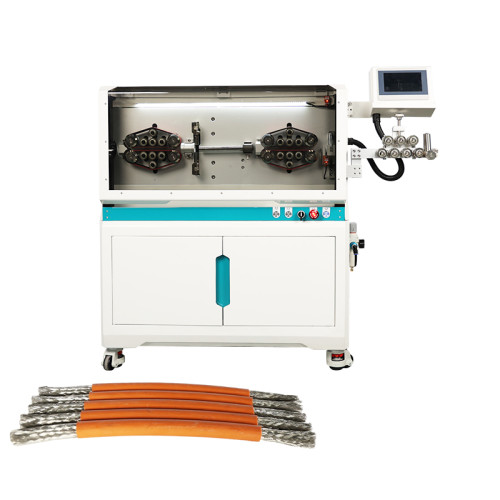

TR-615 Large Square Computerized Wire Stripping Machine
Power Supply: AC220V 50/60HZ (Optional 1100V 50/60HZ)
Display: 7 inch HMI

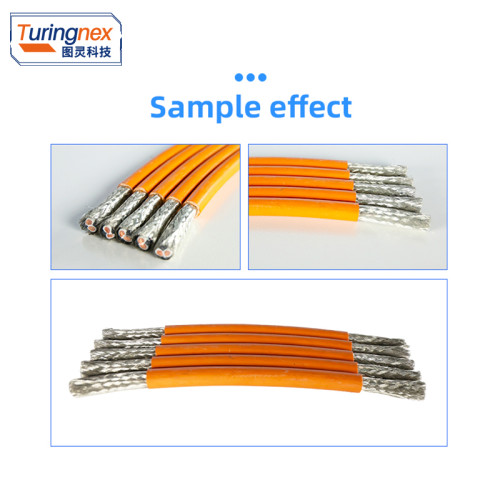

Function: Single core wire, multi-core cable wire, shielded cable, fully automatic fixed-length cutting and stripping
Type of conductor: single-core wire, multi-core cable wire, shielded cable, wire, PVC, etc.
Processing Range: 2.5-150mm2 Cutting Length: 2.5-150mm2 Cutting Tolerance: Stripping Length: Stripping Speed: Feeding Method: Driving Method: Lifting Operation: Dimensions and Weight: 1020x590x1140mm 150mm²
Cutting length: 1-999999.99mm
Cutting tolerance: within 0.002*L (L=cutting length)
Stripping length: front full off:1-300mm, front half off 1-1000mm; rear full off:1-150mm, rear half off 1-500mm
Stripping speed: 2000PCS/hour (according to the length of the wire, the size depends)
Wire feeding method: belt feeding, no embossing and scratching on the cable. (with stripping and pressurising function)
Driving method: 24 wheels drive (feeding stepping motor, knife holder servo motor)
Lifting operation method: digital adjustment of the height of the pressure wheel
Dimensions and weight: 1020x590x1140mm,270kg
Allowable through the maximum diameter: 33mm
Blade material: imported high-speed steel
Air source: 0.5Mpa clean air source
features
1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;
2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;
3. Modularized interface, convenient to link accessories and peripheral equipment;
4. Modular design, upgradeable in the future;
5. Various attached options, customizable system. Special cable processing, non-standard customization.
