Model
TR-09G

Item specifics

Power
AC220V/50HZ,
Application
End-piercing Number Tube
Feature
Stable Performance
Warranty
1year
Control
Servo and Step motor
Contact
Lily 0086-13715588365

Review

Description

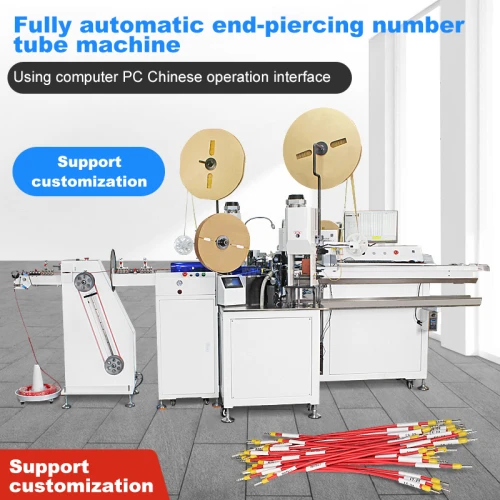

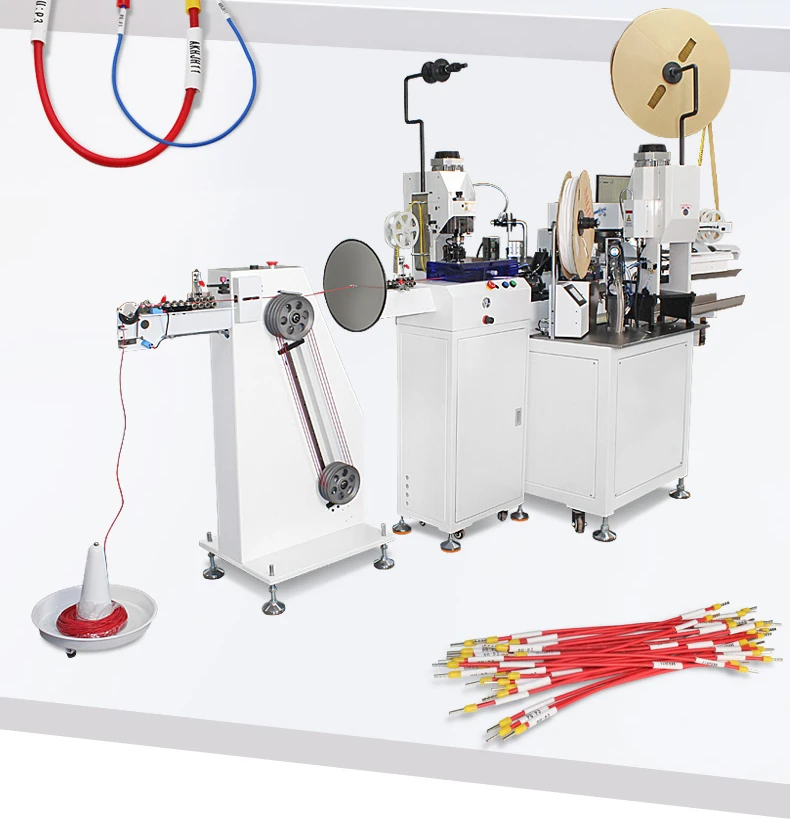

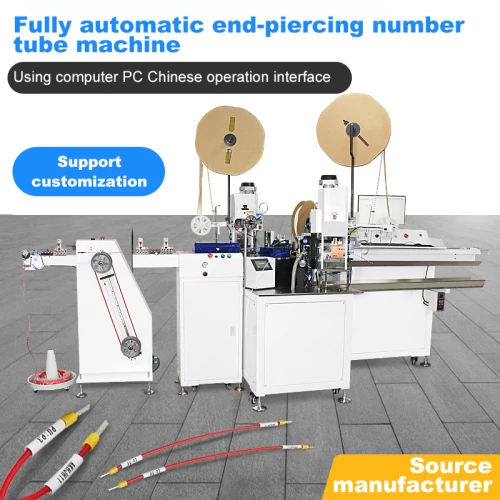

TR-09G Fully Automatic End-piercing Number Tube Machine
TR-09G Fully Automatic End-piercing Number Tube Machine

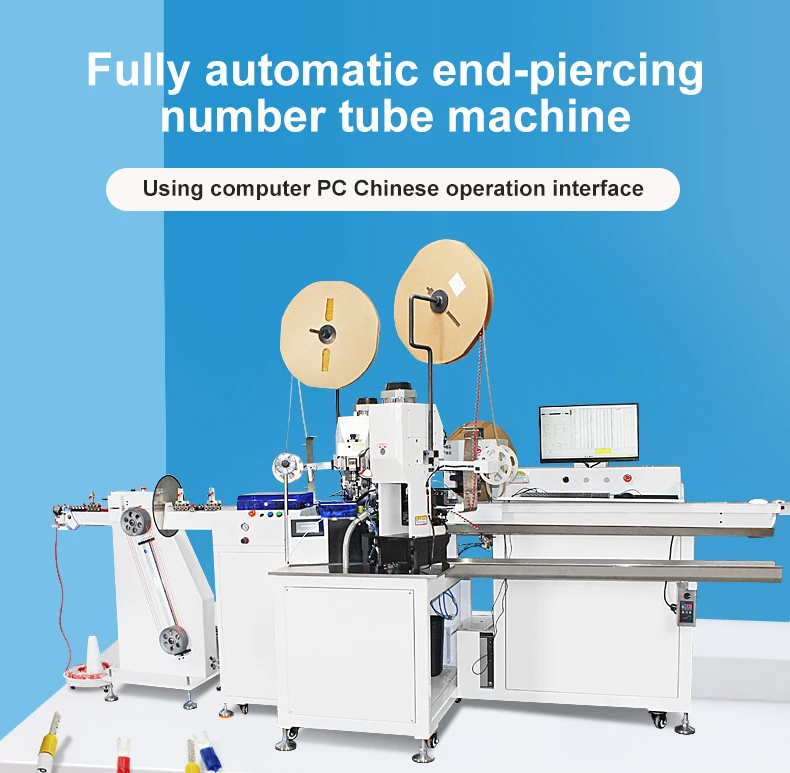

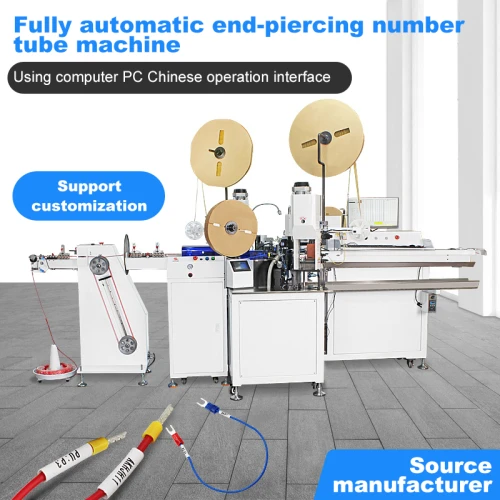

Product name：Fully automatic end-piercing number tube machine
Wire diameter range：Virtual reality 0.75-2.5m2 (other wire numberscan be customized)
Tangent length:120-9000mm cutting error<+(1+0.005xL)
Number tube length:13-30mm
Terminal type:Tubular,0T，UT.various serial terminals
Productivity:When the wire needs to be twisted and then crimpedthe speed is 650-800PCS/hour
Power supply:AC220V 50HZ 4KW
Air pressure:0.4-0.6Mpa (air source is clean and stable)
Weight:850 kg
Dimensions:3m(L)x2.3m(W)x1.8m(H)
TR-09G Fully Automatic End-piercing Number Tube Machine
TR-09G Fully Automatic End-piercing Number Tube Machine
TR-09G Fully Automatic End-piercing Number Tube Machine

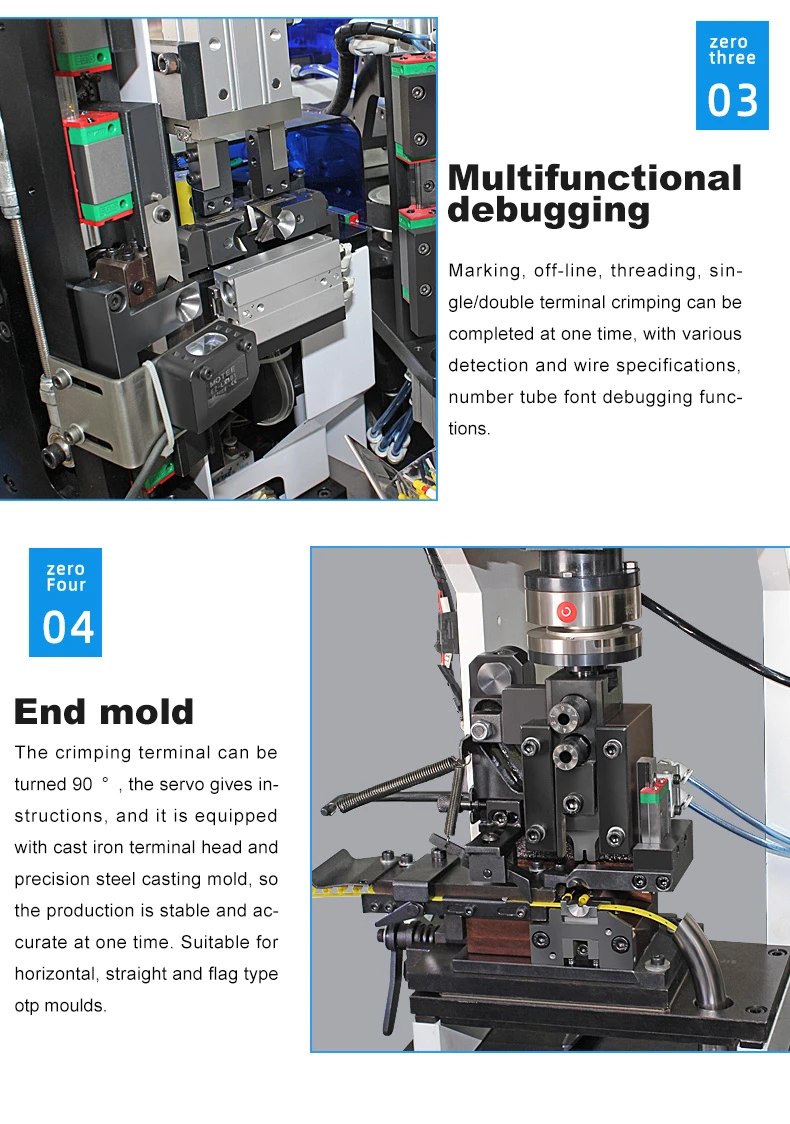

Multifunctionaldebugging
Marking, off-line, threading, sin-gle/double terminal crimping can be
completed at one time, with variousdetection and wire specificationsnumber tube font debugging functions.
End mold
The crimping terminal can beturned 90 °,the servo gives in-structions, and it is equippedwith cast iron terminal head andprecision steel casting mold, sothe production is stable and ac-curate at one time. Suitable forhorizontal, straight and flag typeotp moulds.
