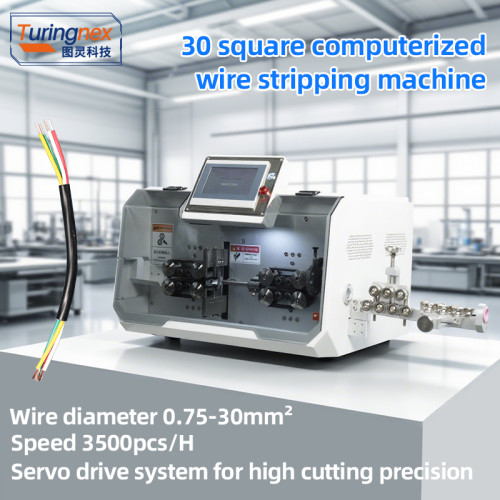

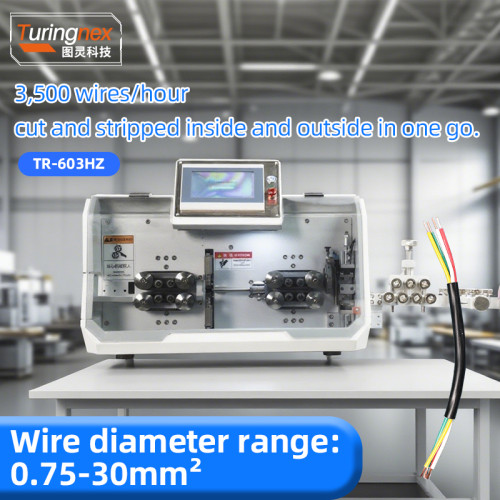

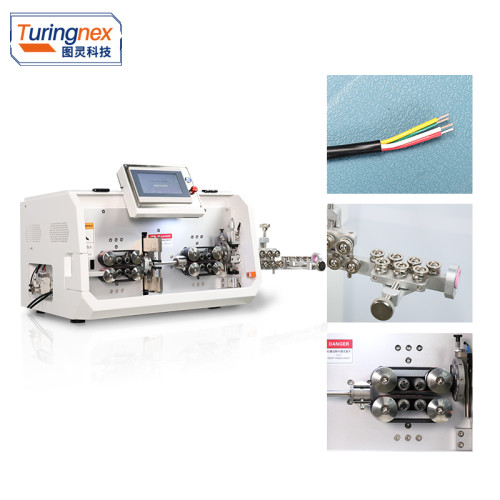

TR-603HZ 30 square computerized wire stripping machine (Wire diameter range:0.75-30mm²)

Size and weight: 680x605x520mm, 100kg

Display: 7-inch human-machine interface

Functions: ① single-core wire, multi-core cable line, shielded cable, automatic fixed-length cutting, stripping;

② multi-core sheath line, outer skin stripping, inner core line stripping, cutting off a complete.

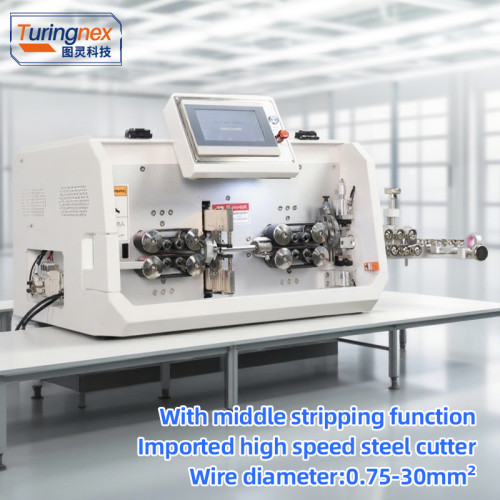

③ with the middle of the cut open peeling function, both ends of the cut open peeling function

Type of conductor: single-core wire, multi-core cable, shielded cable, wire, PVC, etc.

Processing range: 0.75-30mm ²

Cutting length: 1mm-999999.99mm

Cutting tolerance: within 0.002 * L (L = cutting length)

Stripping length: before peeling: the outer sheath is fully stripped 10-200mm, the inner core 1-50mm after peeling: the outer sheath is fully stripped 10-200mm, the inner core 1-50mm. -50mm

 Rear Stripping: outer sheath 10-80mm, inner core 1-50mm

Stripping Speed: 3500 PCS/hour, sheath 900pcs/H (depending on the wire)

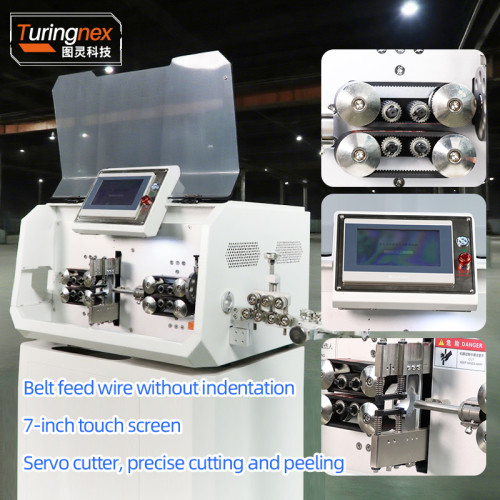

Feeding Method: Belt Feeding, no embossing and scratching on the cable. (with stripping and pressurizing function)

Driving mode: 16 wheels drive (feeding stepping motor, knife frame \ rotary knife servo motor); optional full servo

Lifting and lowering operation: digital adjustment of the height of the pressure wheel

Allowed to pass through the maximum diameter: ¢ 18

Air source: 0.5Mpa clean air source

Remarks: Limit cut-off capacity of 50 sq. ft.
