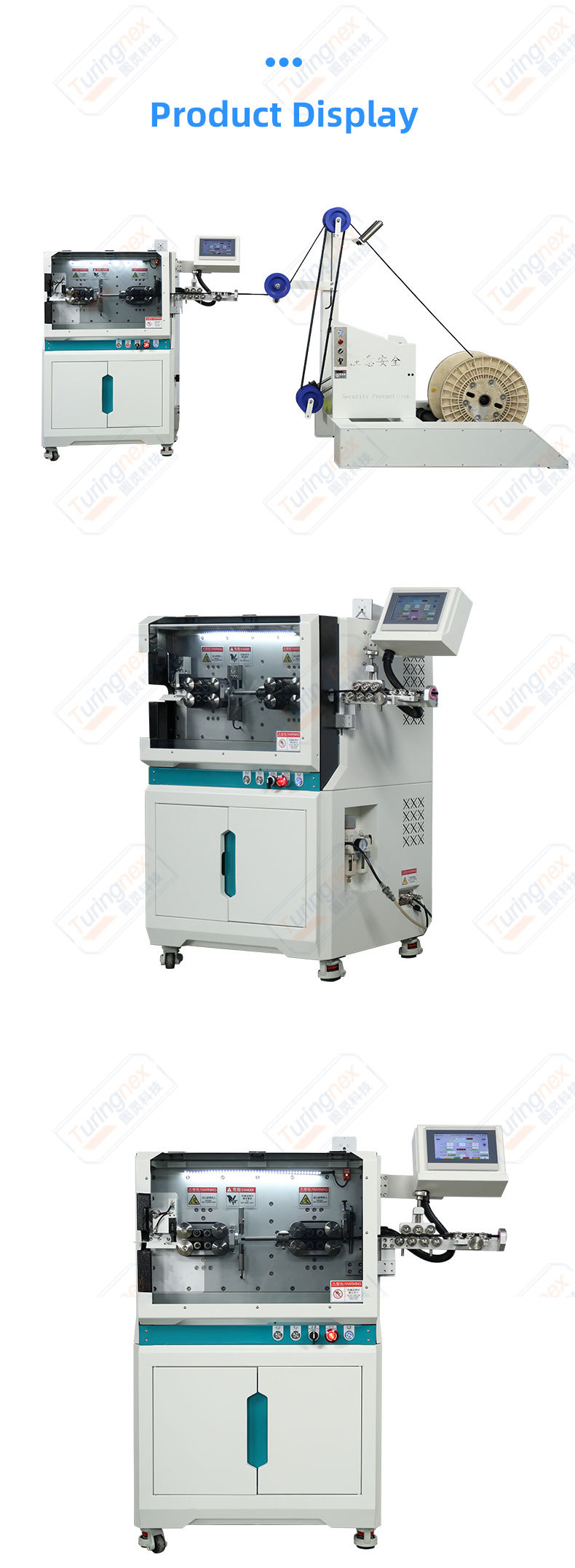

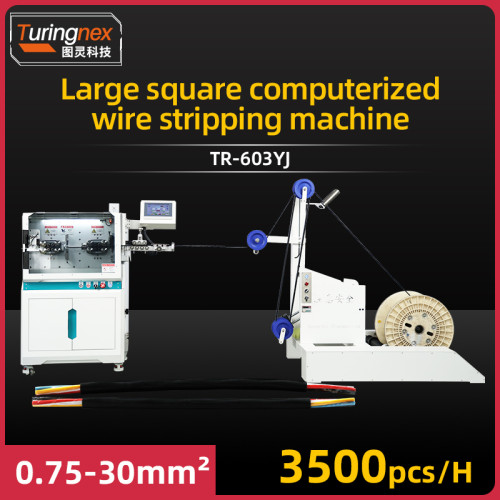

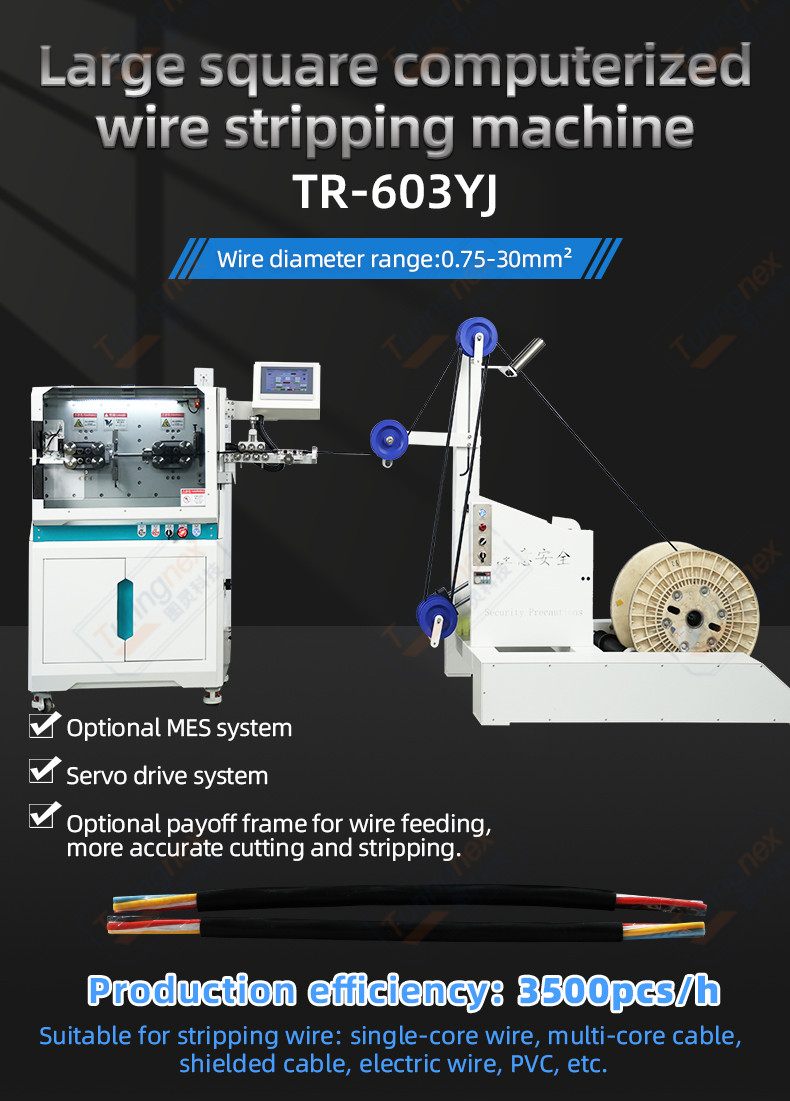

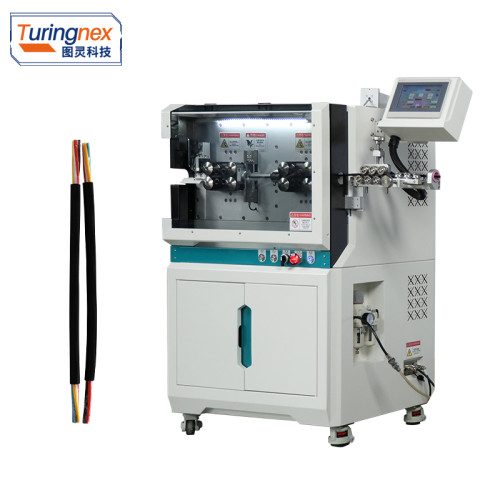

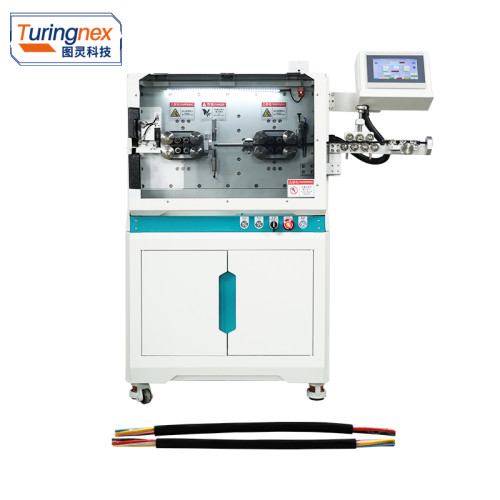

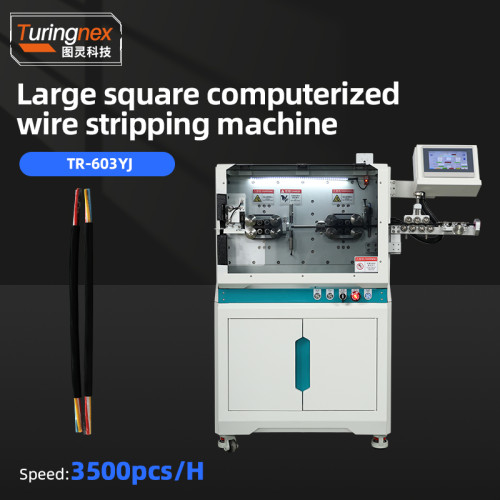

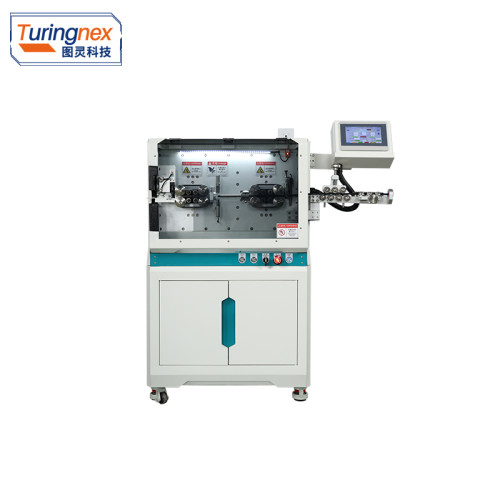

TR-603YJ Large square computerized wire stripping machine
TR-603YJ Large square computerized wire stripping machine
TR-603YJ Large square computerized wire stripping machine
TR-603YJ Large square computerized wire stripping machine
TR-603YJ Large square computerized wire stripping machine
TR-603YJ Large square computerized wire stripping machine
Model
TR-603YJ

Item specifics

Power
AC220/110V/60HZ/50HZ
Name
wire cutting machine
Cutting length
1mm-999999.99mm
Scope of processing
0.75-30mm²
Contact
CoCo +86 18666170785

Review

Description

TR-624 Large square computerized wire stripping machine
Size and weight: 707x590x1140mm,140kg

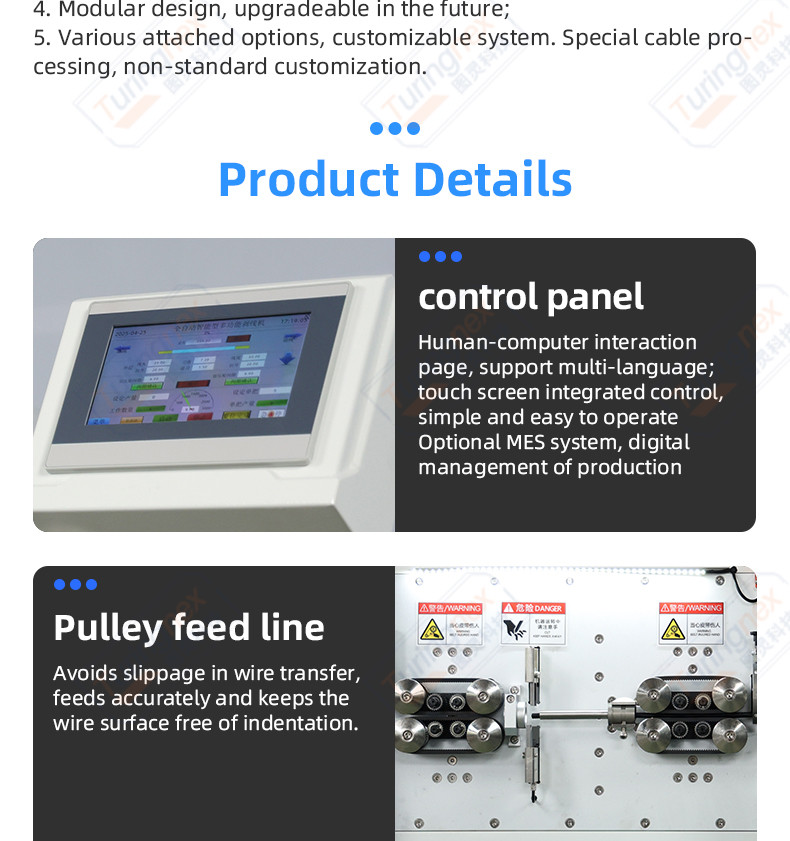

Display: 7 inch human-machine interface

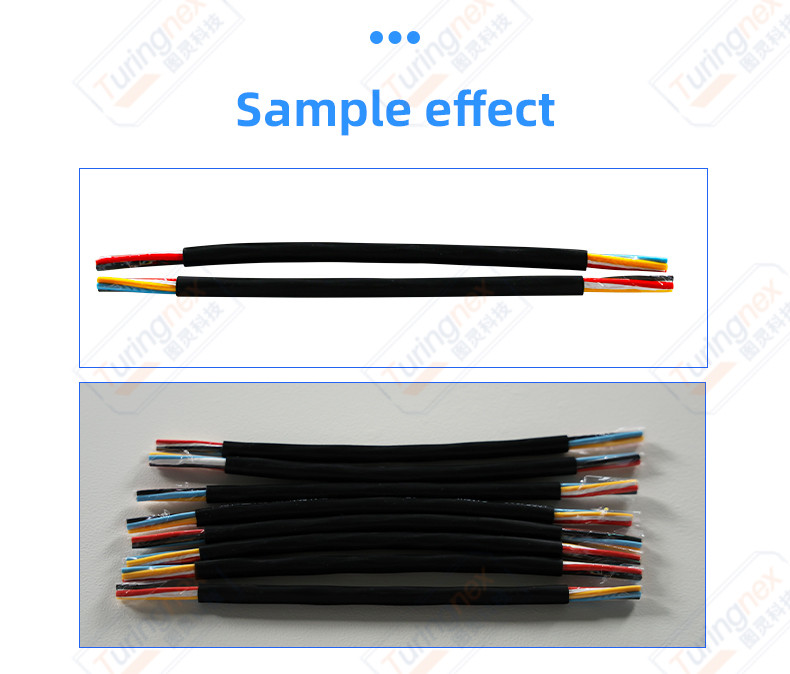

Function: single-core wire, multi-core cable wire, shielded cable, fully automatic fixed-length cutting and stripping
Type of conductor: single-core wire, multi-core cable wire, shielded cable, electric wire, PVC, etc.
Processing range: 0.75-30mm²
Cutting length: 1mm-999999.99mm
Cutting Tolerance: within 0.002*L (L=cutting length)
Stripping length: front end full stripping: 1-200mm , front end half stripping 1-1500mm
 Back end full stripping: 1-100mm , back end half stripping 1-300mm
Stripping speed: 3500PCS/hour (according to the length of the wire, the size of the wire)
Feeding method: belt feeding, no embossed mark and no scratches on the cable. (with stripping and pressurising function)
Driving mode: 16-wheel drive (feeding stepping motor, knife frame\rotary knife servo motor); optional full servo
Lifting operation mode: digital adjustment of the height of the pressure wheel
Allowed to pass through the maximum diameter: ¢18
Air source: 0.5Mpa clean air source
Wheel lifting mode: stepping motor wheel lifting
Swinging conduit mode: pneumatic cylinder swinging conduit
Note:Ultimate cutting capacity 50 sq. ft.
