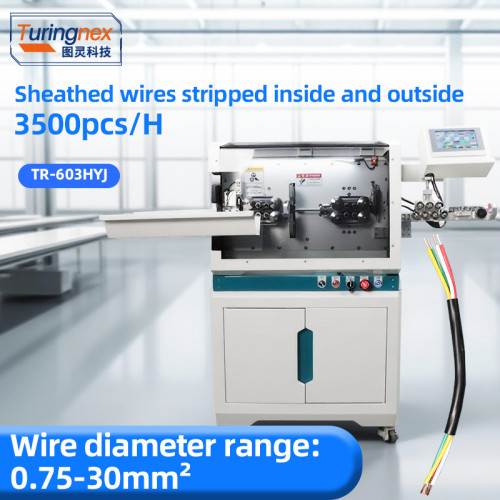

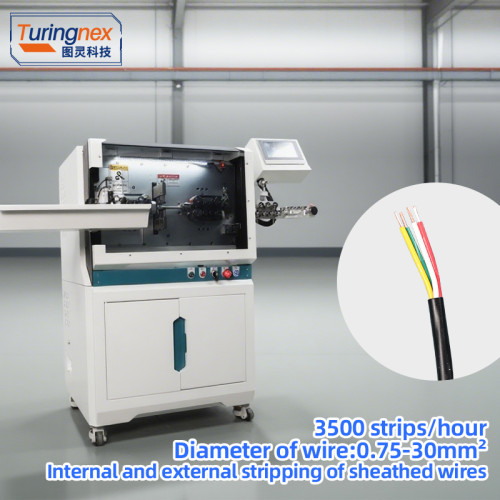

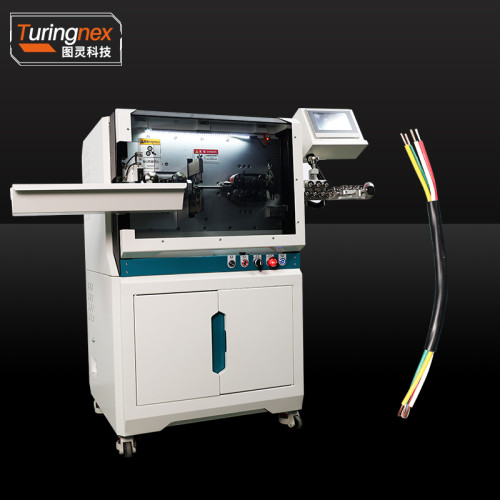

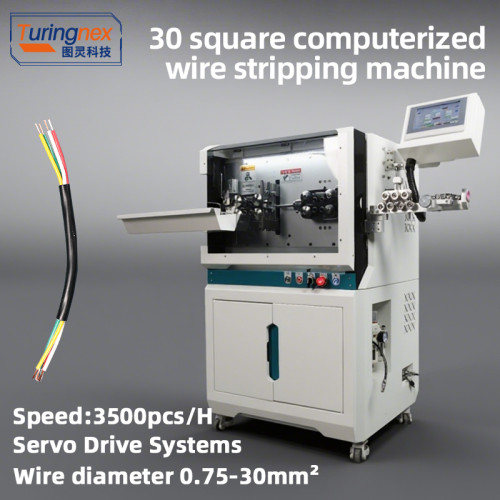

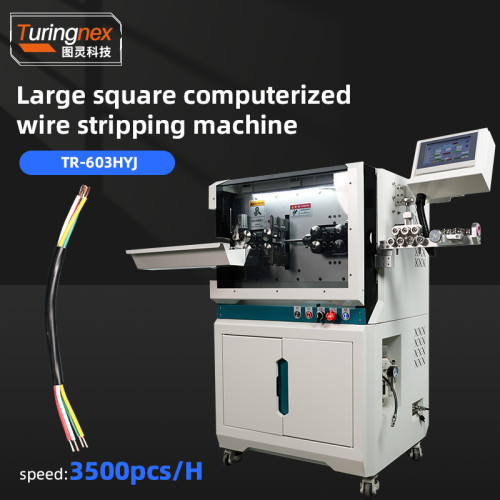

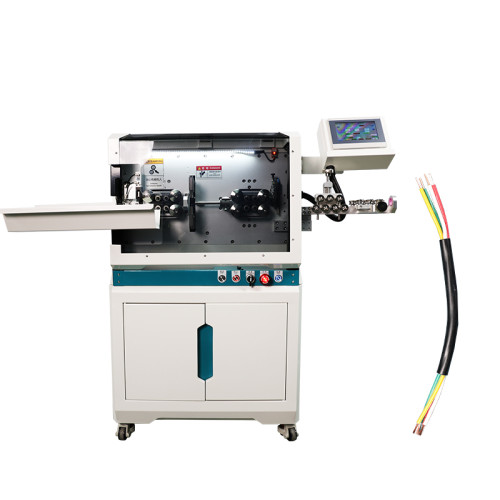

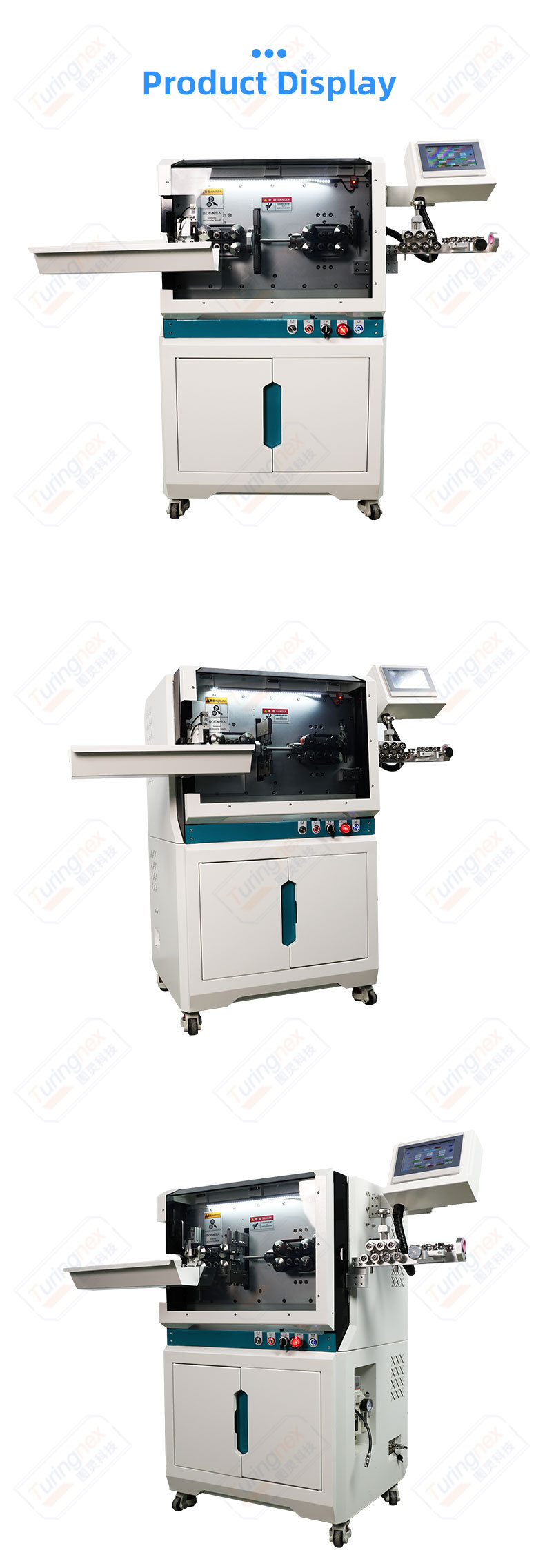

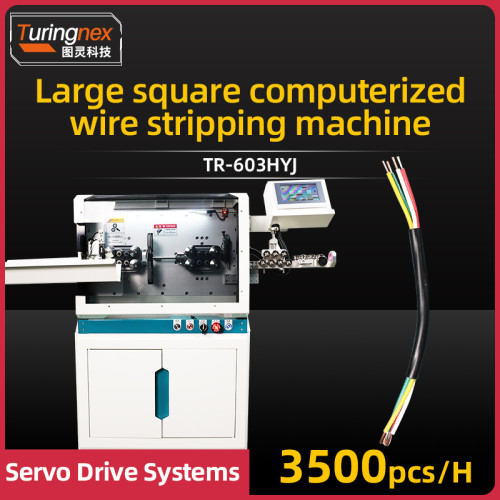

TR-603HYJ Large Square Computerized Wire Stripping Machine
TR-603HYJ Large Square Computerized Wire Stripping Machine
TR-603HYJ Large Square Computerized Wire Stripping Machine
TR-603HYJ Large Square Computerized Wire Stripping Machine
TR-603HYJ Large Square Computerized Wire Stripping Machine
TR-603HYJ Large Square Computerized Wire Stripping Machine
Model
TR-603HYJ

Item specifics

Power
AC220/110V/60HZ/50HZ
Name
wire cutting machine
Cutting length
1-999999.99mm
Scope of processing
0.75-30mm²
Contact
CoCo +86 18666170785

Review

Description

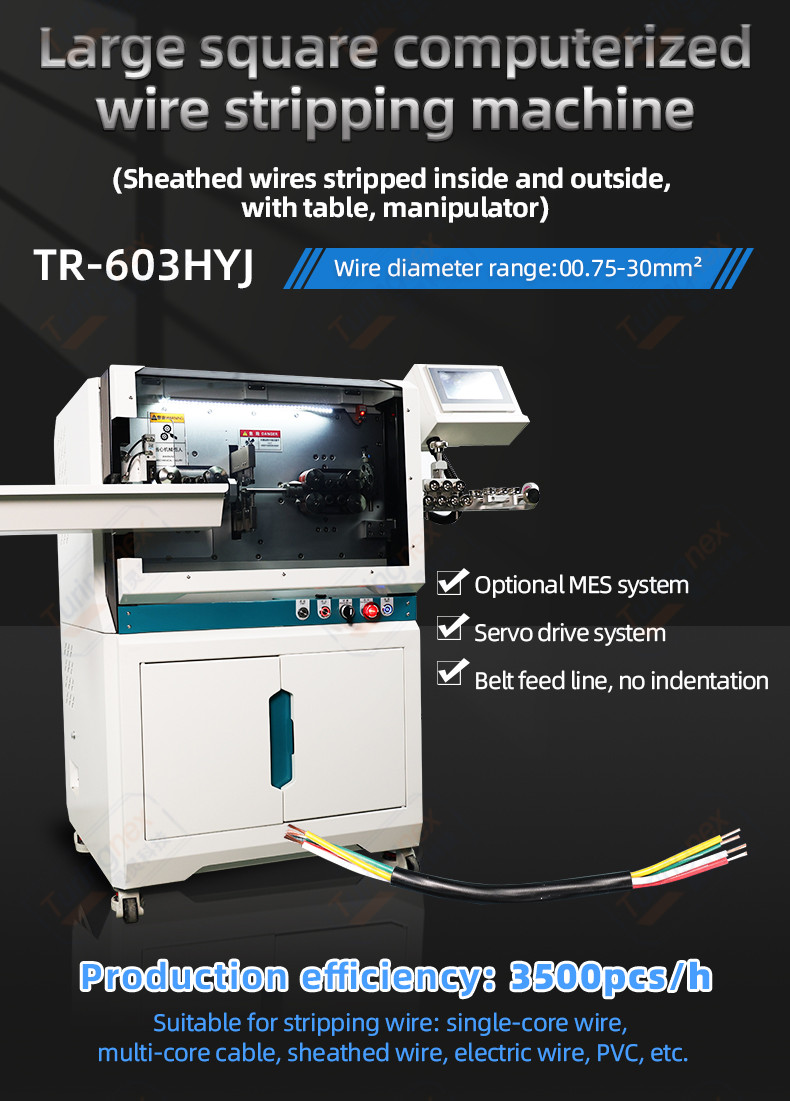

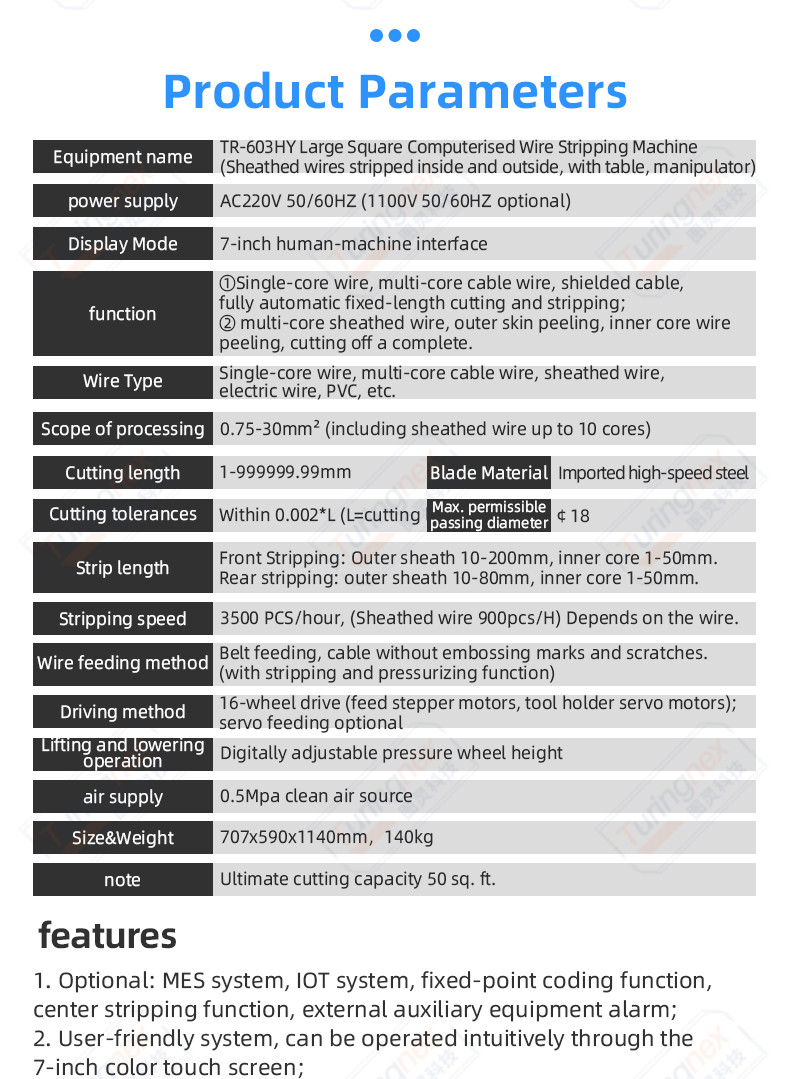

TR-603HY Large Square Computerised Wire Stripping Machine (Sheathed wires stripped inside and outside, with table, manipulator)
Power supply: AC220V 50/60HZ (optional 1100V 50/60HZ)
Display: 7-inch man-machine interface
Function: ① single-core wire, multi-core cable line, shielded cable, fully automatic fixed-length cutting, stripping;
 ② multi-core sheathed wire, outer skin stripping, inner core wire stripping, cutting off at once.
Wire type: single-core wire, multi-core cable, shielded cable, electric wire, PVC, etc.
Processing range: 0.75-30mm²
Cutting length: 1-999999.99mm
Cutting tolerance: 0.002*L or less (L=cutting length)
Stripping length: front stripping: outer jacket fully stripped 10-200mm, inner core wire 1-50mm
 Back stripping: outer jacket fully stripped 10-80mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Core wire 1-50mm
Stripping speed: 3500 PCS/hour, (sheathed wire 900pcs/H) depending on the length and size of the wire

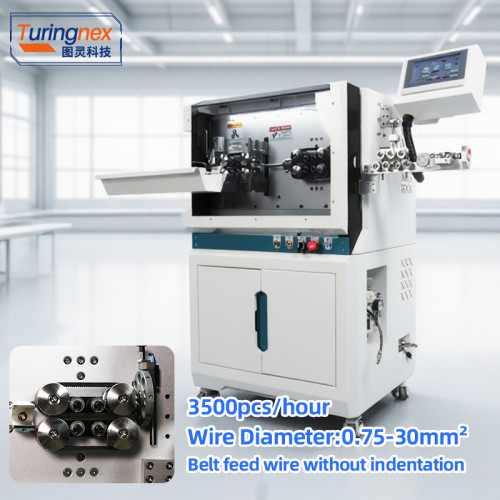

Feeding method: Belt feeding, no embossing and scratching on the cable. (with stripping and pressurising function)
Driving mode: 16 wheels drive (feeding stepping motor, knife holder servo motor)
Lifting operation mode: digital adjustment of the height of the pressure wheel
Dimensions and weight: 707x590x1140mm, 140kg
Allowed to pass through the maximum diameter: 18mm
Blade material: imported high-speed steel
Air source: 0.5Mpa clean air source

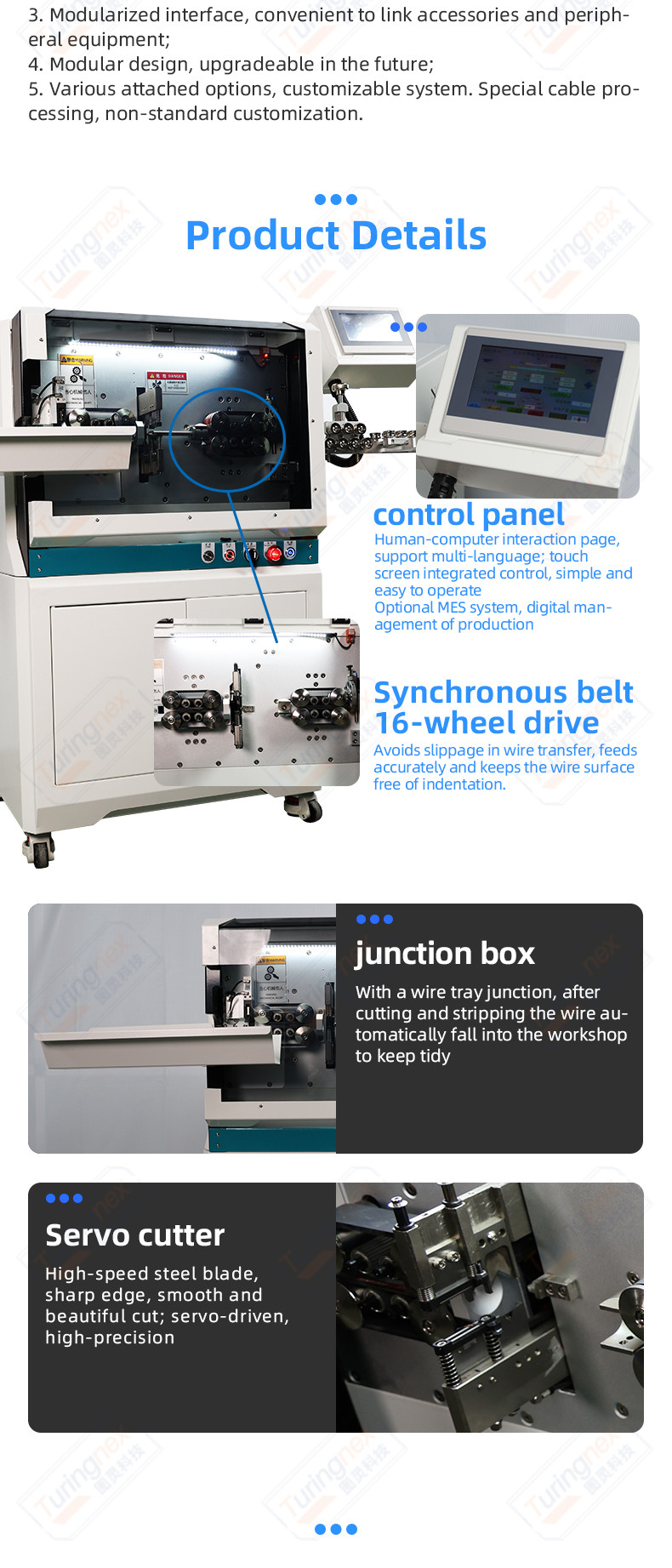

features
1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;
2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;
3. Modularized interface, convenient to link accessories and peripheral equipment;
4. Modular design, upgradeable in the future;
5. Various attached options, customizable system. Special cable processing, non-standard customization.
