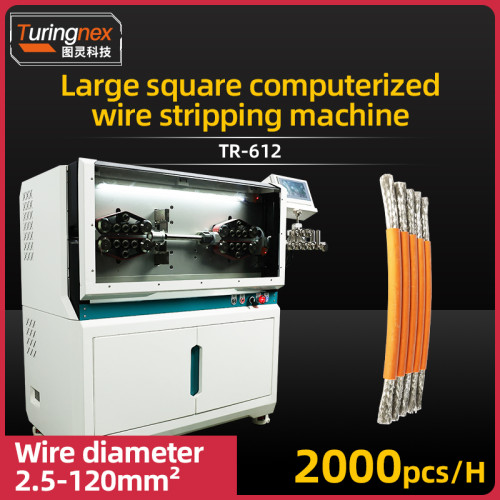

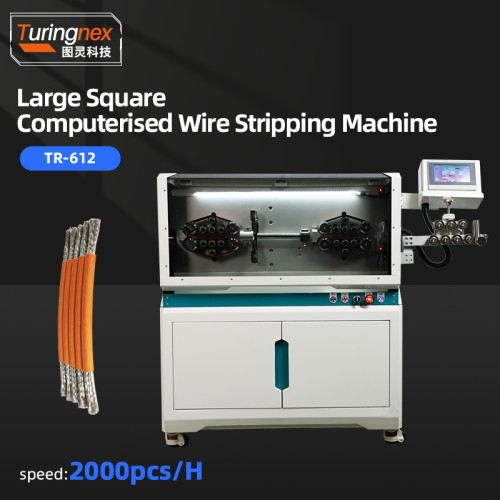

TR-612 Large square computerized wire stripping machine
- Model
- TR-612
Item specifics
- Power
- AC220/110V/60HZ/50HZ
- Name
- wire cutting machine
- Cutting length
- 1mm-999999.99mm
- Scope of processing
- 2.5-120mm²
- Contact
- CoCo +86 18666170785
Review
Description

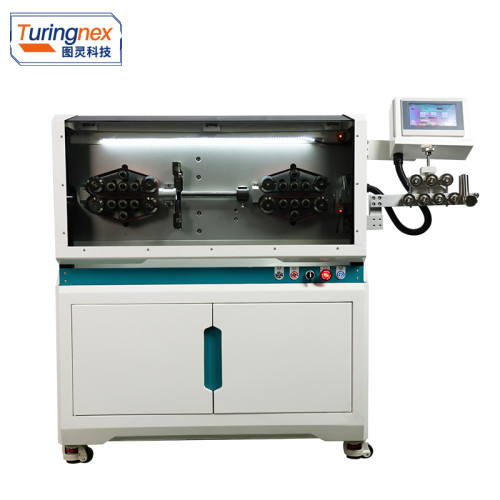

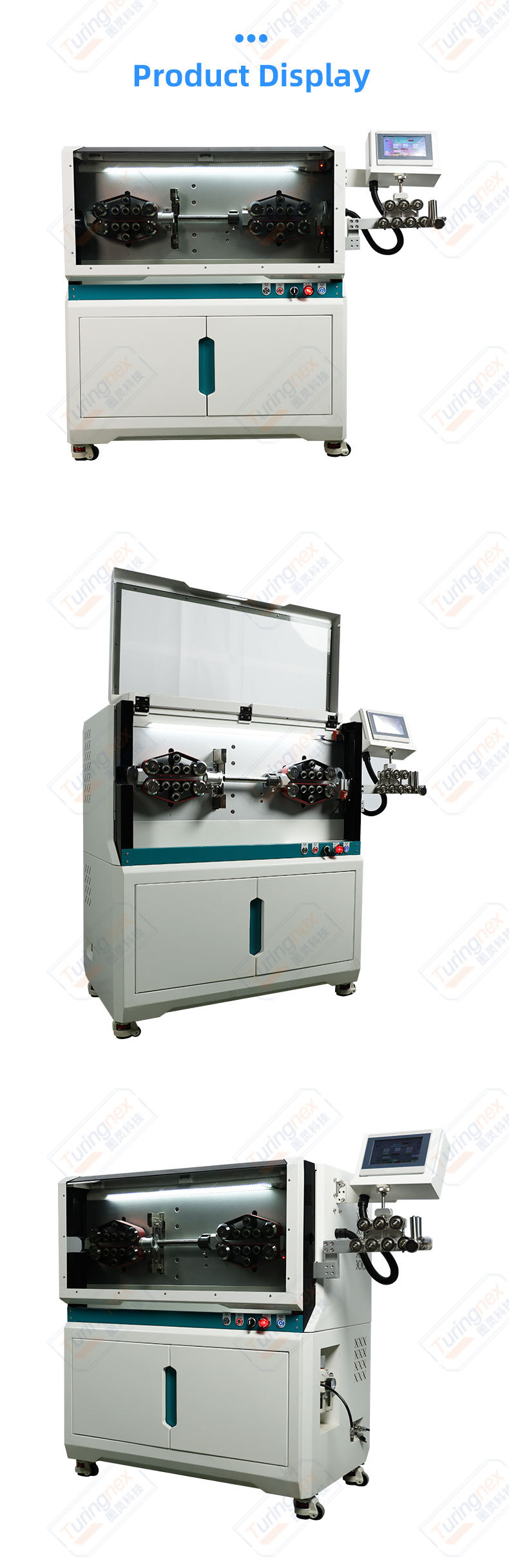

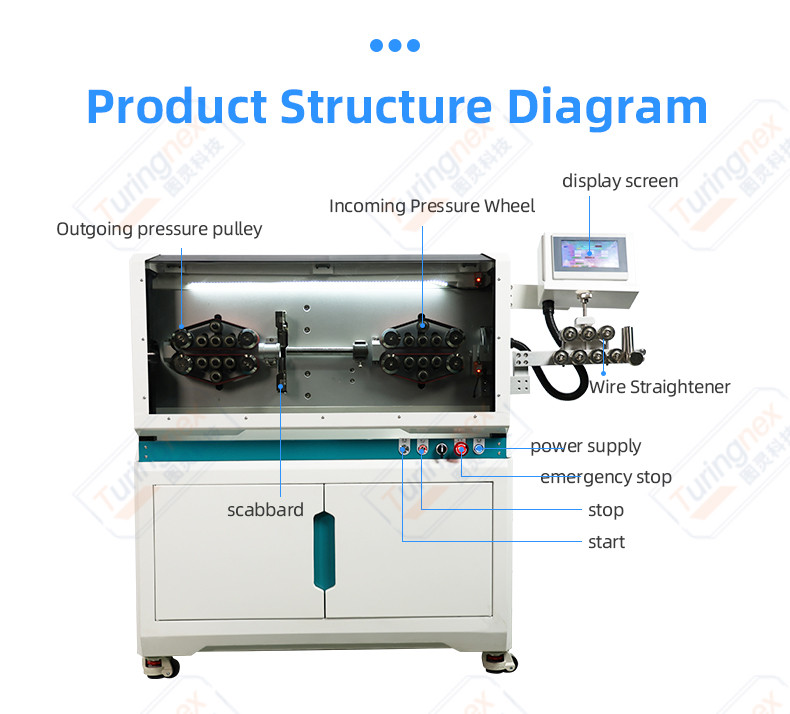

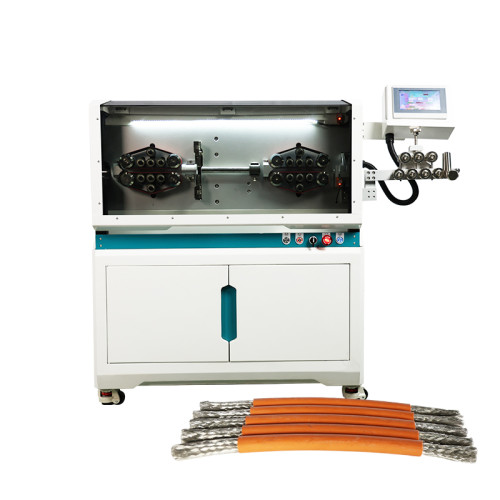

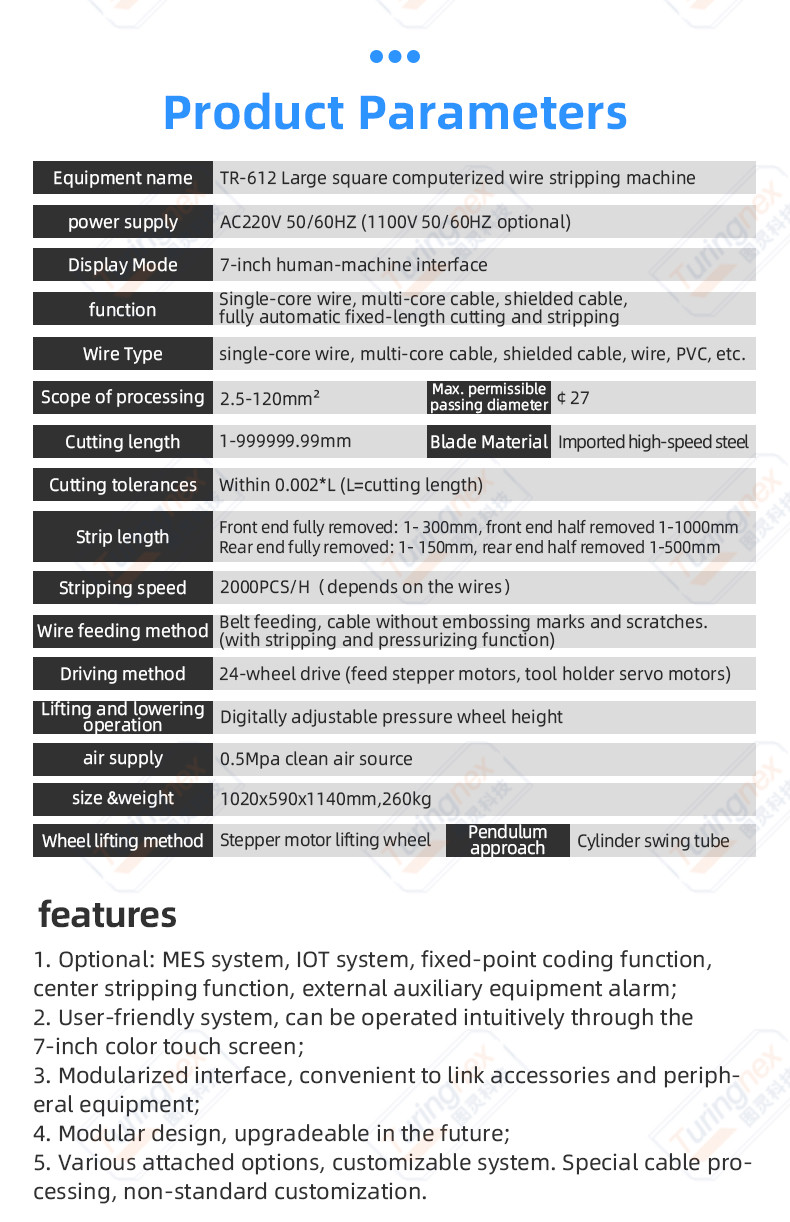

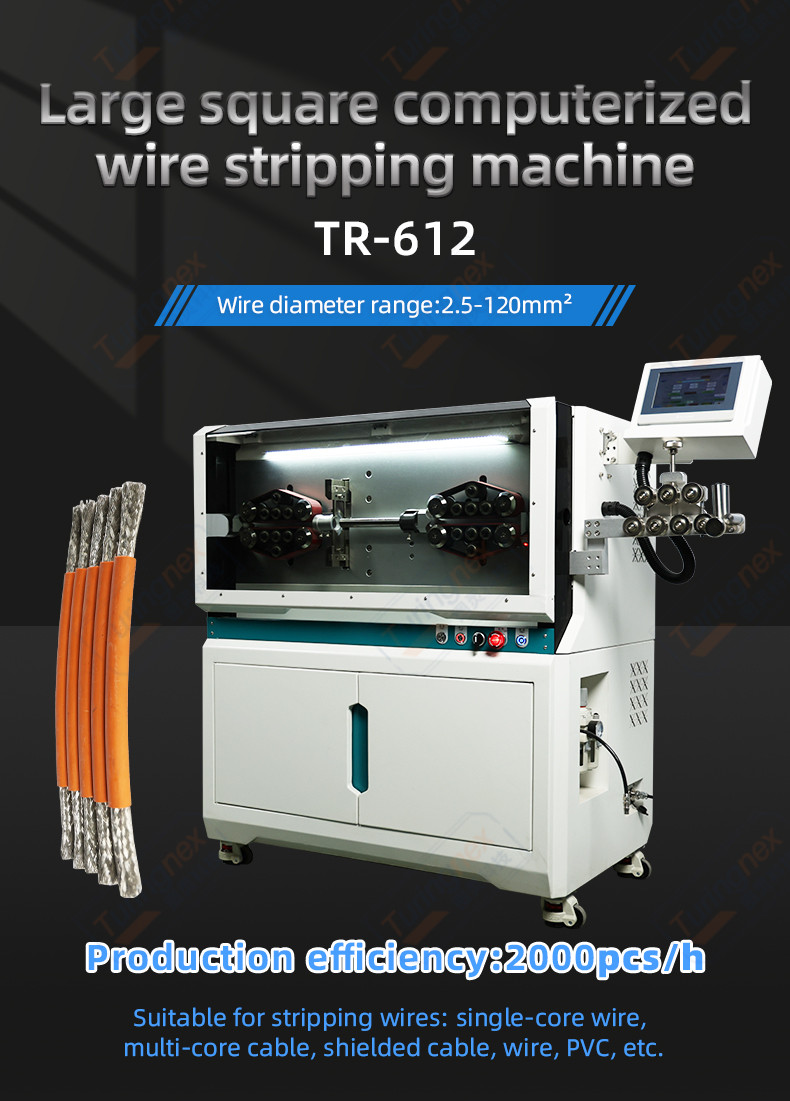

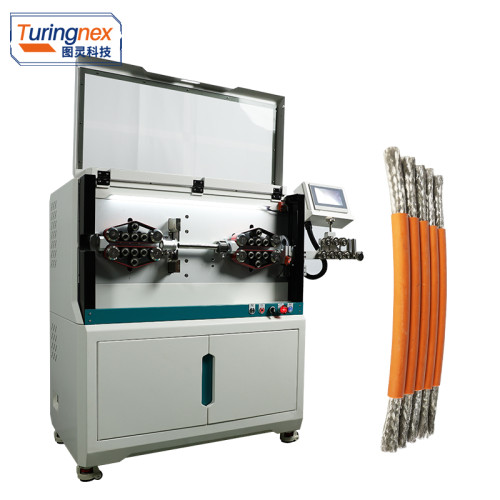

TR-612 Large square computerized wire stripping machine
Size and weight: 1020x590x1140mm,260kg

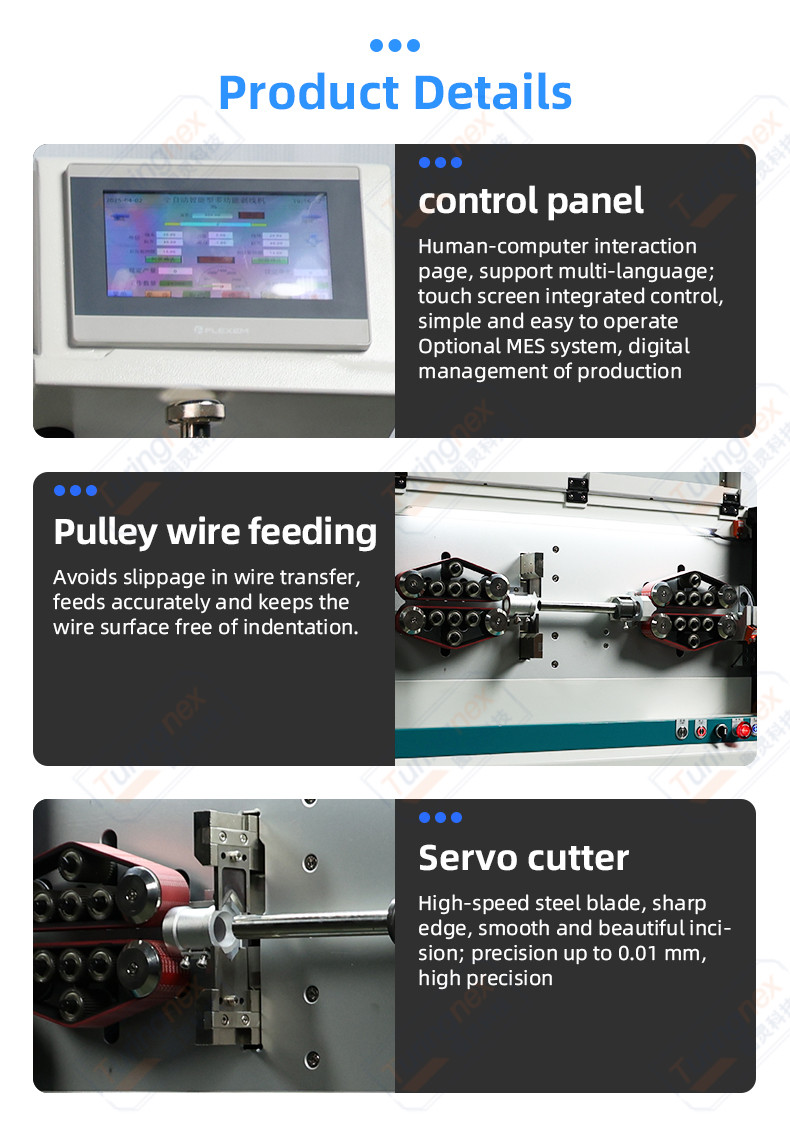

Display: 7 inch human-machine interface

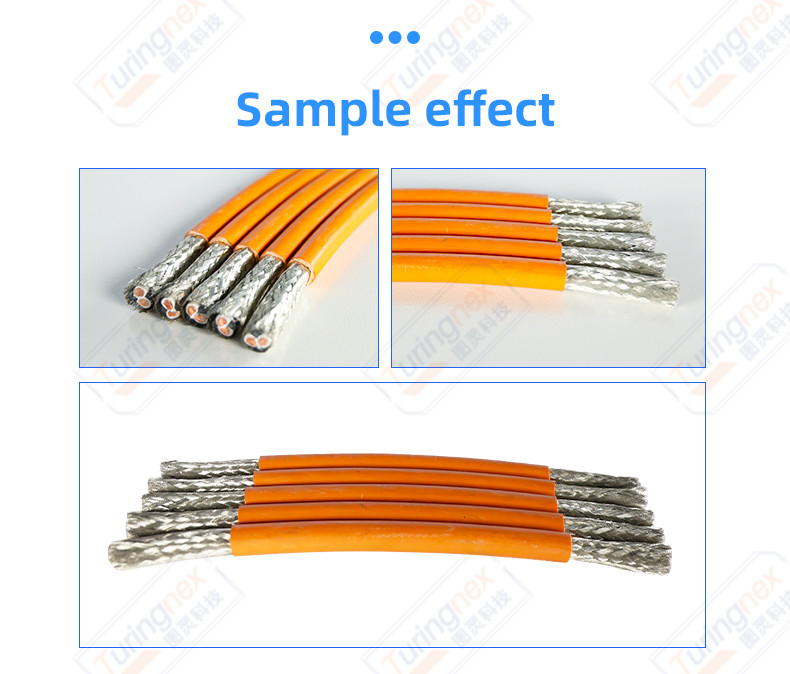

Function: single-core wire, multi-core cable wire, shielded cable, fully automatic fixed-length cutting and stripping
Type of conductor: single-core wire, multi-core cable wire, shielded cable, electric wire, PVC, etc.
Processing range: 2.5-120mm²
Cutting length: 1mm-999999.99mm
Cutting Tolerance: within 0.002*L (L=cutting length)
Stripping length: front end full stripping: 1-300mm , front end half stripping 1-1000mm
Back end full stripping: 1-150mm , back end half stripping 1-500mm
Stripping speed: 2000PCS/hour (according to the length of the wire, the size of the wire)
Feeding method: belt feeding, no embossed mark and no scratches on the cable. (with stripping and pressurising function)
Driving mode: 24-wheel drive (feeding stepping motor, knife frame\rotary knife servo motor); optional full servo
Lifting operation mode: digital adjustment of the height of the pressure wheel
Allowed to pass through the maximum diameter: ¢ 27
Air source: 0.5-0.8Mpa clean air source
Wheel lifting mode: stepping motor wheel lifting
Swinging conduit mode: pneumatic cylinder swinging conduit
