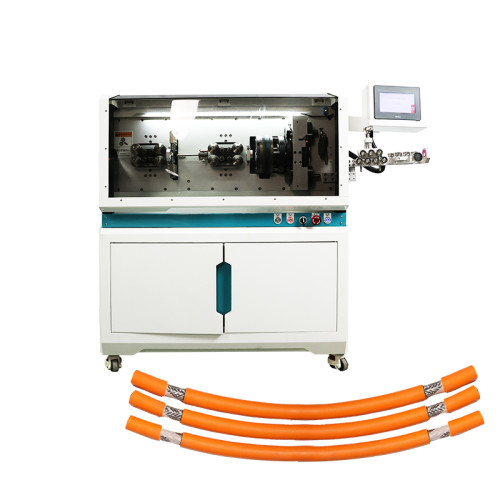

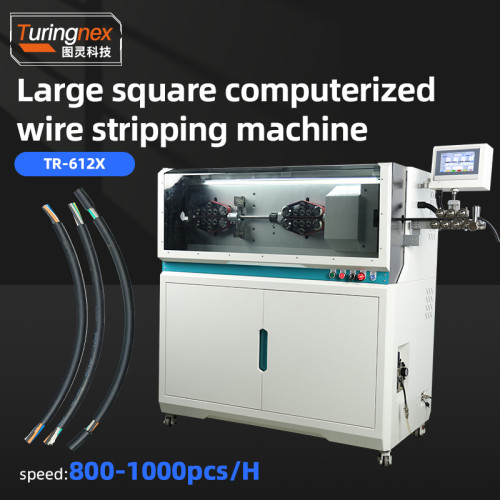

TR-612X Large square computerized wire stripping machine
TR-612X  Large square computerized wire stripping machine
TR-612X  Large square computerized wire stripping machine
TR-612X  Large square computerized wire stripping machine
TR-612X  Large square computerized wire stripping machine
TR-612X  Large square computerized wire stripping machine
Model
TR-612X

Item specifics

Power
AC220/110V/60HZ/50HZ
Name
wire cutting machine
Cutting length
1mm-999999.99mm
Scope of processing
6-12mm²
Contact
CoCo +86 18666170785

Review

Description

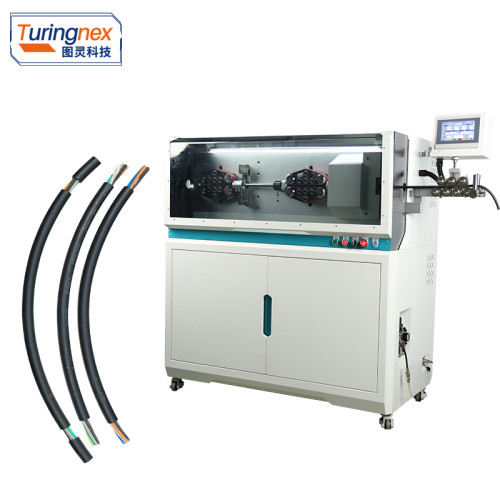

TR-612X  Large square computerized wire stripping machine
Size and weight: 128x48x135cm, 180kg
Display: 7 inch human-machine interface
Function:
1, power line, corrugated line, base station coaxial line, cable line, multi-core line, multi-layer line, shielded line, charging line of new energy vehicle charging piles and other large cable processing;
2, this machine uses the rotary cutting method, without changing the blade, you can cut off and strip all the different specifications of the type of cable line. and stripping process without changing blades.
3, can store 100 groups of processing parameters and recipes.
Wire type: single-core wire, multi-core wire, power cord, multi-layer wire, shielded wire, electric wire, etc.
Processing range: 6-120mm²
Cutting length: 1mm-999999.99mm
Cutting tolerance: 0.002*L or less (L=cutting length)
Stripping length: front end full stripping: 1-300mm, front end half stripping 1-1000mm
 Rear end full stripping: 1-150mm, rear half stripping 1-500mm Stripping speed: 1-150mm, rear half stripping 1-1,000mm. 1-500mm
Stripping speed: 800-1000PCS/hour (according to the length and size of the wire)
Wire feeding method: belt feeding, no embossing and scratching on the cable. (with stripping pressurisation function)
Driving method: 24 wheel drive (feeding stepping motor, knife holder\rotary knife servo motor); optional full servo
Lifting operation: digital adjustment of the pressure wheel height
Allowed to pass through the maximum diameter: ¢ 24
Blade material: imported high-speed steel
Rotary stripping knife feeding method: grinding screw
Rotary stripping knife number: 2 pieces
Rotary stripping knife material: white steel/tungsten steel (optional)
Rotary stripping knife power: feeding: servo. Rotation: servo
Stripping auxiliary clamp: servo + grinding screw
Wheel lifting mode: stepping motor lifting wheel
Pendulum tube mode: cylinder pendulum tube
