TR608-MAX3-S150 185mm² Computerized Wire Stripping Machine
- Model
- TR608-MAX3-S150
Item specifics
- Power
- AC220/110V/60HZ/50HZ
- Name
- wire stripping machine
- Feature
- Stable Performance
- Warranty
- 3year
- Contact
- CoCo +86 18666170785
Review
Description

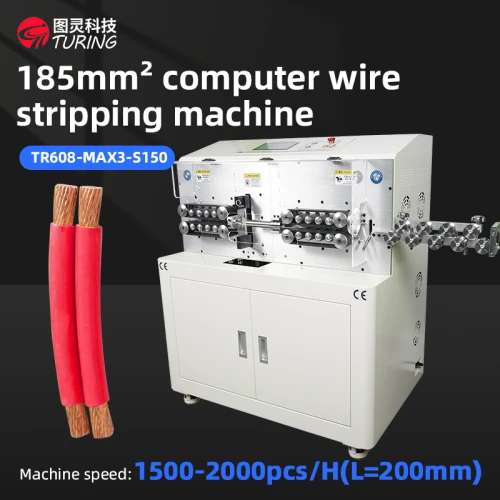

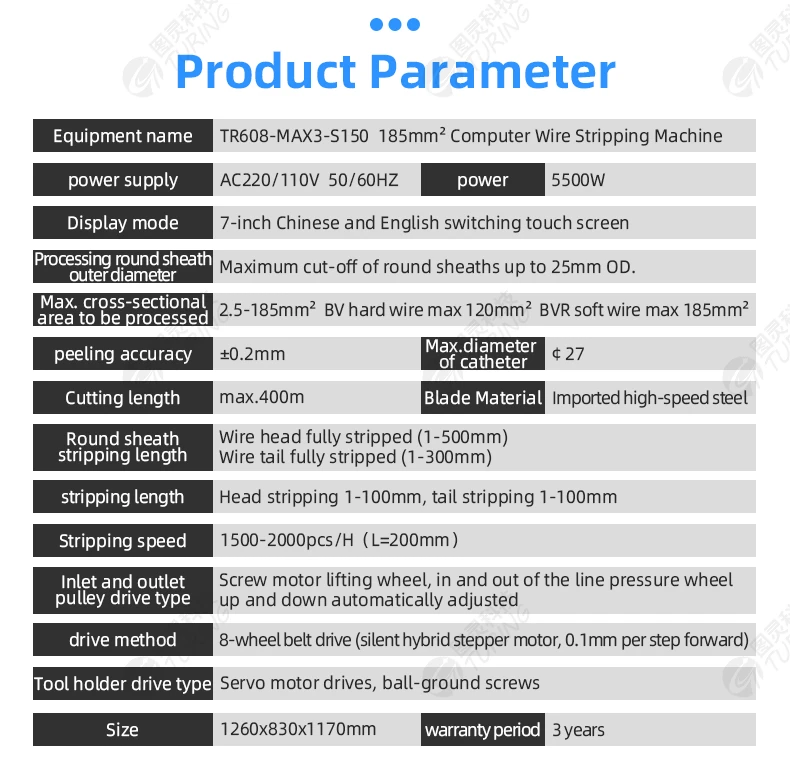

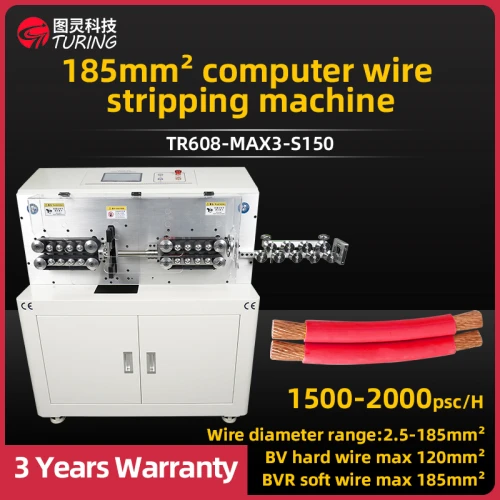

TR608-MAX3-S150 185mm² Computerized Wire Stripping Machine
Power supply power: AC220/110V 50/60HZ, 5500W
Display mode: 7-inch Chinese and English switching touch screen
Processing round sheath outer diameter: the maximum cutting and stripping of the outer diameter of 25mm round sheath below

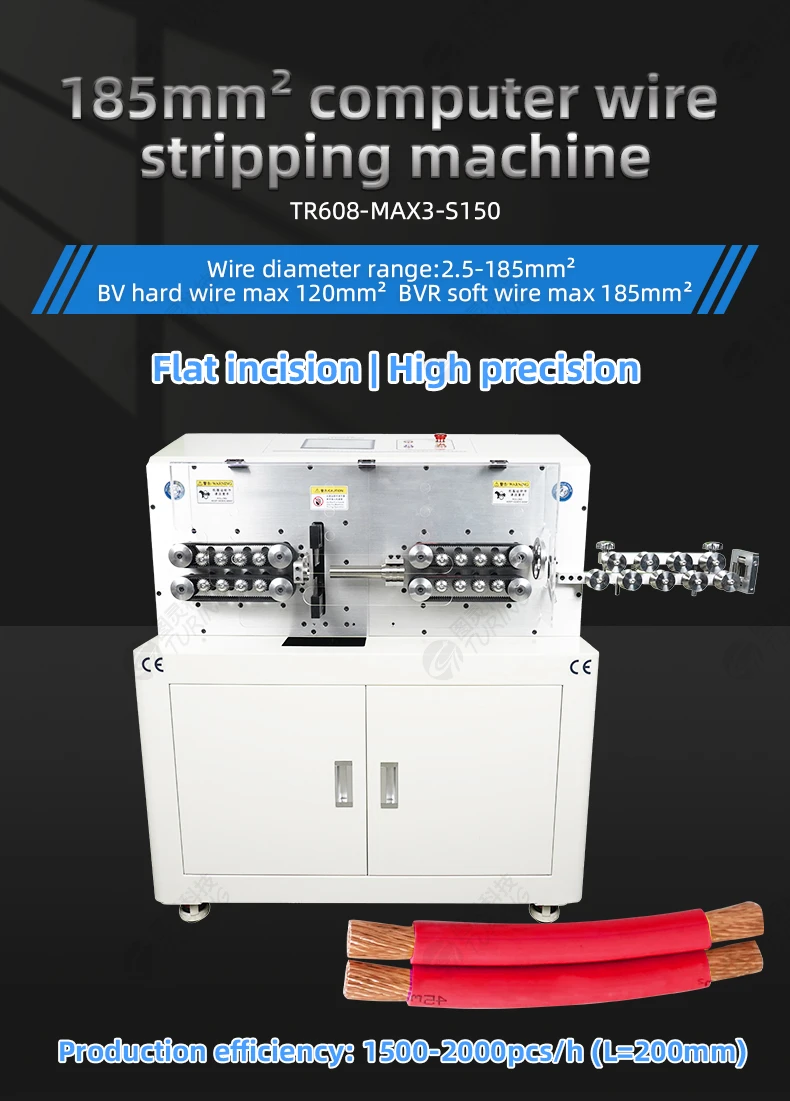

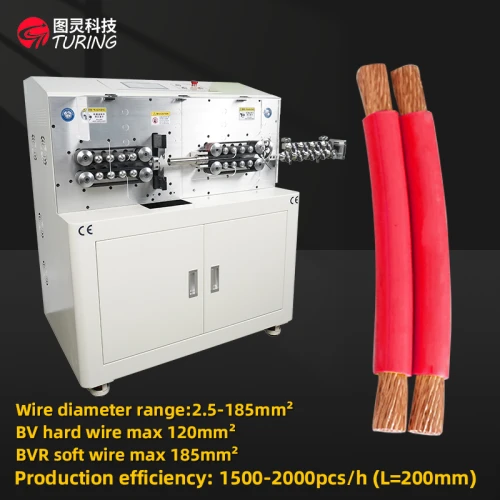

Processing maximum cross-sectional area: 2.5-185mm², BV hard line maximum 120mm², BVR soft line maximum 185mm².
Stripping accuracy: ±0.2mm
Cutting length: Maximum 400m
Round jacket stripping length: full stripping at the beginning of the line (1-500mm) full stripping at the end of the line (1-300mm)
Stripping length: head stripping 1-100mm, tail stripping 1-100mm
Stripping speed: 1500-2000 pcs/hour (L=200mm)

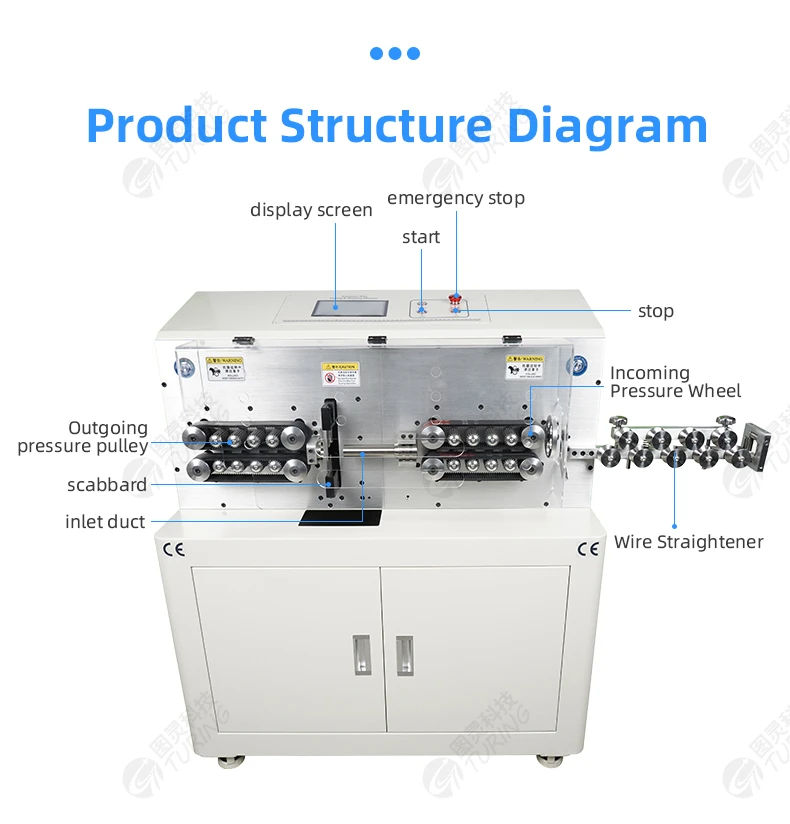

Driving mode of inlet and outlet wire wheel: silk rod motor lifting wheel, inlet and outlet wire pressure wheel up and down automatic adjustment

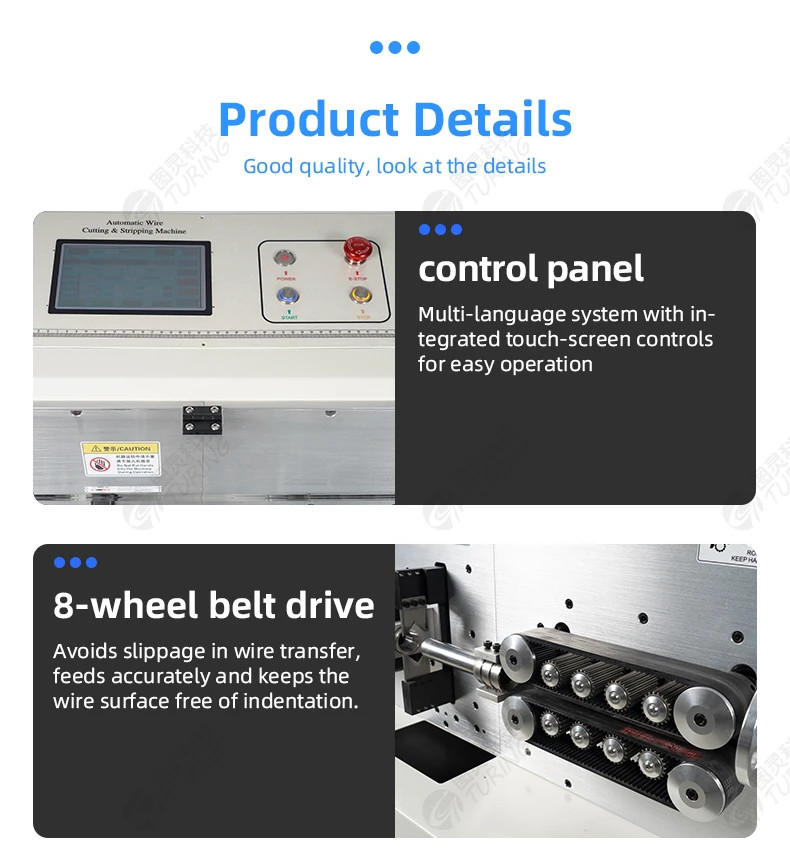

Driving mode: 8 wheels belt drive (silent hybrid stepping motor, each step forward 0.1mm)
Driving method of tool holder: servo motor driver, ball grinding screws
Appearance size: 1260x830x1170mm
Maximum diameter of conduit: ¢27

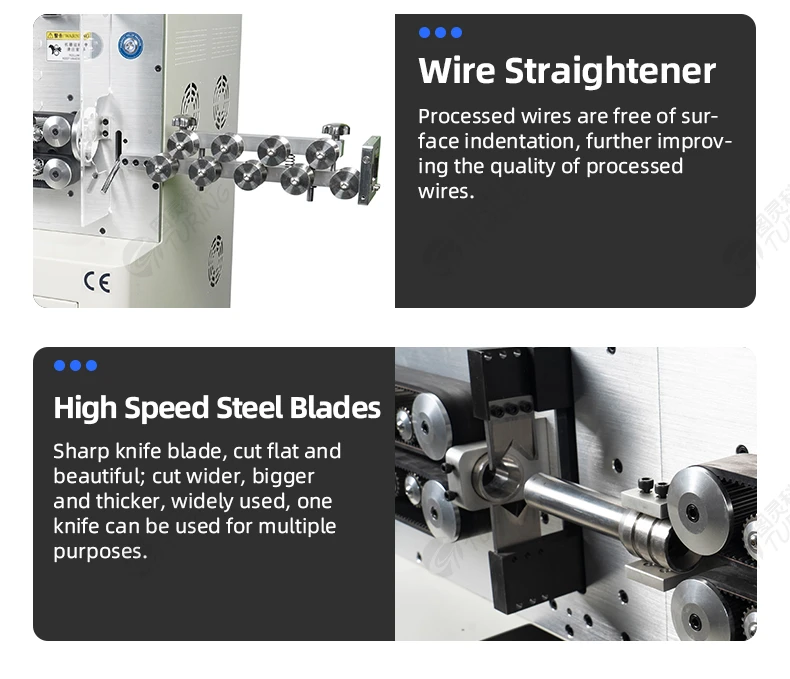

Blade material: imported high-speed steel
Warranty: 3 years
