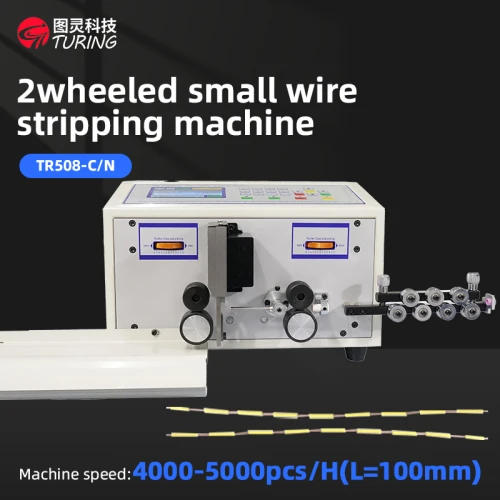

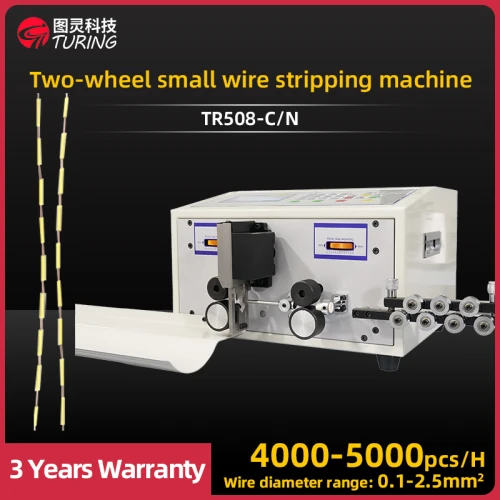

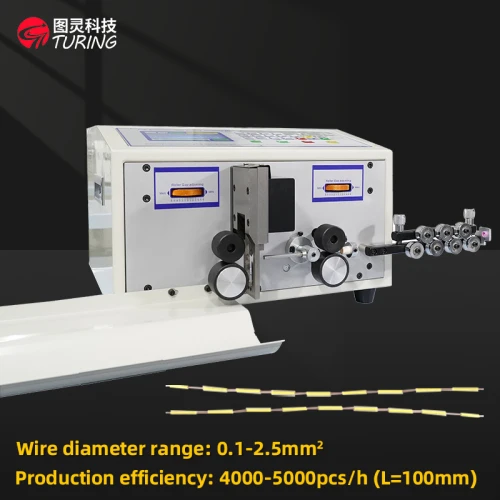

TR508-C/N Two-wheel small wire stripping machine
TR508-C/N Two-wheel small wire stripping machine
TR508-C/N Two-wheel small wire stripping machine
TR508-C/N Two-wheel small wire stripping machine
TR508-C/N Two-wheel small wire stripping machine
TR508-C/N Two-wheel small wire stripping machine

TR508-C/N Two-wheel small wire stripping machine

Model
TR508-C/N

Item specifics

Power
AC220/110V/60HZ/50HZ
Name
wire stripping machine
Feature
Stable Performance
Warranty
3year
Contact
CoCo +86 18666170785

Review

Description

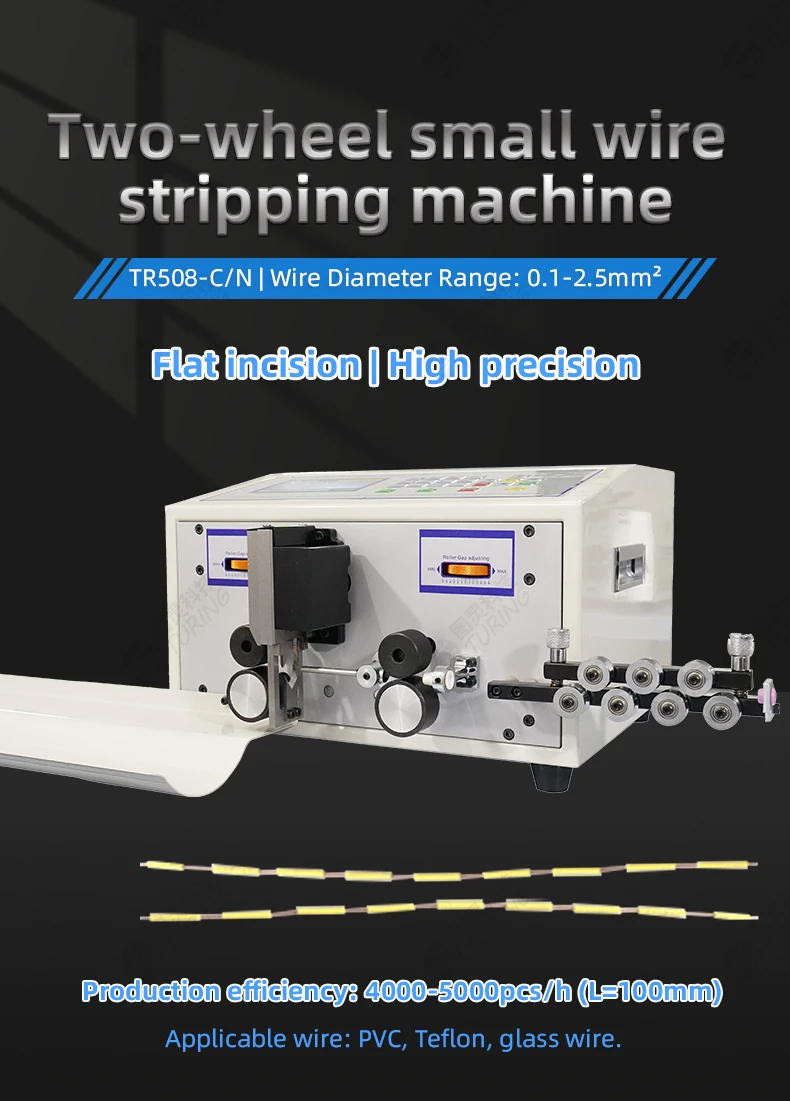

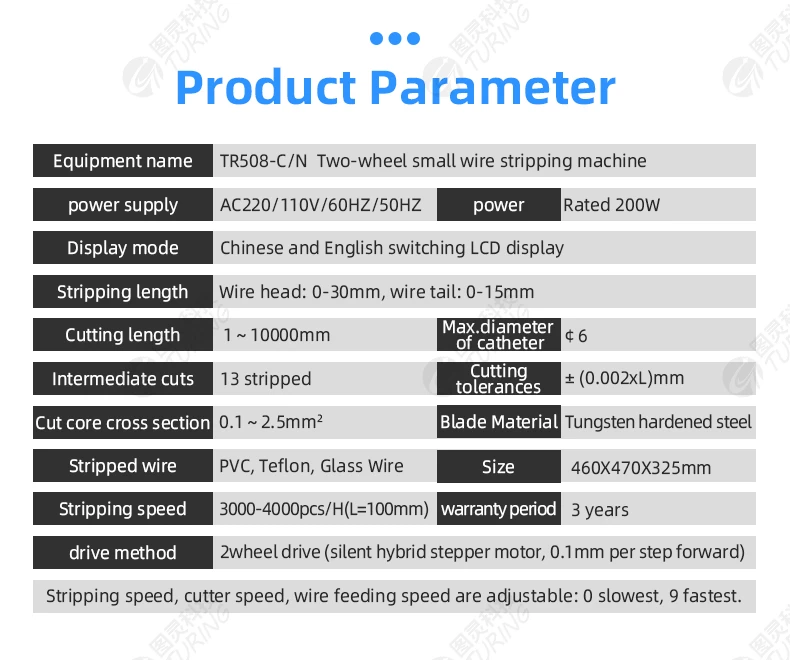

TR508-C/N Two-wheel small wire stripping machine
Power supply: AC220/110V/60HZ/50HZ, rated 200W

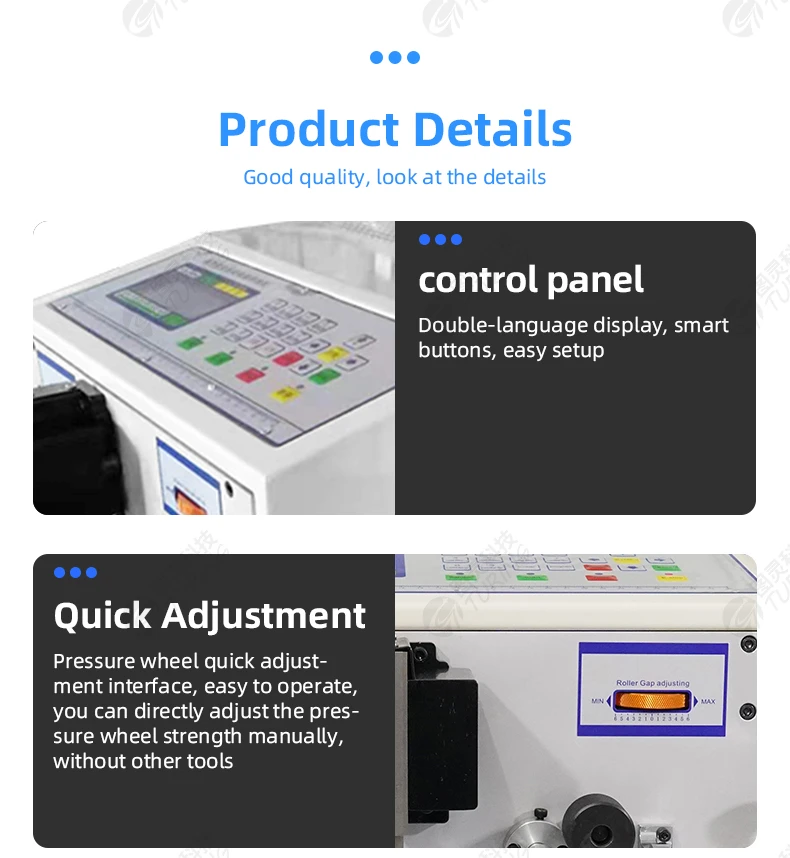

Display mode: Chinese and English switching LCD display
Stripping length: wire head:0-30mm, wire tail:0-15mm
Cutting length:1~10000mm
Middle stripping:13 places stripping
Jaw cutting core section: 0.1~2.5mm².

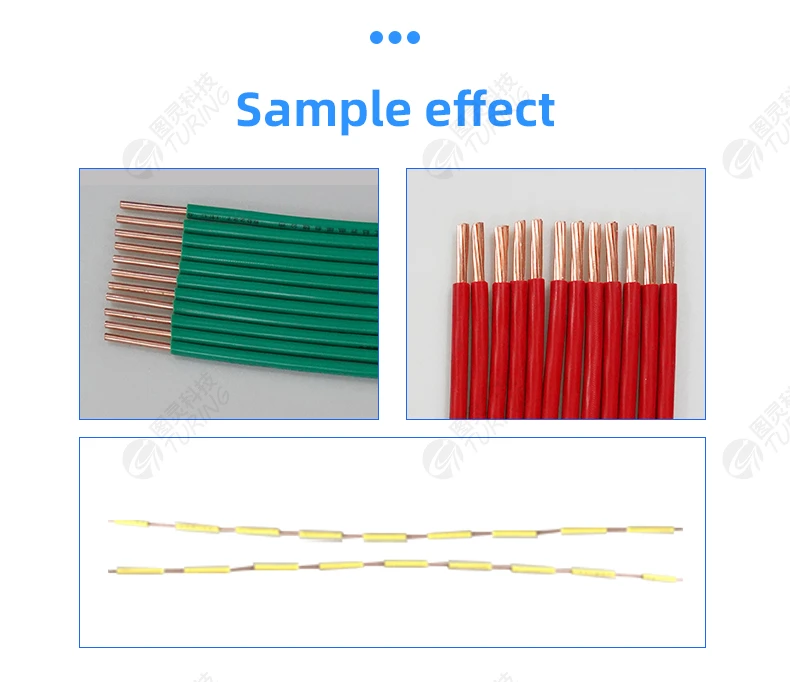

Suitable for stripping wire: PVC, Teflon, glass wire.
Stripping speed:3000-4000pcs/hour(L=100mm)
Drive mode: two-wheel drive (silent hybrid stepping motor, each step forward 0.1mm)
Dimension:460X470X325mm
Maximum diameter of conduit: ¢6
Cutting tolerance：±(0.002xL)mm

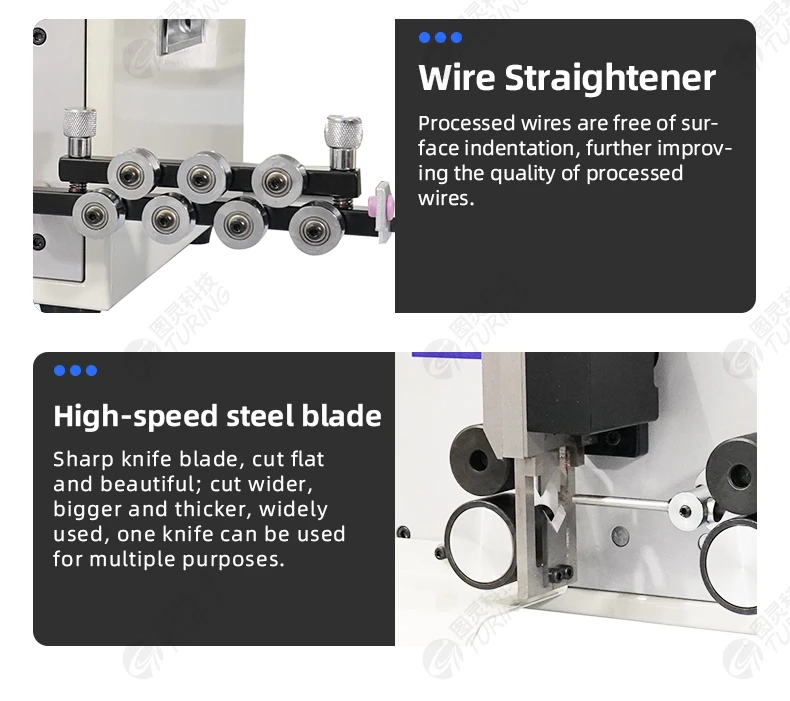

Blade material: hard tungsten steel
Warranty: 3 years
