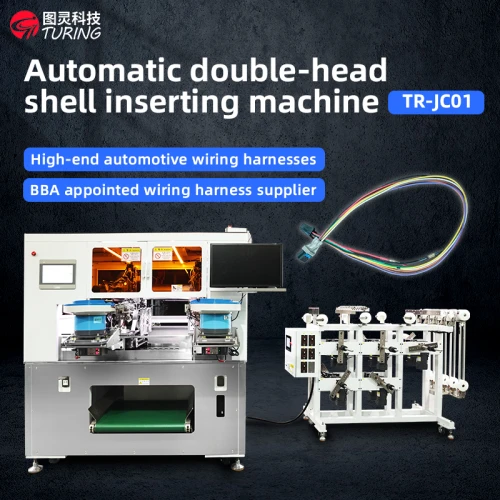

TR-JC01 Double-head mobile vibrating plate long and short line rubber shell inserting machine

High-end automotive wiring harnesses

BBA appointed wiring harness supplier

Suitable for single-layer plastic shells, double-layeplastic shells, multi-layer plastic shellsEquipped with protective cover and MES interfaceThe equipment is capable of separating defectiveproductsEquipped with CCD visual inspection functionSimultaneous clamping of 10 types of wires ofdifferent colors

Efficiency:5p: Both ends of the shell1600 lines/hour,320 sets/hour.

Achieved Functions: fixed length cut-off + single anddouble-end half/full stripping + single and double-end crimping +pressure detection + CCD visual appearance inspection cross insertionof rubber shells + pull-back test

Equipment features

1.Applicable to single layer rubber shell, double layer rubber shell, multi-layer rubber shell;2. Shell loading mode: vibrating plate loading (standard machine), optional robot loading,manual loading mode is optional;

3. The equipment is equipped with a protective cover, linked to the MES interface.

4. The equipment can achieve the distinction between defective products.

5. insertion mode for single-line insertion mode, while insertion is equipped with pull-backdetection system;

6. Switching machine convenient, the system can save the product transfer parameters, such asthe wire used, terminals, moulds, rubber shell type, product wiring position, and then productioncan be called directly to the archives, saving switching time;

7.The equipment is equipped with CCD visual inspection function.

8. The equipment is equipped with japan Solu's CFM pressure management device.9. 10 kinds of wires of different colours can be clamped at the same time;

10.Cross-insertion shell to choose one of the processing mode.
