TR-H12 One-output 5 Cable Sleeve Heat-shrinkable Tube Baking Machine
- Model
- TR-H12
Item specifics
- Power
- AC220V/50HZ,
- Application
- One-output 5 Cable Sleeve Heat-shrinkable Tube
- Feature
- Stable Performance
- Warranty
- 1year
- Control
- Servo and Step motor
- Contact
- Coco 0086-18666170785
Review
Description
TR-H12 One-output 5 Cable Sleeve Heat-shrinkable Tube Baking Machine
Applicable wires：Electronic wire, silicone wire, multi-core wire, multi-core over-powdered wire, isolation wire, etc.
Size & weight：L500 x W640 x H1300mm，Approx. 78KG
power supply：1350W AC220V50/60HZ
capacities：700-2500pcs/hour (depending on the wire)
Casing Compatibility Range：1.0φ/6.5φ standard (7.0 or more customized)
Casing baking length：4mm-50mm (optional jig)
Baking temperature：200°C-380°C (adjustable by thermostat)
Pneumatic：5.5/6.5KPa
Temperature：0℃-50℃
Humidity level：10%RH~90%RH (no condensation)
Anti-interference capability：Interference voltage: 1500Vp-p Pulse period: 1us Duration: 1 minute

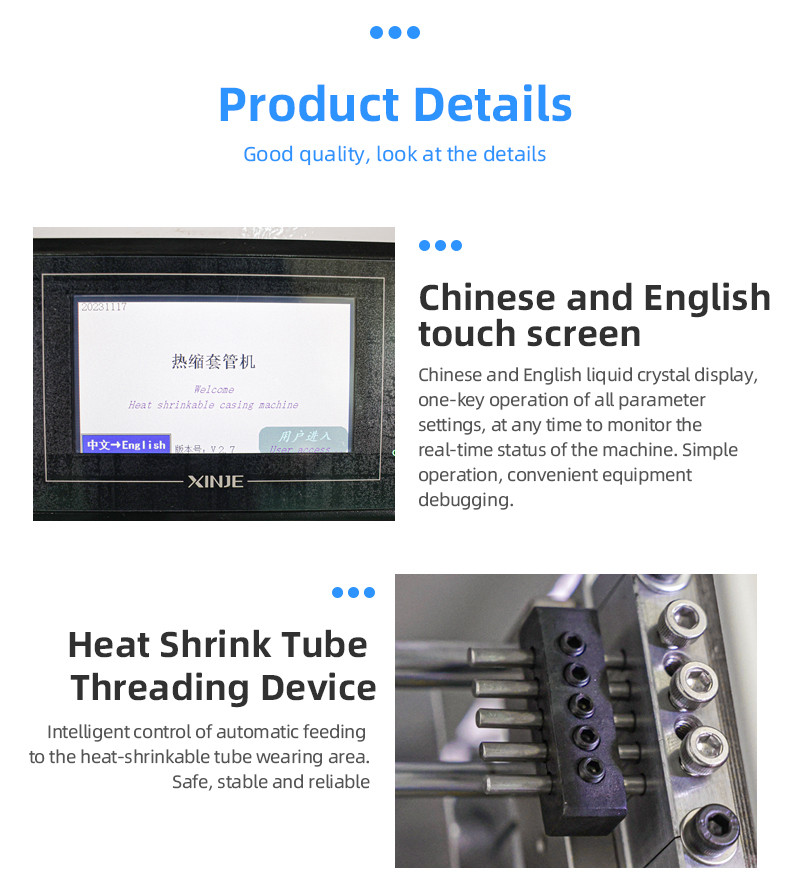

Chinese and Englishtouch screen
Chinese and English liquid crystal display,one-key operation of all parameter settings, at any time to monitor thereal-time status of the machine. Simple operation,convenient equipment debugging.
Heat Shrink TubeThreading Device
Intelligent control of automatic feeding to the heat-shrinkable tube wearing area. Safe,stable and reliable
Introducer clip
1.The same diameter heat shrink tubingcan be stacked with multiple turntables,no need to replace the turntable workagain, saving time and labor.
2.One turntable is compatible with 2different diameters.
3.Manually thread the wire into the guideclip, which inserts it into the casing toensure that the casing will not be movable
4.Pneumatic regulating valve
Waterproof, fire proof and moisture-proof function can separate the oil and water when themachine is running, so that the machine can run stably
Laser coding device
1.Through the upper computersoftware to realize the automatic printing of heat-shrinkable tube labels,characters can be set freely,can realize the two core line different label printing
2.Adopt violet light source printingtechnology,clear printing font,waterproof and oil-proof.
3.Laser printing without the use ofconsumables
