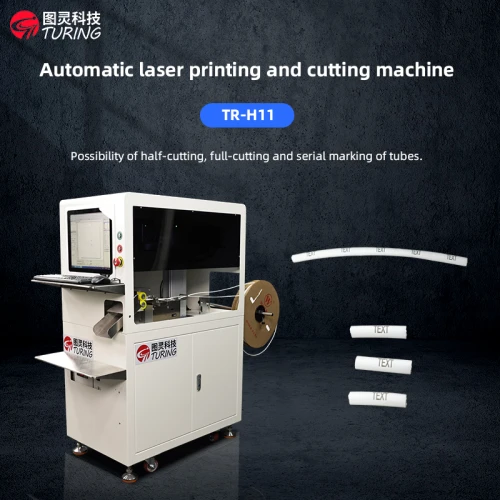

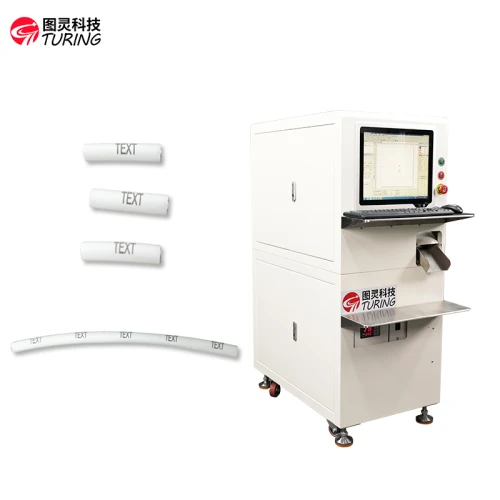

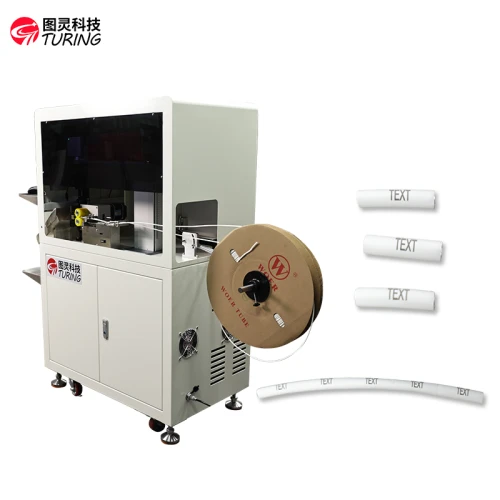

TR-H11 Semi-automatic Laser Coding and Number Tube Cutting Machine
- Model
- TR-H11
Item specifics
- Power
- AC220V/50HZ,
- Application
- Cutting Machine
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Coco 0086-18666170785
Review
Description
TR-H11 Semi-automatic Laser Coding and Number Tube Cutting Machine
Equipment efficiency：4500pcs/h (depending on print content)
Laser type：UV marking
Air source：0.6-0.8Mpa
Pipe Size：Flat tube 1-40 mm; Round tube Φ2-Φ6
Tube cutting length：10-300 mm
Environmental
temperature：-5 to 40°C
Cutting accuracy：0.01 mm
Power source：AC 220V 50/60Hz
laser power：3w
power：0.8kw
Cutting accuracy：±(0.1+0.005*L)mm
Size：L900*W500*H1400 mm
Equipment features
Half cut, full cut, serial marking of tubes is possible.
Full cut processing, single tube processing efficiency upto 6000pcs/h,double tube processing efficiency12000pcs/h.
Compact integrated design, simple and beautiful smallfootprint.
Pipe cutting length is adjustable, and the number ofpipes to be cut can be set.
No loss of consumables, saving production costs.
Full cut and half cut modes can be switched on and offat the same time.
Fine laser beam,processing material consumption isvery small, processing heat-affected zone is small.
Wide range of tubes to be coped with, highapplicability.
Non-contact processing, no damage to the product, nodiscolouration of the line number.
Pipe diameter 1-40mm round tube, flat tube universal.
Numerical control interface,easy to learn and use.
Functions: consumable-free laser marking, full-cut numbered tubes,half-cut numbered tubes, printing by form sequence, customised marking;
computer control
Adopting microcomputer operationpanel makes the operation of themachine easier and more convenient.Customisable printing content
