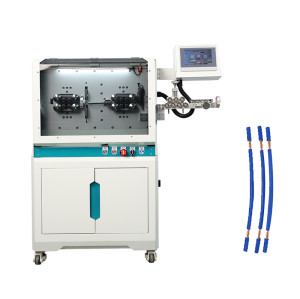

TR-SD-N Small four-wheel short wire stripping machine
- Model
- TR-SD-N
Item specifics
- Power
- AC220V/50HZ,
- Name
- wire stripping machine
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Lily 0086-13715588365
Review
Description
TR-SD-N Small four-wheel short wire stripping machine
Weight: 27KG
Power supply: AC220/110V/60HZ/50HZ Motor power: rated 200W
Display mode: Chinese and English switching LCD display
Appearance size: 420X390X260
Cutting length: 1～10000mm
Stripping length: thread head 0-30mm, thread tail: 0-15mm
Cutting tolerance: ± (0.002xL)mm Intermediate stripping: Thirteen places
Cutting wire core section: 0.1～4mm2
Maximum diameter of conduit: ￠6
Suitable for stripping wire: PVC, Teflon, glass wire
Blade material: hard tungsten steel
Stripping speed: (L=100MM/hour) 4000-5000
Drive mode: four-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)
Wire stripping speed: cutter speed and wire feeding speed can be adjusted separately: 0 is the slowest, 9 is the fastest
The fully automatic computerized wire stripping machine produced byourfactoryis widely used in wire harness processingin variousindustriessuch as wire harnesses,automotive electricalappliances, instruments andmeters, lamps, household appliances, etc., such as: single-stranded wire,multi-stranded wire, sheathed wire, etc.The processingmethods are: cutting,strippinghead and tail, middle stripping, bending, twisting, etc. Themaximum processingcross-sectional area is 0.1-90mm2, and the maximumlength of the cuttingsection is 100 meters. The main function of themachineis to strip the plastic sheath and the metal core of the wire.
