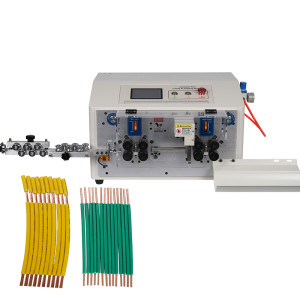

TR-MAX2-S95 Semi-Automatic BVR 95 Square Wire Stripping Machine
- Model
- TR-MAX2-S95
Item specifics
- Power
- AC220V/50HZ,
- Name
- Mute Terminal Machine
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Lily 0086-13715588365
Review
Description
TR-MAX2-S95 Semi-Automatic BVR 95 Square Wire Stripping Machine
Display mode: Chinese and English operation interfaces can be switched each other (7-inch touch screen is used)
Processing circular sheath outer diameter: the maximum outer diameter of 15 mm can be cut and peeled round sheath
Processing maximum cross-sectional area: 1-95mm2
Air pressure: 0.8Mpa
The largest diameter of the catheter: ￠22
Peeling accuracy: ±0.2mm
Cutting length: up to 400m
Stripping length of round sheath: full stripping of wire ends (1-200mm) full stripping of wire tails (1-150mm)
95 square stripping length: head stripping 1-50MM, tail stripping 1-50MM
Blade material: imported high-speed steel
Stripping speed: 200mm length unit: 3000-4000 wires/hour
Drive mode: 8-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)
Tool post drive mode: (servo motor drive, ball grinding screw)
Welcome to send wire to test the machine , others machine : wire winding machine , tying machine , cable tie machine , tape wrapping machine
