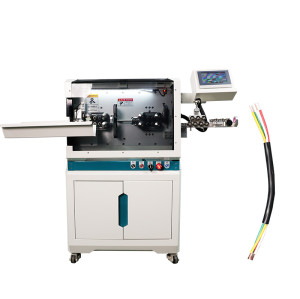

TR-8030H sheathed wire multi-core 30mm² wire automatic inner and outer sheath wrei stripping machine
TR-8030H sheathed wire multi-core 30mm² wire automatic inner and outer sheath wrei stripping machine
TR-8030H sheathed wire multi-core 30mm² wire automatic inner and outer sheath wrei stripping machine
TR-8030H sheathed wire multi-core 30mm² wire automatic inner and outer sheath wrei stripping machine
TR-8030H sheathed wire multi-core 30mm² wire automatic inner and outer sheath wrei stripping machine
TR-8030H sheathed wire multi-core 30mm² wire automatic inner and outer sheath wrei stripping machine
Model
TR-8030H

Item specifics

Power
AC220V/50HZ,
Name
Wire Stripping Machine
Feature
Stable Performance
Warranty
1year
Contact
Lily 0086-13715588365

Review

Description

TR-8030H sheathed wire multi-core 30mm² wire automatic inner and outer sheath wrei stripping machine
Equipment name:TR-8030H Sheathed Wire Multi-core Wire Automatic Innerand Outer Cable Stripping Machine
Applicable wires:Electronic wire,silicone wire, tinned wire, multi-core wiremulti-core over-powdered wire,isolation wire, etc.
Catheter Diameter:Ф16mm Maximum
Wire Diameter Range:1-30 square (including sheathed wire below 7 cores)
Cutting Tolerance:+(0.002mmL)(Lindicates cutting length)
Stripping length:Front Stripping: outer sheath 10-150mm, inner core wire 1-50mm.
Rear Stripping: Outer sheath 10-80mm,inner core 1-50mm.
Cutting line length:0.1mm-99999.9mm
Wire feed method:Belt feed, no embossing or scratches on cables
monitor:7-inch true color touch screen
Driving method:16-wheel drive (silent hybrid stepper motor, servo tool holder)
Production capacities:2000pcs/hour,(Sheathed wire 800pcs/hour)depends on thelength and size of the wire.
Round jacketed wire stripping, core wire stripping at the same time, cutting in one go
Round sheathed wire is cut off at one time with no indentation on the outer skin. Theknife frame adopts heat treatment grinding process ofimported materials.
