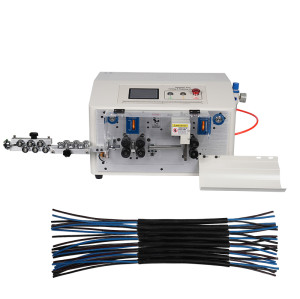

TR-810NJ fully automatic precision internal and external peeling machine with robot arm
- Model
- TR-810NJ
Item specifics
- Power
- AC220V/50HZ,
- Name
- Wire Stripping Machine
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Lily 0086-13715588365
Review
Description

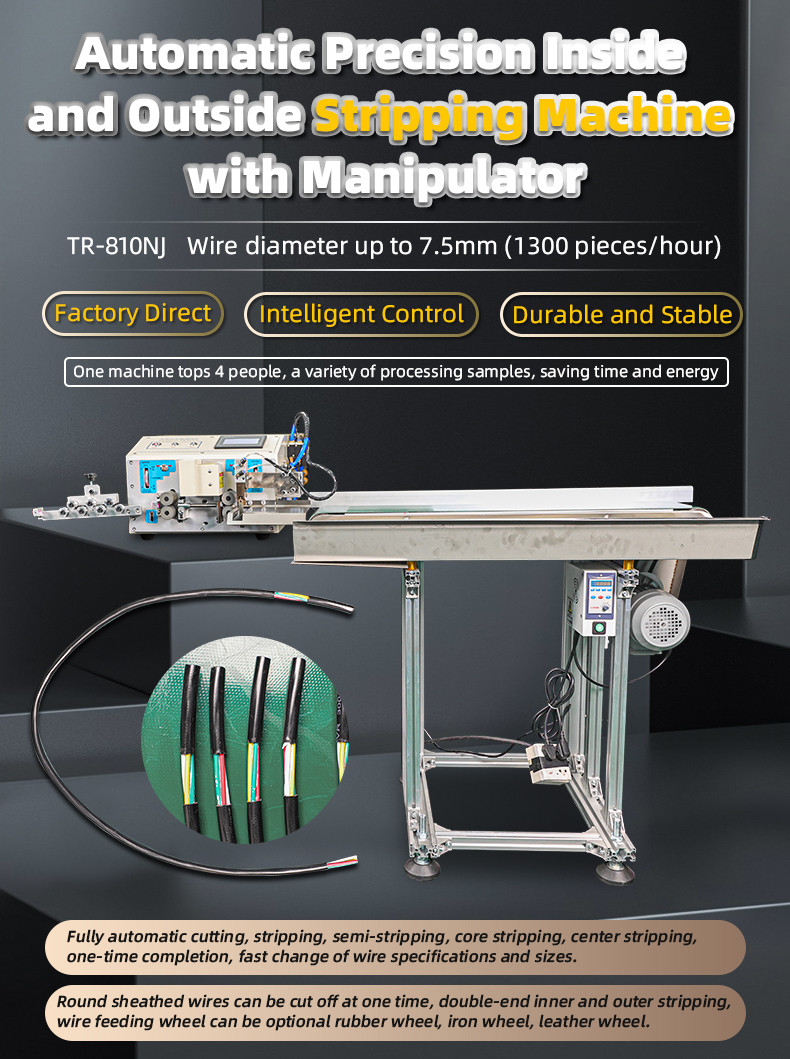

TR-810NJ fully automatic precision internal and external peeling machine with robot arm(one-touch wheel lifting)
Power supply: 220V～50-60Hz Operation : 5-inch touch screen display
Net volume:L460mm*W480mm*H330mm
Net weight:38kg
Peeling length: front end 0-500mm, rear end 0-90mm
Stripping wire length: 0-30mm Conduit inner diameter: 4/5/6/8 Conduit control method: motor
Wire application range: within 7.5mm (depending on the material of sight) Number of wheels: 8 (4 rubber wheels/iron wheels each)
Drive mode: 4 wheel drive
Capacity: 100mm/500mm/1000mm (1300 pieces)/1100 pieces/900 pieces per hour) (depending on the material)
Suitable for electronic wires, multi-core wires, protective sleevesrow of wires and other wiring harness processing industry.
Equipment name:TR-810NjAutomatic Precision inner and Outer StrippingMachine with Manipulator
Applicable wires:Electronic wire,silicone wire, tinned wire, multi-core wire multi-core over-powdered wire, isolation wire, etc.
Quick Adjustment of Crimping Wheel Direct manual adjustmentof crimp wheel strength Easy to operate, no other tools required
