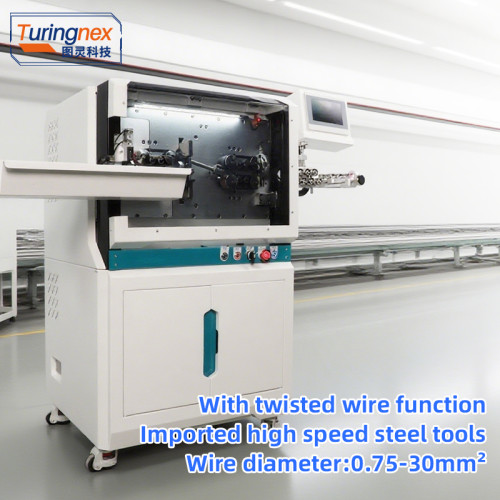

TR-603HNYJ 30 square computerized wire stripping machine (Wire diameter range:0.75-30mm²)
- Model
- TR-603HNYJ
Item specifics
- Power
- AC220/110V/60HZ/50HZ
- Name
- wire cutting machine
- Cutting length
- 1mm-999999.99mm
- Scope of processing
- 0.75-30mm²
- Contact
- CoCo +86 18666170785
Review
Description

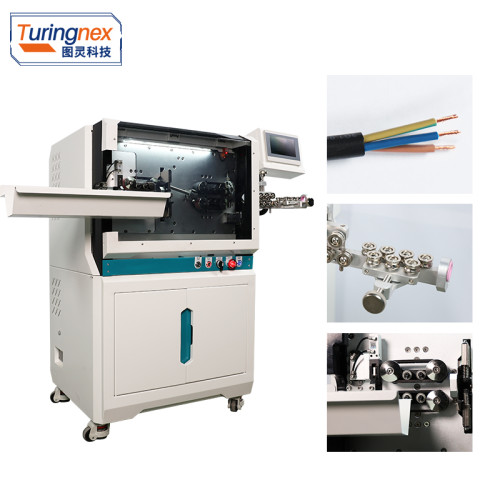

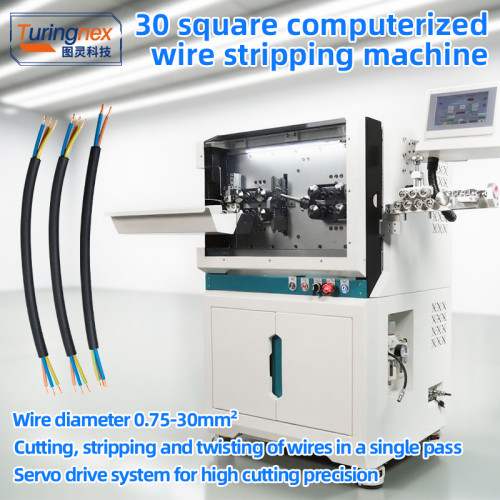

TR-603HNYJ 30 square computerized wire stripping machine
Size and weight: 707 * 590 * 1140mm, 140kg

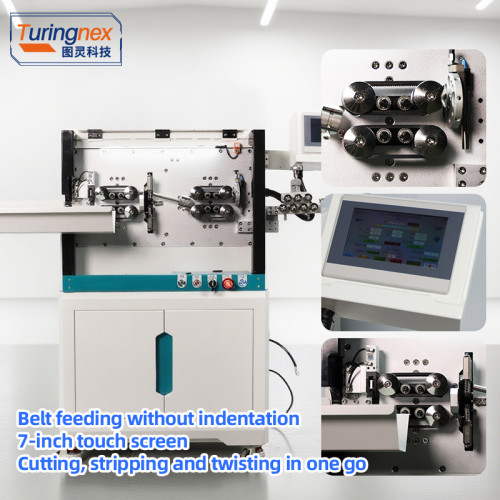

Display: 7-inch man-machine interface
Function: ① single-core wire, multi-core cable line, shielded cable, automatic fixed-length cutting, stripping;
② multi-core sheath line, outer skin stripping, inner core line stripping, cutting, twisting completed at once.
③ Single-core multi-stranded wire/multi-core multi-stranded wire, twisted wire
④ Positive twisting, reverse twisting, retreating twisting
Type of conductor: single-core wire, multi-core cable wire, sheathed wire, electric wire, PVC, etc.
Processing range: 0.75-30mm²
Cutting length: 1mm-99,999,999.99mm
Cutting tolerance: 0.002*L or less (L=cutting length)
Stripping length: front stripping: outer sheathed full 10-200mm, inner core wire 1-50mm after stripping Core wire 1-50mm
Rear Stripping: outer sheath 10-80mm, inner core wire 1-50mm

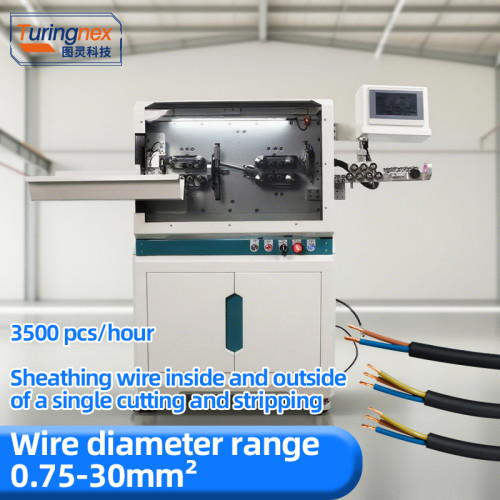

Stripping Speed: 3500 PCS/hour, sheathed wire 900pcs/H (according to the wire)
Feeding Method: Belt feeding, no embossing or scratching on the cable. (with stripping and pressurizing function)
Driving mode: 16 wheels drive (feeding stepping motor, knife frame \ rotary knife servo motor); optional full servo
Lifting and lowering operation: digital adjustment of the height of the pressure wheel
Allowed to pass through the maximum diameter: ¢ 18
Air source: 0.5Mpa clean air source
Remarks: Limit cut-off capacity of 50 sq. ft.
