TR-JL1 Semi-automatic caster positioning and twisting screw machine
- Model
- TR-JL1
Item specifics
- Speed
- 17pcs/min
- Working Air Pressure
- 0.55-0.8MPa
- Equipment Size
- 1495x1054x1568mm
Review
Description

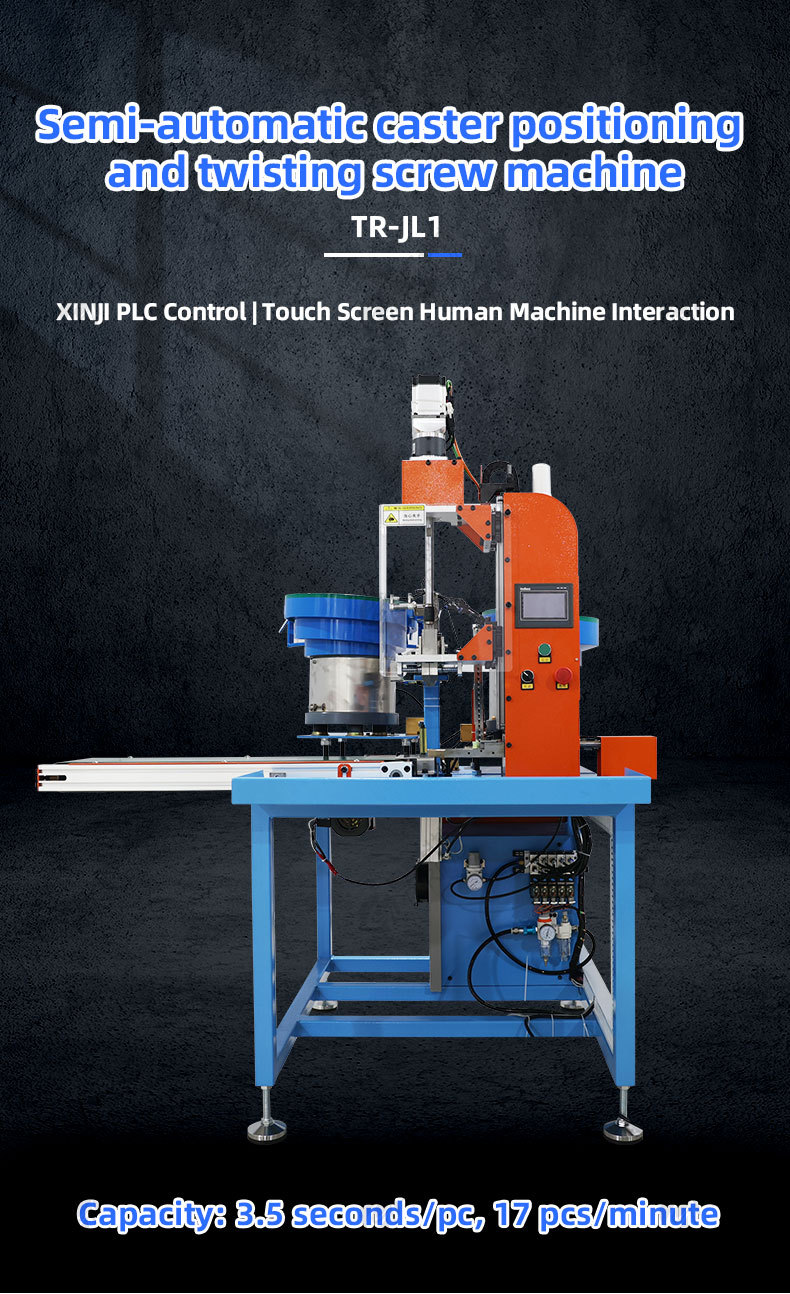

TR-JL1 Semi-Automatic Caster Positioning and Twisting Screw Machine
Power supply : AC380V/AC220V/50HZ，1.5kW
Equipment Size : 1495x1054x1568mm
Work environment : 0.55-0.8MPa
Product efficiency : 3.5 sec/pc, 17 pcs/minute
Materials used in equipment
1) Adopt square tube mechanism frame, the main body adopts 6061 aluminum alloy and high quality steel;
2)Using Taili speed control motor, CUEC asteroid reducer, XINJIE PLC, XINJIE servo motor, and Weilantong touch screen;
3) Pneumatic components are all Star brand;
4) Mechanical standard parts are adopted Shanglong brand;
5) Sensors, proximity switches, photoelectric switches, fiber optic sensors are used in Aliflex brand.
Specificities
1)Screws and nuts are loaded by vibrating disk for fast stability and long-lasting production;
2)The screw is sent to the fixed station by direct vibration, and the automatic directional sequential feeding improves the production efficiency;
3) Locking mechanism through the planetary reducer and servo motor fast locking nut, to achieve efficient and reliable, stable locking nut;
4) Simple debugging, low noise, small machine footprint.
