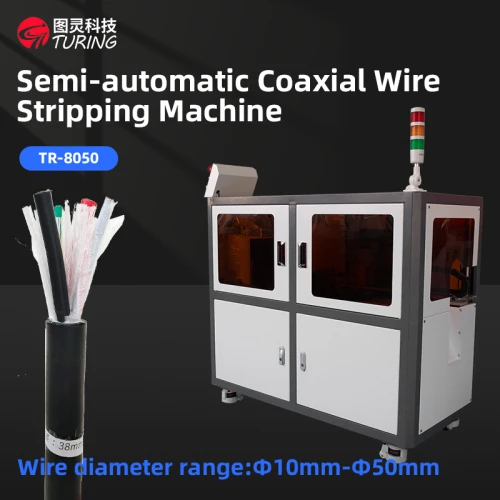

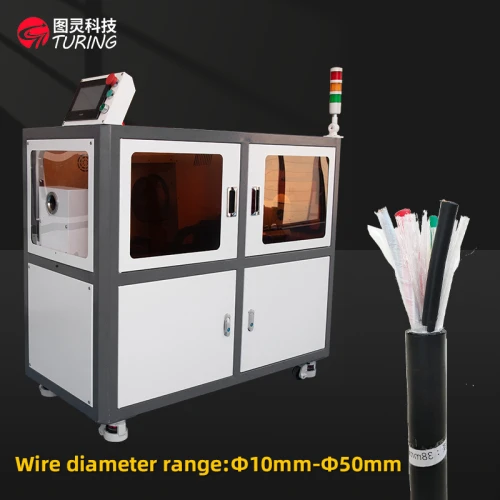

TR-8050 Semi-automatic Coaxial Wire Stripping Machine
- Model
- TR-8050
Item specifics
- Power
- AC220V/50HZ,
- Function
- Cable Stripping Machine
- Cable diameter
- Φ10mm-Φ50mm
Review
Description

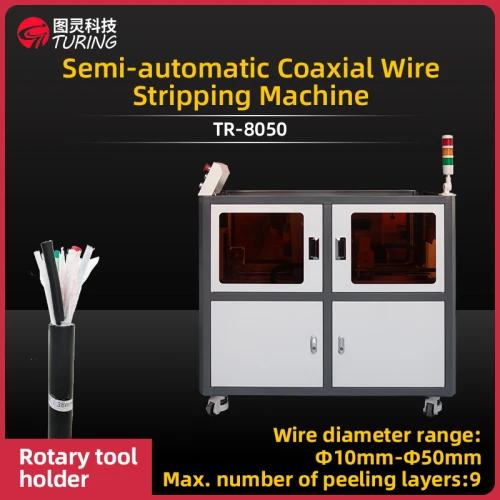

TR-8050 Semi-automatic Coaxial Wire Stripping Machine
Power supply: AC220V 50Hz
Size and weight: 1230x600x1240mm, 200kg
Wire diameter range: Φ10mm-Φ50mm
Stripping length: 10mm-800mm
Cutting depth unit: 0.01mm
Maximum number of peeling layers: 9 layers
Working environment: -5~45 degrees dry and vibration-free working surface
Driving mode: motor / Taiwan TBI ball screw drive

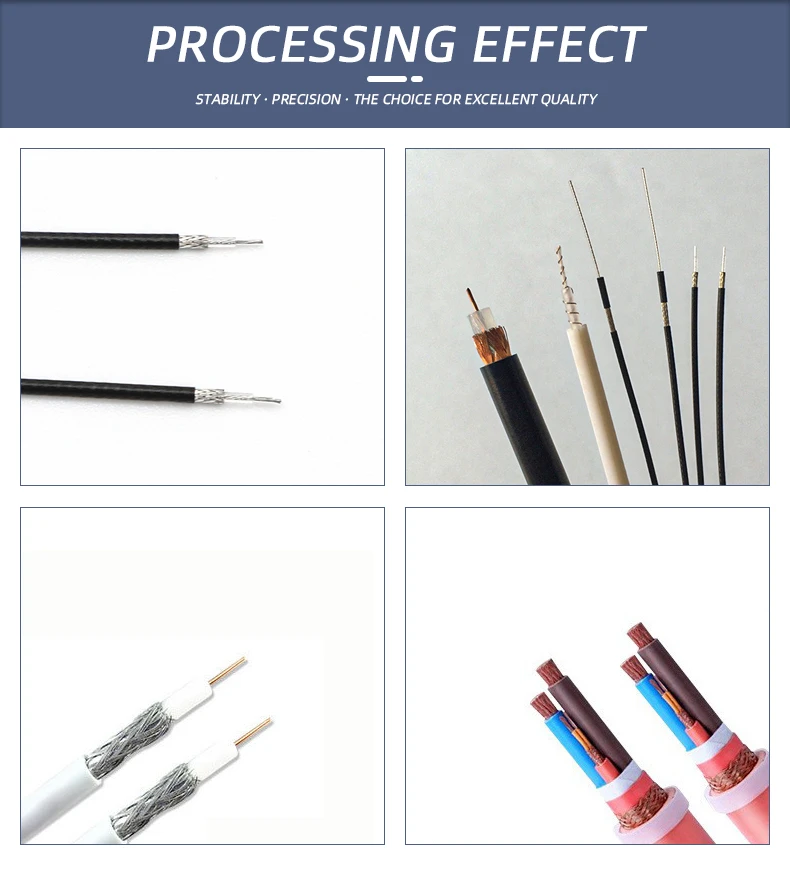

Applicable wire: coaxial cable, new energy cable

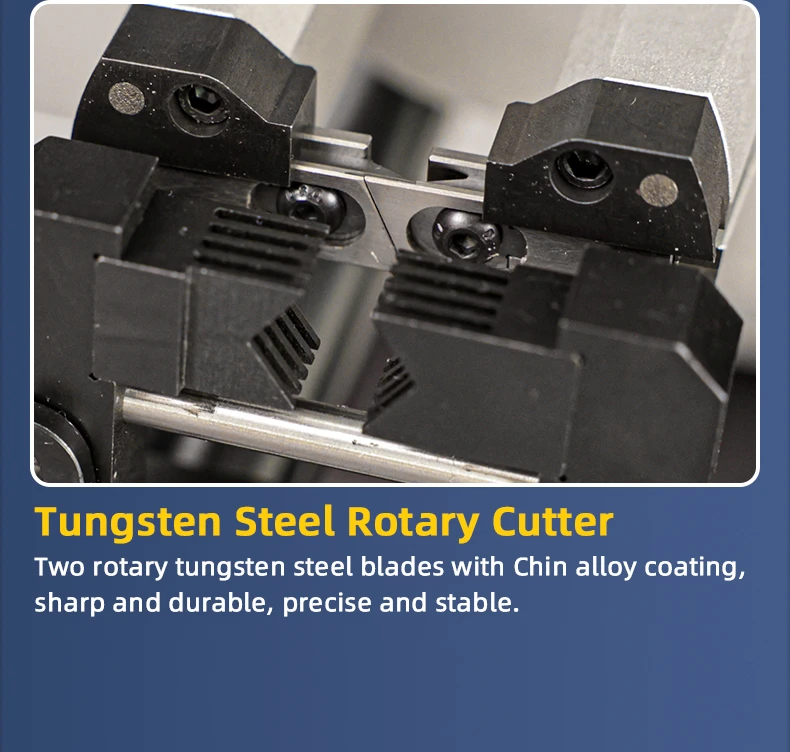

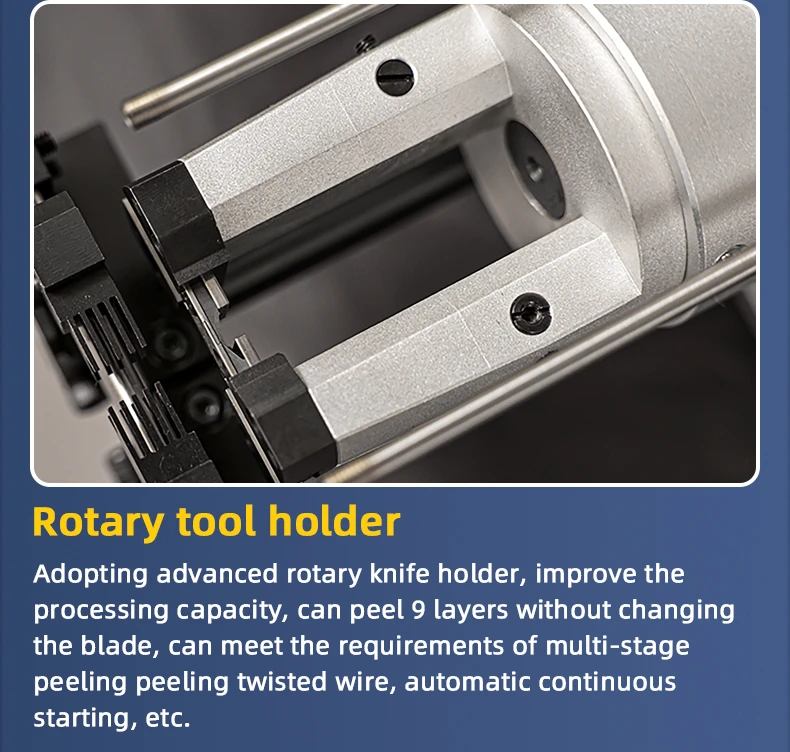

Rotary cutting blade: 4 pieces of imported tungsten steel
Centering blade: 4 pieces of imported high-speed steel
Clamping device: automatic centering, motor drive, clamping force program control
Start-up mode: induction / manual / foot pedal (optional)
Storage function: 99 kinds of processing parameters
