TR-12 Tubular Terminal Crimping Machine
- Model
- TR-12
Item specifics
- Power
- AC220V/50HZ,
- Application
- Aviation Pin Terminal Crimping Machine
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Coco 0086-18666170785
Review
Description

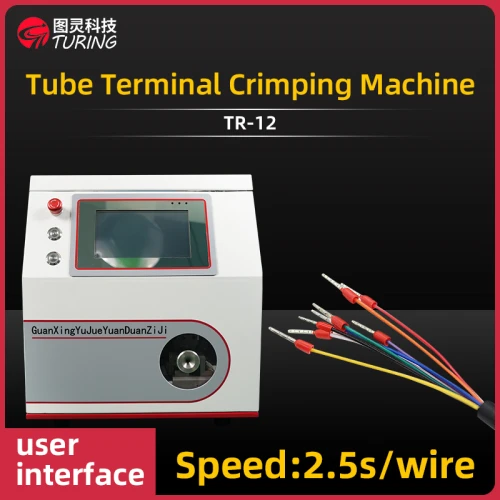

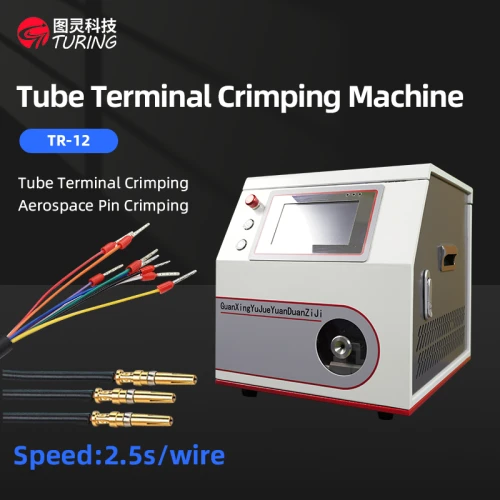

TR-12 Tubular Terminal Crimping Machine
Wire Gauge : Suitable for BVR hard wire 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 sq. ft
Terminal Specifications : Tube type pre-insulated terminals, insulator (round) length 7.
Crimp shape : Quadrilateral Crimp (Imitation Square)
Operating mode : Automatic trigger operation and manual operation
Control method : Human-machine interface, electronic control, pneumatic control
Replacement products : Manual replacement of relevant parts, adjustment of vibration discs
and motorised memory adjustment.
Capacity : 2.5S/wire (considered as a single run cycle of the machine)
Testing items : Terminal presence detection, right side safety door opening detection
Operating
temperature : 10~20°C (ambient temperature)
Overall dimensions : W350mm×L450mm×H400mm (excluding projections)
Power supply : External input power AC220V 50/60HZ10A; internal power DC24V, DC12V
Air supply : 0.6-0.8 MPA (please use a stable, clean and dry gas source, and keep
the access gas source at no less than 0.6 MPA)
Weight : Approx. 40KG
