TR-ARM-09A Fully Automatic Double Head Copper Tape Machine
- Model
- TR-ARM-09A
Item specifics
- Power
- AC220V/50HZ,
- Name
- Copper Tape Crimping Machine
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Lily 0086-13715588365
Review
Description

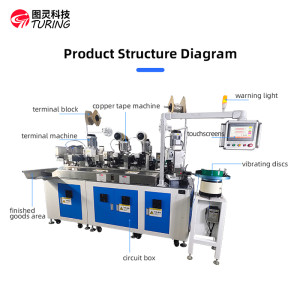

TR-ARM-09A Fully Automatic Double Head Copper Tape Machine
Machine functions:Automatic Wire Cutting + Stripping + Terminal Punching + Crimping
Terminals + Bulk Resistor Automatic Feeding + Resistor
Forming + Riveting Resistor (U-Terminal/Copper Strip) + Sleeving
Wire Diameter:AWG18#-32#
riveting force:2.0-3.0KG
Wire processing length:45mm or more on one side (special lengths, if any, can be customised)
processing speed:4.5s/pcs,700-800pcs/H (L=60-300mm)
Applicable width/thickness of copper strip:Width: 2-8mm; Thickness: 0.3-0.5mm
Product pullout force:2-20kg (assessed on crimp product)
Resistance cut-off length:Adjust the length according to the product
Size & Machine weight:1800x1100x1650mm,About 800-1000KG
Driver Configuration:Servo Motors / Asynchronous Motors
Motor power:0.75-1.5kW.
Description of features
This equipment can automatic feeding, automatic wire feeding, wire cutting, strippingterminal riveting, copper strip riveting, wearing sheath tube, wearing heat-shrinkablesleeve, heat-shrinkable function, to achieve continuous, efficient, high-quality auto-mated production of products.
1. The equipment is stable and reliable continuous production, the shape is generousand beautiful, easy to operate and debug;
2. The quality of finished products can meet the sample requirements;
3. Equipment production beat: single wire end riveted wire terminals, wire length60-300mm for example; product production cycle of
4.5S/PCS, capacity700-800PCS/H4. All parts are blackened, chrome plated and anodised. The frame and sheet metalare made of cold rolled plate and stainless steel 304, and the mechanical parts areequipped with safety guards;
5. Adopting human-machine interface and CNC controller, with wire, casing and ther.mal device lack of material, rewinding and other abnormal stopping alarm function.
