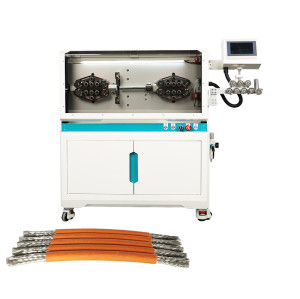

TR-508-C/N Two-wheel small wire stripping machine
TR-508-C/N  Two-wheel small wire stripping machine
TR-508-C/N  Two-wheel small wire stripping machine
TR-508-C/N  Two-wheel small wire stripping machine
TR-508-C/N  Two-wheel small wire stripping machine
TR-508-C/N  Two-wheel small wire stripping machine
Model
TR-508-CN

Item specifics

Power
AC220V/50HZ,
Name
wire stripping machine
Feature
Stable Performance
Warranty
1year
Contact
Lily 0086-13715588365

Review

Description

TR-508-C/N  Two-wheel small wire stripping machine
Weight: 25KG
Power supply: AC220/110V/60HZ/50HZ
Motor power: rated 200W
Display mode: Chinese and English switching LCD display
Appearance size: 420X390X260
Cutting length: 1~10000mm
Stripping length: thread head 0-30mm, thread tail: 0-15mm
Cutting tolerance: ± (0.002xL)mm
Middle stripping and cutting: thirteen places
Cutting wire core section: 0.1~2.5mm2
Maximum diameter of conduit: ¢6
Suitable for stripping wire: PVC, Teflon, glass wire
Blade material: hard tungsten steel
Stripping speed: (L=100MM/hour) 4000-5000
Drive mode: two-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)
Wire stripping speed: cutter speed and wire feeding speed can be adjusted separately: 0 is the slowest, 9 is the fastest
TR-508-C/N (two-wheel small wire stripping machine)
TR-508-C/N (two-wheel small wire stripping machine)
TR-508-C/N (two-wheel small wire stripping machine)
TR-508-C/N (two-wheel small wire stripping machine)
TR-508-C/N (two-wheel small wire stripping machine)
TR-508-C/N (two-wheel small wire stripping machine)
TR-508-C/N (two-wheel small wire stripping machine)
TR-508-C/N (two-wheel small wire stripping machine)
The fully automatic computerized wire stripping machine produced byourfactoryis widely used in wire harness processingin variousindustriessuch as wire harnesses,automotive electricalappliances, instruments andmeters, lamps, household appliances, etc., such as: single-stranded wire.multi-stranded wire, sheathed wire, etc.The processing methods are: cutting,strippinghead and tail, middle stripping, bending, twisting, etc.Themaximum processing cross-sectional area is 0.1-90mm2, and the maximumlength of the cuttingsection is 100 meters. The main function of themachine is to strip the plastic sheath and the metal core of the wire.
