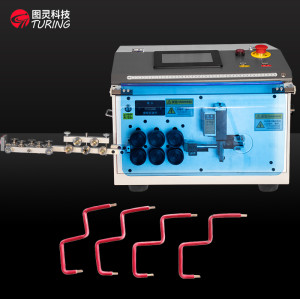

TR-508-16ZW 16 square four-wheel drive wire stripping and bending machine
- Model
- TR-508-16ZW
Item specifics
- Power
- AC220V/50HZ,
- Name
- wire stripping machine
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Lily 0086-13715588365
Review
Description
TR-508-16ZW 16 square four-wheel drive wire stripping and bending machine
（with positive and negative straightener)
Weight: 35KG
Power supply: AC220/110V/60HZ/50HZ
Motor power: rated 500W
Display mode: Chinese and English switching LCD display
Appearance size: 450X420X290
Stripping length: thread head 0.1-20mm, thread tail: 0.1-20mm
Cutting tolerance: ± (0.002xL)mm
Cutting wire core section: 1～16mm2
Maximum diameter of conduit: ￠11
Suitable for stripping wire: PVC, Teflon, glass wire
Blade material: imported high speed steel
Bending speed: (L=100MM pieces/hour) Bending speed 2000-3000
Drive mode: four-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)
Bending shape: can be bent U-shaped, Z-shaped, clockwise and counterclockwise, the bending angle can be adjusted by 30 degrees,
45 degrees, 60 degrees, 90 degrees
The fully automatic computerized wire stripping machine produced byourfactory is widely used in wire harness processingin variousindustriessuch as wire harnesses, automotive electricalappliances, instruments andmeters, lamps, household appliances, etc., such as: single-stranded wire,multi-stranded wire, sheathed wire, etc.The processing methods are: cutting,strippinghead and tail, middle stripping, bending, twisting, etc.Themaximum processing cross-sectional area is 0.1-90mm2, and the maximumlength of the cuttingsection is 100 meters. The main function of themachine is to strip the plastic sheath and the metal core of the wire.
