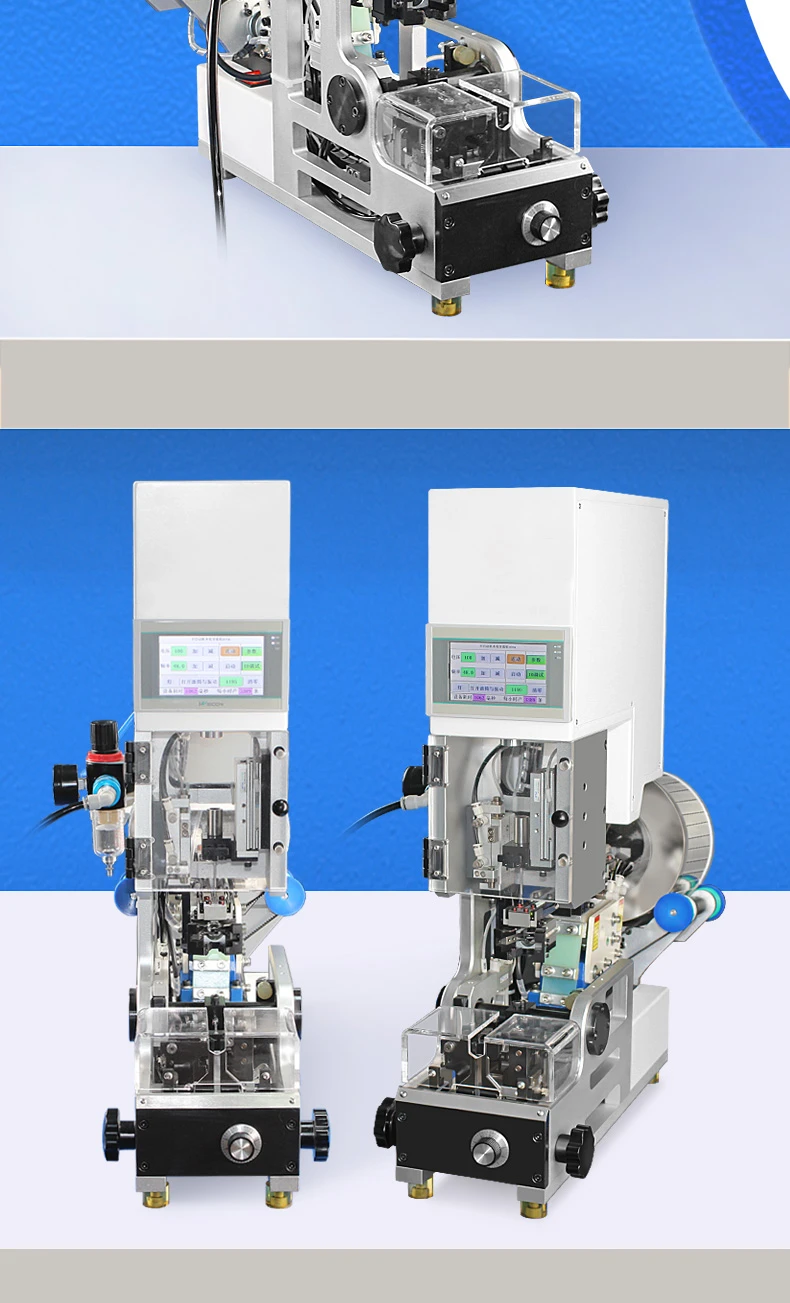

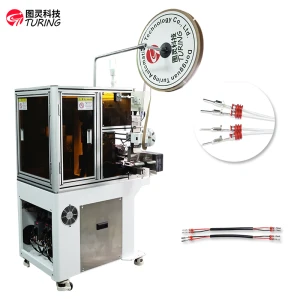

TR-FS16 Semi-Automatic Waterproof Bolt Terminal Crimping Machine

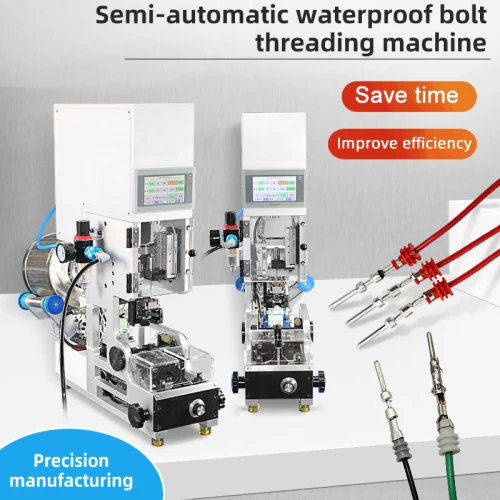

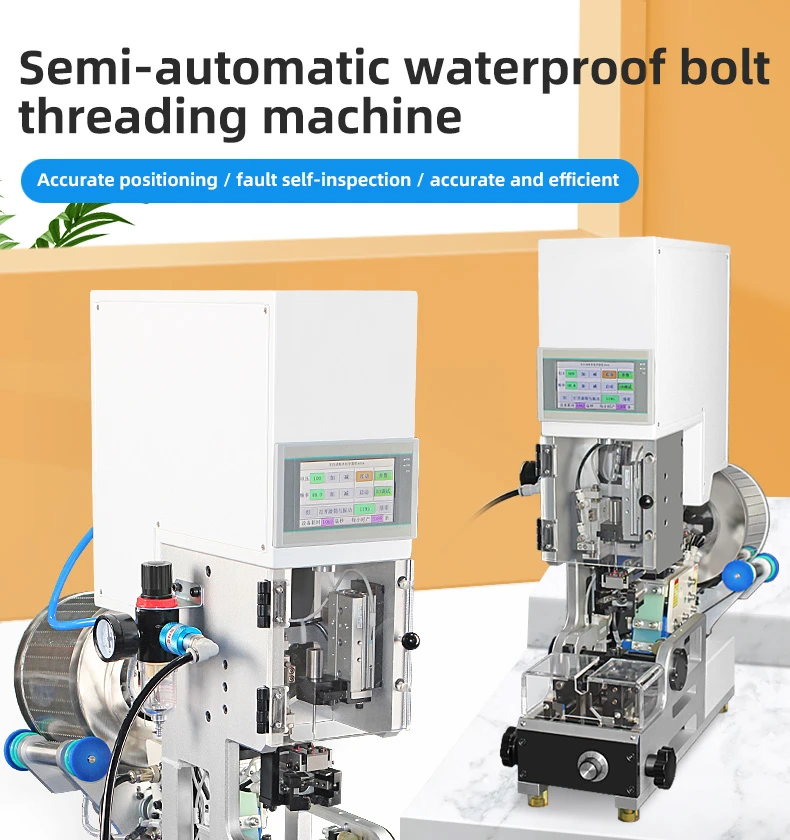

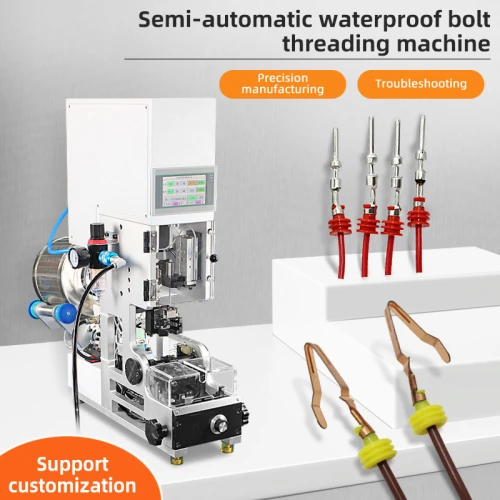

Semi-auto waterproof bolt threading machine

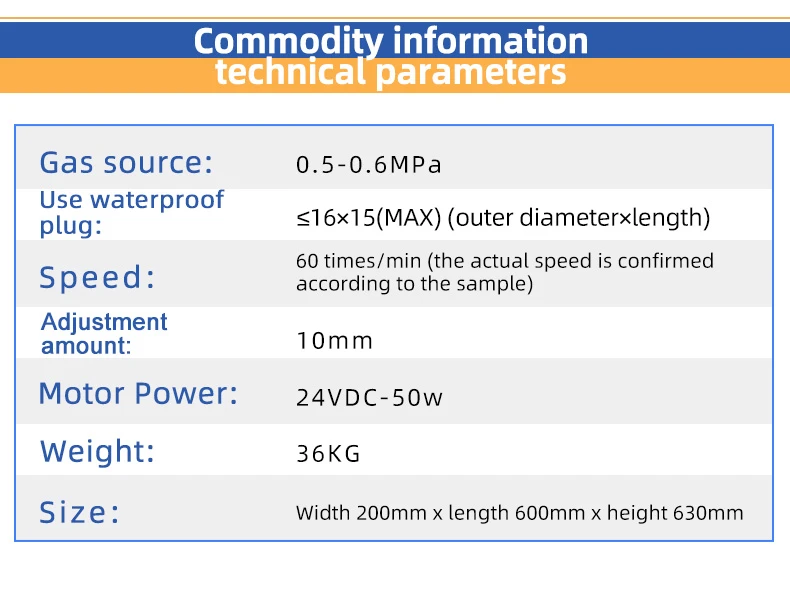

Air source:0.5-0.6MPa

Use waterproof plug:≤16x15(MAX)(outer diameterxlength)

Speed:60 times/min (the actual speed is confirmedaccording to the sample)

Adjustment amount:10mm

Motor Power:24VDC-50w

Weight:36KG

Size:Width 200mm xlength 600mm x height 630mm

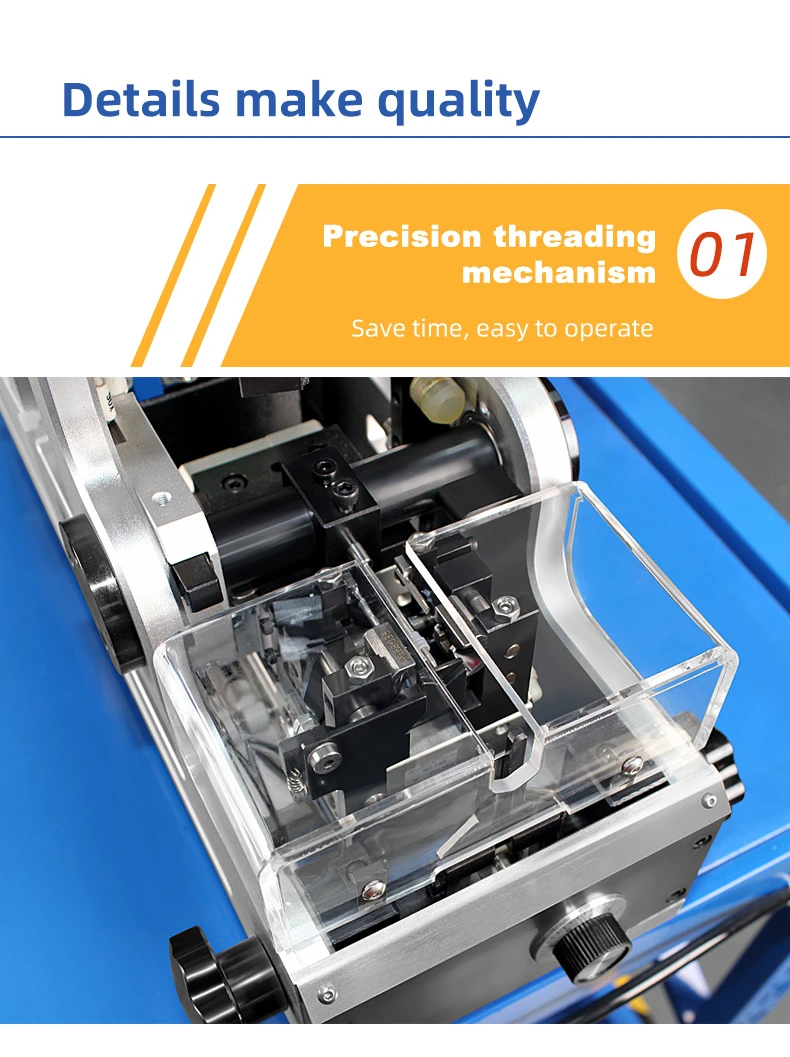

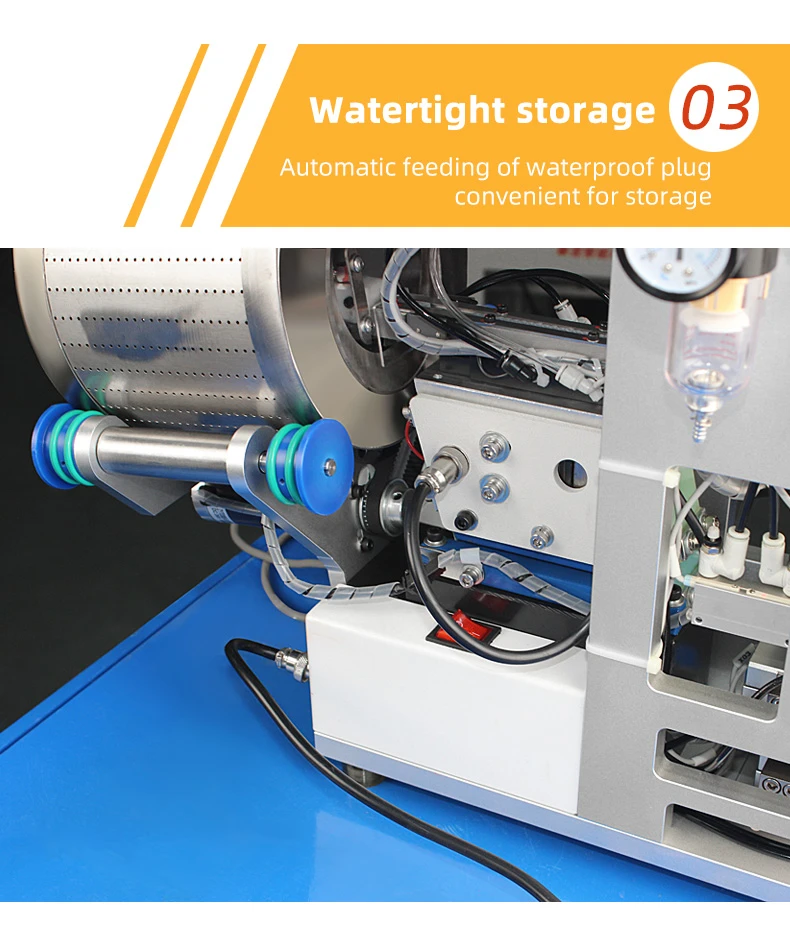

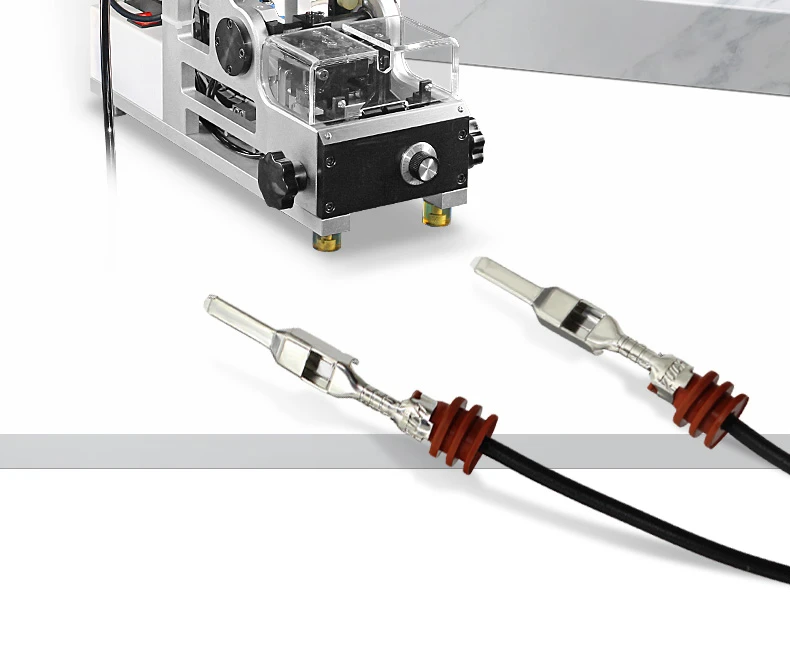

This machine is a semi-automatic waterproof plugging machine for automatic threading and waterproofing of stripped wires. The waterproof plugs have a good consistency of penetration depth, which greatly improves the wear rate of the waterproof plugs and increases productivity. The waterproof plugs are automatically fed into place by means of a drum and the threads are manually placed in the working position. The puncturing of the waterproof plugs is done automatically by depressing a foot switch. For waterproof plugs of the same size, it is only necessary to replace the corresponding rail.

Features

This machine is a semi-automatic waterproof plugging machine, which is used forautomatic threading and waterproofing of stripped wires.The water plug has good penetration depth consistency, which greatly improvesthe wearing speed of the waterproof plug and improvesHigh production efficiency.The waterproof plug is automatically fed into place through the roller, and thethread is placed in the working position manuallyStep on the foot switch to automatically complete the action of piercing the water.proof plug.For waterproof plugs of the same size, only the corresponding track needs to bereplaced.
