Model
TR-03H

Item specifics

Power
AC220V/50HZ,
Application
Automatic Number Tube Stripping Machine
Feature
Stable Performance
Warranty
1year
Contact
Lily 0086-13715588365

Review

Description

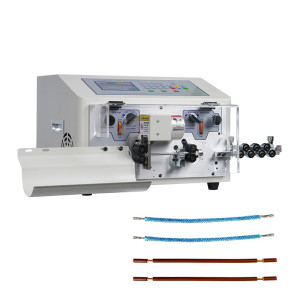

TR-03H Fully Automatic Number Tube Cutting Machine
Product name:TR-03H automatic number tube stripping machine
Operating Voltage:220VAC
Software operatingenvironment:Windows XP,Windows 7,Windows 10
Connection method:SUB and RS232 serial port
Input:PC software direct input or Excel import
Applicable line type:1.0mm2,1.5mm2,2.5mm2 and4.0mm2 Bv,BVR wire
Sleeve Length:20mm ,40mm,4mm diameter or 5mm diameter
Casing direction:Positive,positive and negative,positive andnegative,positive and negative
Casing options:Casing or not
Cutting length:250mm-200mm
Stripping function:When there is no crimping ear, the end is half-stripped, and the stripping length and stripping accuracy can be adjusted by software
TR-03H Fully Automatic Number Tube Cutting Machine
Manufacturers of high and low voltage complete sets of equipment and electrical control cabi-nets need to manually complete functions such as cutting, stripping, printing number tubes, andset number tubes during the installation of the secondary line of the electrical cabinet. The work.ers have high labor intensity, low efficiency, and are prone to errors. , the wire is easy to waste.As shown in the figure, it integrates automatic wire unwinding, wire cutting, wire stripping, print.Ing number tube, set number tube, and tinished product collection, replacing traditional manualabor, greatly reducing labor costs and improving enterprise production efficiency.
The secondary line intelligent opening system controls the secondary line intelligent openingequipment through PC software. The opening information can be saved as an Excel file formatWhen you need to open the same information again next time, you only need to open the savedfile and print again, which greatly improves Repeated production efficiency also promotes thestandardization and refinement of enterprise standard cabinets, reduces the waste of secondarywires, and reduces enterprise costs.
